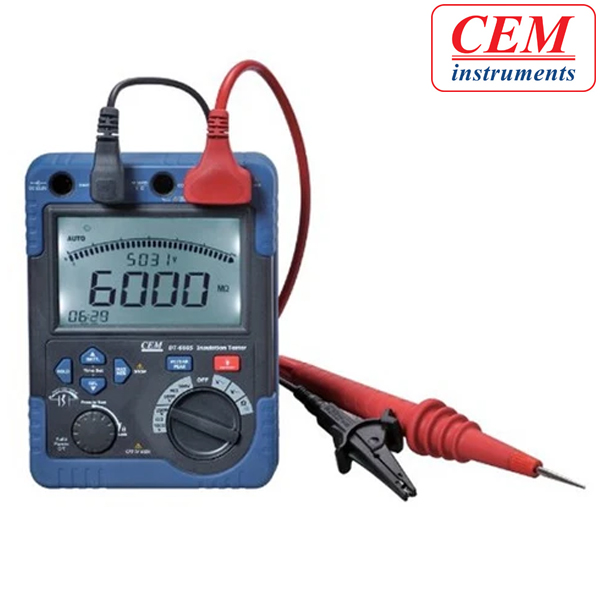

CEM DT-6605 Instulation resistance tester

Rp 3.600.000

Penguji Isolasi Tegangan Tinggi
Pengukuran rentang lebar dari 500V hingga 5000V dan hingga 60GΩ.
Besar 6000 hitungan tampilan digital dengan bargraph dan lampu latar.
Pengukuran indeks polarisasi (PI).
Rentang otomatis & fungsi pengukuran Timer.
Indikasi tegangan output dan tegangan discharge.
Fungsi pelepasan otomatis dan fungsi peringatan keluaran tegangan.
Matikan otomatis dan periksa baterai.
MAX/MIN, PEAK, Nilai relatif & Fungsi penyimpanan data untuk pengukuran tegangan DC/AC
Standar keamanan IEC61010-1 CAT IV 600V

Instulation resistance tester CEM DT-6605

Function	Insulation resistance				Voltage	Resistance
Range	500V	1000V	2500V	5000V	AC/DCV
Measuringrange (Auto ranging)	0~6.000MΩ 6~60.00MΩ 60~600.0MΩ 600~6000MΩ	0~6.000MΩ 6~60.00MΩ 60~600.0MΩ 600~6000MΩ	0~60.00MΩ 60~600.0MΩ 0.6~6.000GΩ 6~60.00GΩ	60~60.00MΩ 60~600.0MΩ 0.6~6.000GΩ 6~60.00GΩ	0~600.0V (50~1kHz)	0~600.0Ω 600~6000Ω
Accuracy	±5%rdg ±3dgt ; ±20% (>6GΩ or more)				±1.5%rdg ±5dgt	±1.5%rdg ±10dgt
Short Circuit Current	1.3mA approx				–
Rated test Current (at load Resistance)	1mA-1.2mA 0.5MΩ	1mA-1.2mA 1MΩ	1mA-1.2mA 2.5MΩ	1mA-1.2mA 5MΩ	–
Open circuit voltage	500VDC/+20%-0%	1000VDC/+20%-0%	2500VDC/+20%-0%	5000VDC/+20%-0%	–
Continuity check	Buzzer sounds at 50Ω
Display	6000 Counts
Current consumption	About 1000mA (During measurement)				25mA approx.
Withstand Voltage	5320V AC for 5 seconds
Safety standard	IEC 61010-1 CAT IV 600V Pollution Degree 2
Power supply	DC12V : R14 x 8
Dimensions	198 ( L) x 148 (W) x 86 ( D) mm
Weight	1438g approx.
Accessories	Test leads, Instruction Manual and 120V/250V AC adaptor
