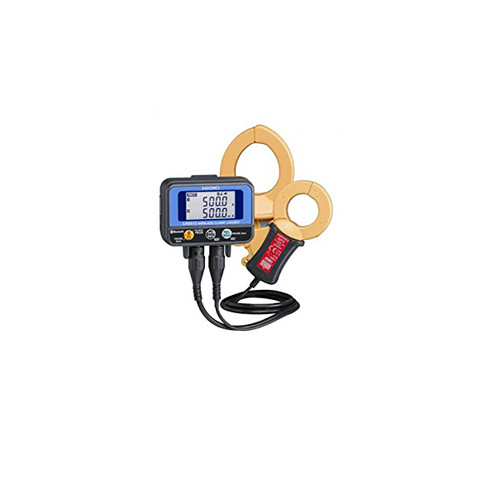

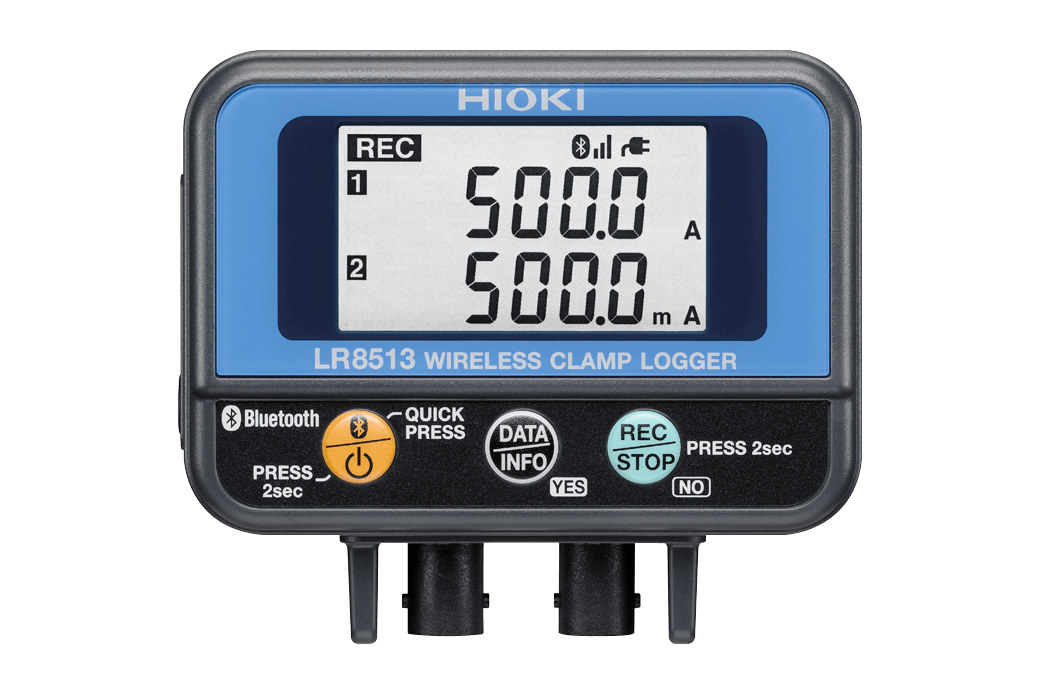

Hioki LR 8513 Wireless Clamp Logger

Brand: Hioki

Hioki LR 8513 Wireless Clamp Logger adalah, 2–channel AC / DC modul input arus nirkabel yang memanfaatkan teknologi Bluetooth® baik mengirim data diukur dengan Hioki LR8410 Wireless Logging Station atau ke Android (TM) tablet. Hioki Memory HiLoggers adalah penebang data berkecepatan tinggi untuk merekam beberapa saluran tegangan, suhu, ketahanan atau kelembaban sinyal, beberapa model memberikan isolasi lengkap antara saluran dan resistance suara yang kuat.

Features Hioki LR 8513 Wireless Clamp Logger

Ukur arus beban AC dan DC dan arus bocor AC
Pilih dari delapan sensor saat ini
Tempatkan di dalam panel distribusi, tutup penutup, dan pantau nilai terukur dari luar
Ukur daya dengan mudah—cukup atur voltase dan faktor daya
Model dua saluran yang ringkas cocok di tempat yang tidak dimiliki perangkat lain
Data pengukuran dikirim ke Hioki LR8410-20 menggunakan teknologi nirkabel Bluetooth®
Data pengukuran disimpan bahkan ketika komunikasi terputus
Daya tiga arah (adaptor AC, baterai alkaline AA, atau catu daya eksternal 5 hingga 13,5 V)
Instrumen dapat menyimpan 500.000 titik data per saluran

Belanja online Insulation Tester hanya di Darma Sakti Group dengan kualitas terbaik, harga bersaing, Gratis pengiriman wilayah Jakarta dan sekitarnya. Beli sekarang hanya di toko online terpercaya.

Jual Hioki LR 8513 Wireless Clamp Logger dengan harga murah dan garansi resmi dari distributor. Dapatkan produk terbaik dengan spesifikasi lengkap. Produk berkualitas tinggi dengan sertifikat kalibrasi (Certificate of Calibration) dari pabrik dan original/asli. Barang yang kami jual sudah melalui Quality Control (QC) dan siap dikirim.

Pengiriman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.

Specifications Hioki LR 8513 Wireless Clamp Logger

FUNCTIONALITY	[Used as standalone product (Data collected manually) ] Windows PC or Windows tablet (CD-R with software included) Android smartphone or Android tablet terminal (Software can be downloaded free of charge from Google Play.) *Communication range varies with the performance of the computer or tablet (up to a line-of-sight distance of roughly 30 m) [Used as logging module (Real-time measurement) ] Device can be used as an LR8410 logging module to record and display data in real time and to control up to 7 units, Communication distance: 30 m
NUMBER OF CHANNELS	2ch (common GND)
MEASUREMENT ITEMS	AC load current, DC load current, AC leak current (using current sensor)
EFFECTIVE VALUE CALCULATION	Software calculates the true RMS value
MEASUREMENT RANGE	500.0 mA to 2000 A AC, 10.00 A to 2000 A DC (By current sensor) *Current and leak current that occur intermittently cannot be measured.
MEASUREMENT ACCURACY	±0.5% rdg.±5 dgt. (DC, AC 50/60 Hz) *Add the sensor’s accuracy when the current sensor is connected
DISPLAY ITEMS	Measurement value, date, time, number of recorded data, maximum value, minimum value, and average value
FUNCTIONS	Alarm, Scaling, Recording operation hold function, Erroneous operation prevention, Comment recording function, Power saving function, Authentication function, Free run
RECORDING	[Capacity] 500,000 data items for each channel [Mode] Instantaneous value, average value, maximum value [Interval] 0.5 to 30 sec, 1 to 60 min, 14 selections
POWER SOURCE	AC Adapter Z2003 (100 to 240 V AC, 50/60 Hz), AA alkaline batteries (LR6) ×2, External power 5 to 13.5 V DC (can also be supplied from USB bus power, with a conversion cable)
CONTINUOUS OPERATING TIME ([CAPACITY] 500,000 DATA ITEMS FOR EACH CHANNEL) (23˚C)	3 months (Recording interval of 1 min, Bluetooth® OFF), 10 days (Recording interval of 1 sec, Bluetooth® ON), 5 days (Recording interval of 0.5 sec, during real-time measurement with the LR8410)
DIMENSIONS AND MASS	85 mm (3.35 in) W × 75 mm (2.95 in) H × 38 mm (1.50 in) D, 130 g (4.6 oz) (excluding the battery)
ACCESSORIES	CD-R ×1 (Instruction Manual, Logger Utility, Wireless Logger Collector), Measurement Guide ×1, Caution for Using Radio Waves × 1, AA alkaline batteries (LR6) ×2
