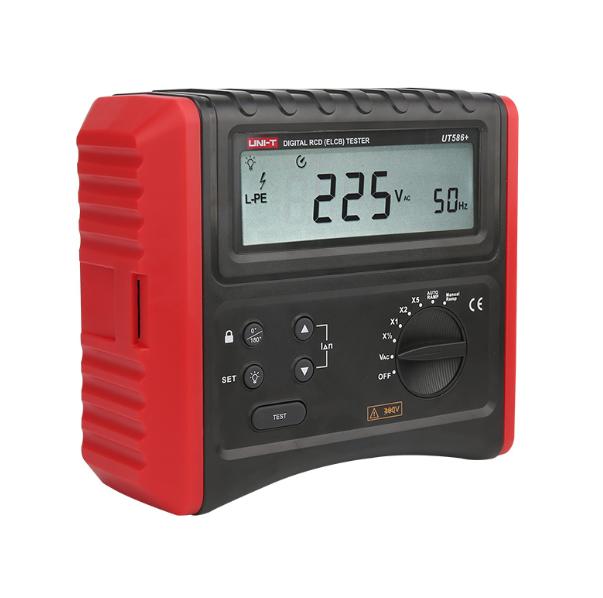

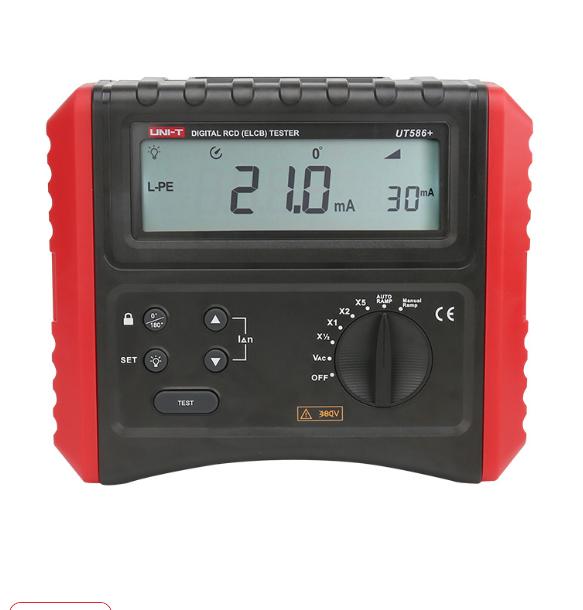

UNI-T UT586+ Digital RCD Tester

Rp 12.000.000

Brand: UNI-T

Selain itu, perangkat ini memiliki kemampuan pengukuran tegangan serta pemeriksaan koneksi instalasi, sehingga membantu teknisi dalam mendeteksi kesalahan wiring atau kondisi listrik yang tidak normal. Dengan standar keselamatan CAT III 600V, alat ini aman digunakan untuk pengujian di lingkungan instalasi listrik menengah.

UNI-T UT586+ Digital RCD Tester adalah alat ukur listrik yang digunakan untuk menguji kinerja perangkat proteksi kebocoran arus (RCD/ELCB) pada instalasi listrik. Alat ini mampu mengukur arus trip (trigger current) dan waktu trip (trip time) untuk memastikan sistem proteksi bekerja dengan baik dan aman.

UT586+ dirancang untuk pengujian pada sistem listrik satu fasa maupun tiga fasa, sehingga banyak digunakan dalam instalasi listrik rumah, industri, maupun sektor energi. Alat ini bekerja dengan memberikan arus uji tertentu ke RCD dan menganalisis respons pemutusannya.

FITUR UNI-T UT586+

Uji arus trip & waktu trip RCD → mengukur arus pemicu dan waktu pemutusan secara akurat
Multi range & auto range → fleksibel untuk berbagai nilai arus uji
Pilihan sudut fase (0° / 180°) → analisis respons RCD lebih lengkap
AUTO RAMP test → menguji arus dan waktu trip secara bersamaan
Pengukuran tegangan & frekuensi (30–480V) → fungsi tambahan untuk pengecekan instalasi
Pemeriksaan wiring (koneksi instalasi) → mendeteksi kesalahan sambungan listrik
Deteksi over-temperature → perlindungan alat saat suhu berlebih
Layar dengan backlight → mudah dibaca di kondisi gelap
Auto power off & indikator baterai lemah → hemat energi dan praktis
Standar keamanan CAT III 600V → aman untuk penggunaan instalasi listrik
Mendukung sistem 1 fasa & 3 fasa → aplikasi luas di berbagai instalasi

SPESIFIKASI UNI-T UT586+

Specification
		Rate trigger current	Fault trigger time	Accuracy (current)	Accuracy (time)
RCD test function	X1/2	10/20/30/100/300/500mA/1000mA	0~2000mS @ 0°/180°	-10%~0%”	±0.6%rdg±4dgt
	X1	10/20/30/100/300mA	0~2000mS @ 0°/180°	0%~+10%	±0.6%rdg±4dgt
		500mA/1000mA	0~200mS @ 0°/180°	0%~+10%	±0.6%rdg±4dgt
	X2	10/20/30/100/200/300/500mA	0~200mS @ 0°/180°	0%~+10%	±0.6%rdg±4dgt
	X5	10/20/30/100/200mA	0~200mS @ 0°/180°	0%~+10%	±0.6%rdg±4dgt
	AUTO	10/20/30/100/300/500mA/1000mA	300ms @ 15 0°/180°	-10%~+10%	±0.6%rdg±4dgt
	Manual	10/20/30/100/300/500mA/1000mA	300ms @ 0°/180°	-10%~+10%	±0.6%rdg±4dgt
Working voltage	50/60Hz	100V~440V (Note: If > 450V, it will issue an alarm and stop the RCD test)			-15%~+10%
Voltage test	Voltage range	30~480V (Resolution: 1V)		45~65Hz	±3%rdg±3dgt
Voltage test	L-PE	yes, display the L-PE input voltage; range: 30V~480V; No input and low voltage: “0V”; if less than 30V: <30V; if more than 4800v: >480V
	Frequency	yes, display the L-PE input frequency; when it is “volts”, press “VOLT/FREQ” key to switch “Voltage/Frequency”
Wiring check		If there is no wiring, an abnormal power supply, or no electricity flowing, the LCD will display “L-PE” and flash.
Phase angle selection		You can choose to initiate the test from the positive (0°) or the negative (180°) half-cycle. Press the “0°/180°” button to toggle phase.
Lock test		With the power disconnected, press and hold the “0°/180°” button to activate the lock test function. Simply connect the test leads correctly to the test points, and the test will run automatically.
AUTO RAMP test		You can test the trip action current and action time simultaneously.
RCD test exceeds limit prompt		When the trip action time exceeds the maximum test duration and trips.
Over-temperature detection		If the internal components of the device become too hot, the LCD will display an over-temperature symbol, and the device will automatically disable RCD testing.

Backlight		Yes, can be turn on/off
Low battery indication		yes
Auto powwer off		After 5 minutes of no operation, it will automatically shut down.
Working environment		0℃~40℃
Storage environment		-20℃~60℃
Power		8 * 1.5V AA
Polution level		2
Safety rating		IEC61010-031; IEC61557-1,6; CAT III 600V
General Features
Product color		Red + gray
Product weight		725g
Product dimension		16111768mm

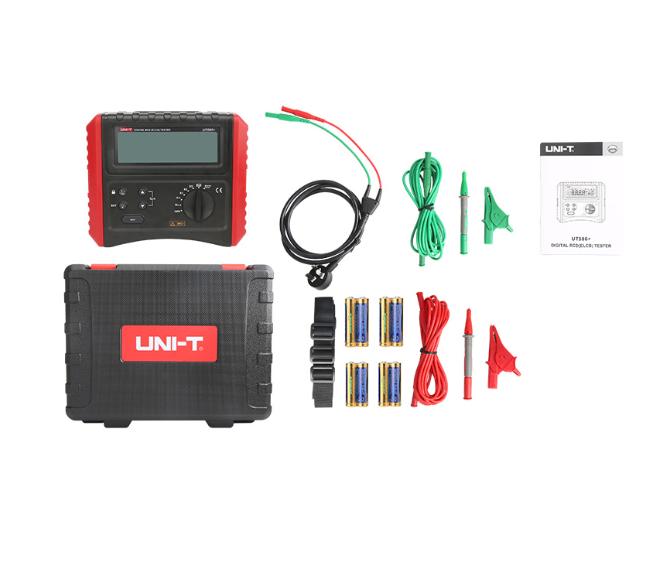

Standard accessories		User manual 1pcs; Test lead 1 set(red/green); Alligator clips 2pcs(red/green); Test probe 2pcs(red/green); 1.5V AA * 8pcs; Test lead to EU plug 1pcs
Standard package		Carton box: 4pcs
Package dimension		585×380×335mm
