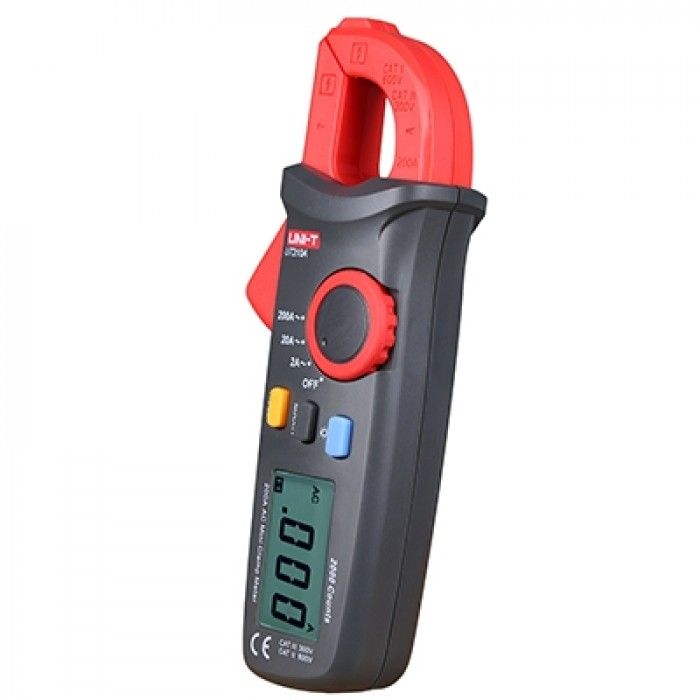

Mini Clamp Ampere Meter Ac-Dc UNI-T UT210A

Rp 1.050.000

Brand: UNI-T

Mini clamp meter seri UT210 dirancang untuk bekerja dengan baik di lingkungan dengan ruang terbatas. Ini adalah alat penting untuk perawatan peralatan mekanik dan listrik, pemasangan peralatan rumah tangga, dan tugas teknisi listrik.

FITUR UNI-T UT210A

Jumlah Layar: 2000
Jangkauan Otomatis: √
Kapasitas Rahang: 17mm
Penyimpanan Data: √
Lampu Latar LCD: √
Matikan Daya Otomatis: Sekitar 15 Menit
Indikasi Baterai Lemah: ≤2,5V
Perlindungan Input: √

SPESIFIKASI UNI-T UT210A

Specifications	Range	UT210A	UT210B	UT210C	UT210D	UT210E
AC current (A)	200A	±(2.5%+20)	±(2.5%+20)	±(2%+10)	±(2.5%+8)
AC current (A)	100A					±(2.5%+5)
DC current (A)	200A				±(2%+3)
DC current (A)	100A					±(2%+3)
AC voltage (V)	600V			±(1%+3)	±(1%+3)	±(1%+3)
DC voltage (V)	600V			±(0.7%+3)	±(0.7%+3)	±(0.7%+3)
Resistance (Ω)	20MΩ			±(1%+2)	±(1%+2)	±(1%+2)
Frequency (Hz)	60kHz				±(0.1%+4)
Capacitance (F)	20mF			±(4%+5)	±(4%+5)	±(4%+5)
Temperature	-40~1000℃			±(1%+3)	±(1%+3)
Temperature	-40~1832℉			±(1.5%+5)	±(1.5%+5)
Features
Display count		2000	2000	2000	2000	2000
Continuity buzzer		√	√	√	√	√
Auto range				√	√	√
Jaw opening		16mm	16mm	17mm	17mm	17mm
Diode test	Around 3.0V			√	√	√
General Characteristics
Power	1.5V battery (R03) x 2
Display	39.3mm x 26.5mm
Product color	Red and grey
Product net weight	UT210A/B: 150g (batteries included); UT210C/D/E: 170g
Product size	UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm

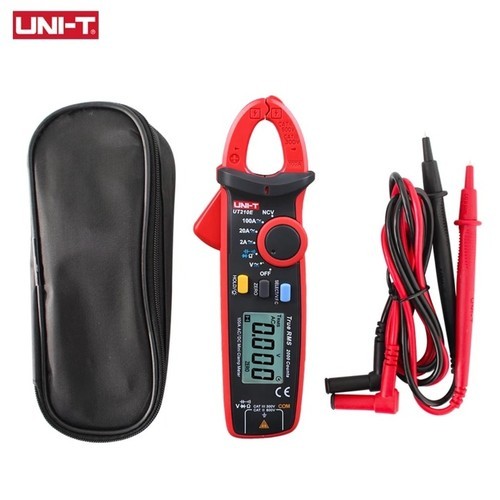

Standard accessories	Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D)
Standard individual packing	Gift box, English manual, carrying bag (UT210C/UT210D/UT210E)
Standard quantity per carton	40pcs
Standard carton measurement	UT210A/B: 345mm x 245mm x 300mm; UT210C/D/E: 385mm x 345mm x 305mm
Standard carton gross weight	UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg
