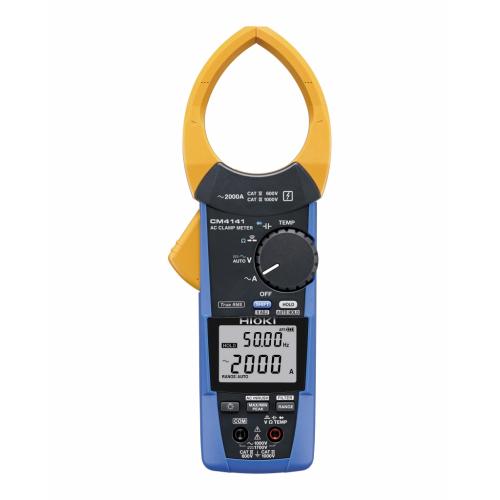

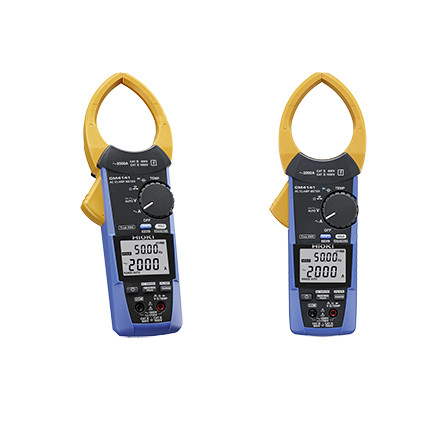

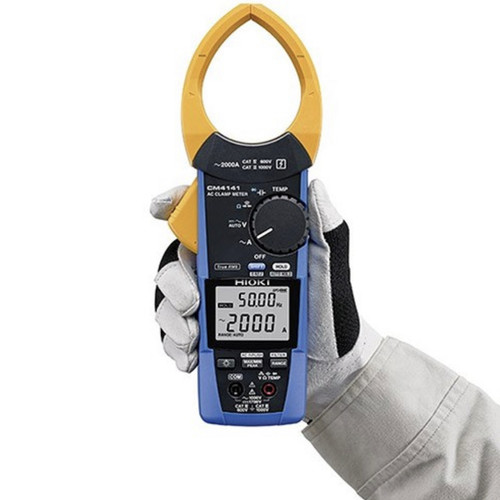

HIOKI CM4141 AC Clamp Meter

Brand: Hioki

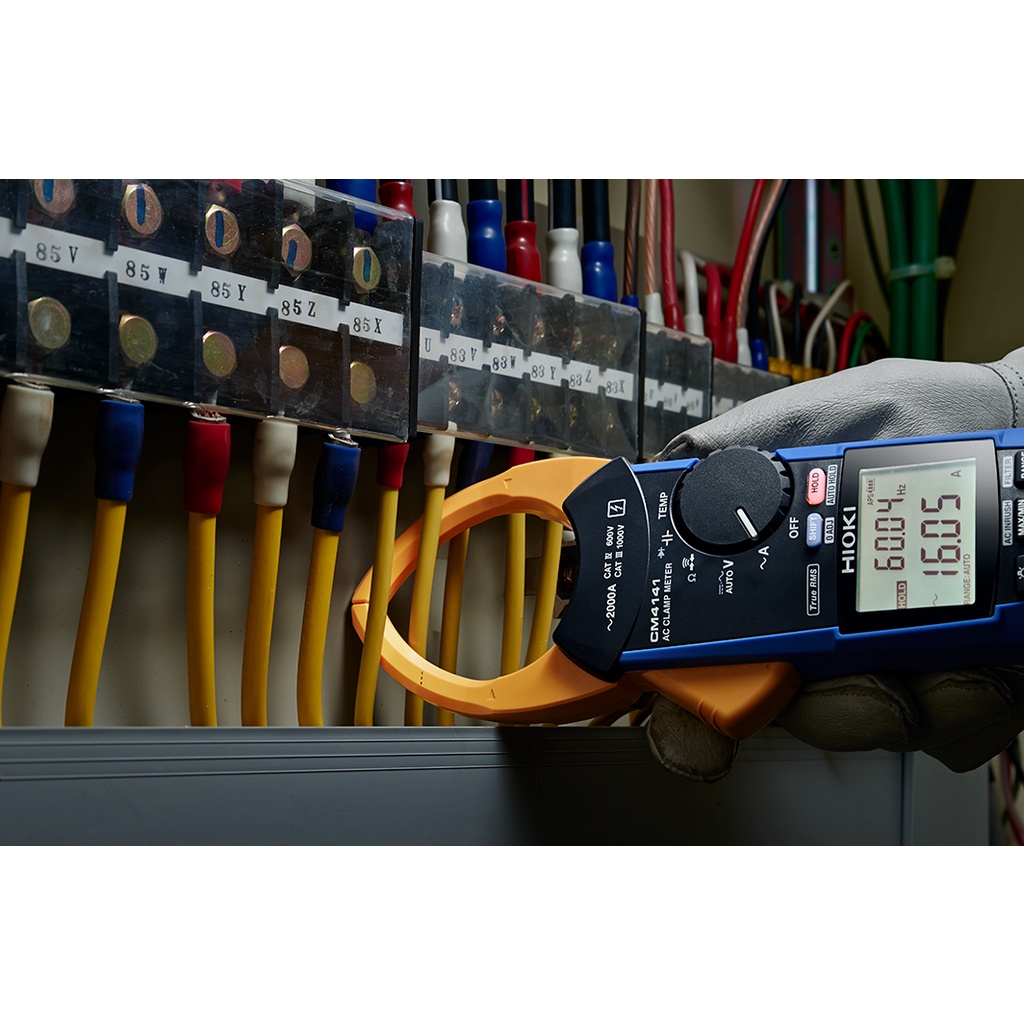

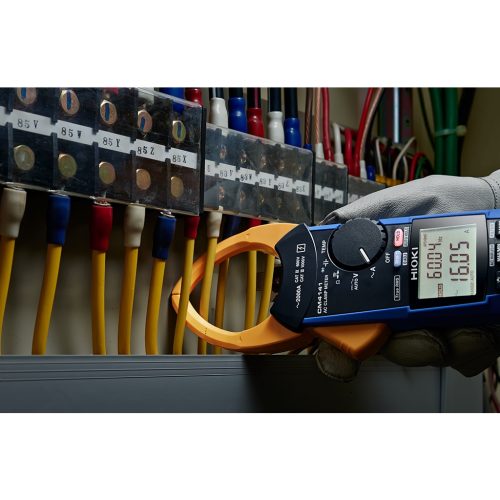

CM4141 adalah penjepit meteran True RMS AC 2000A yang memiliki rahang ramping yang dirancang unik yang memungkinkan Anda dengan mudah masuk ke celah sempit antara kabel dalam kotak distribusi listrik yang penuh sesak tanpa takut merusak kabel atau meter penjepit.

FITUR

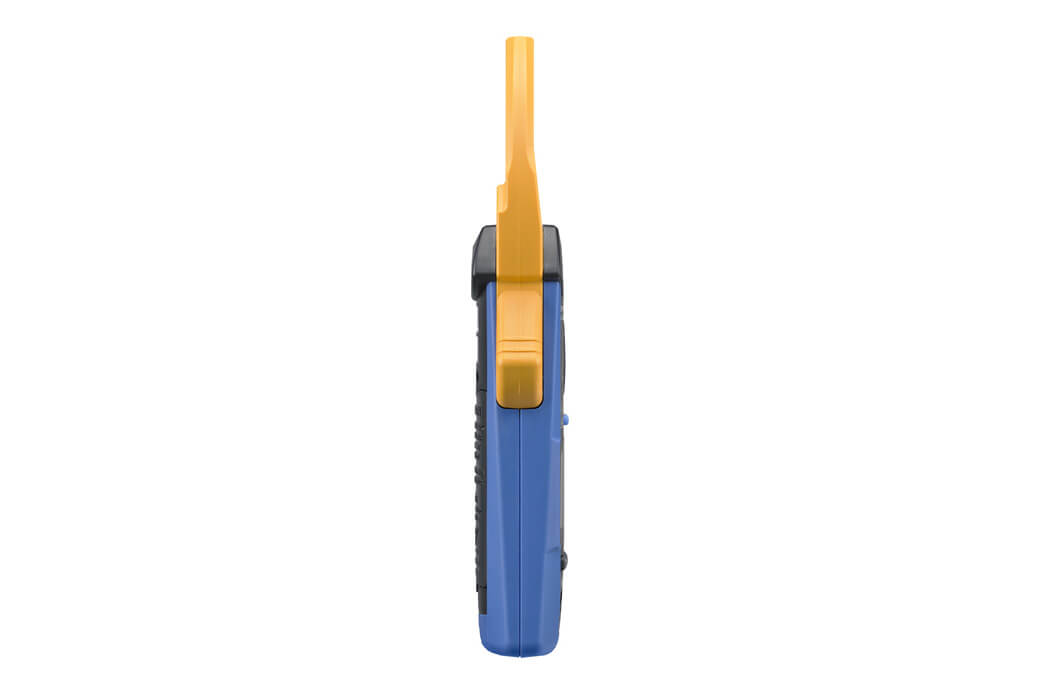

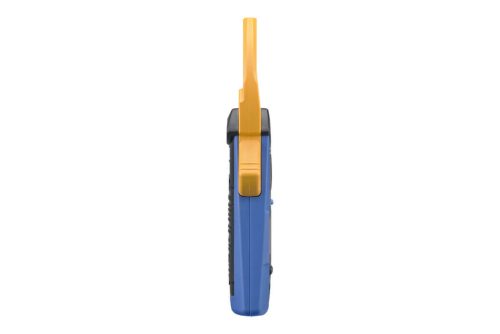

Mudah masuk ke ruang sempit di antara kabel berkat sensor tipis dengan rentang penampang minimum 11 mm
Mengukur hingga 2000 A AC
AC A, AC dan DC V, DC+AC V, resistansi, frekuensi, suhu, dan lainnya
Kisaran suhu pengoperasian -25 °C hingga 65 °C yang diperluas

Belanja online Clamp Meter hanya di Darma Sakti Group dengan kualitas terbaik, harga bersaing, Gratis pengiriman wilayah Jakarta dan sekitarnya. Beli sekarang hanya di toko online terpercaya.

Jual Clamp Meter Hioki Cm 4141 AC dengan harga murah dan garansi resmi dari distributor. Dapatkan produk terbaik dengan spesifikasi lengkap. Produk berkualitas tinggi dengan sertifikat kalibrasi (Certificate of Calibration) dari pabrik dan original/asli. Barang yang kami jual sudah melalui Quality Control (QC) dan siap dikirim.

Pengiriman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.

SPESIFIKASI

Dimensi Produk	6.5 x 24.7 x 3.5 cm
Lain-lain	Temperature (K): -40.0 to 400.0 ˚C, Basic accuracy: ±0.5% rdg. ±3.0 ˚C + temperature probe accuracy Dustproof, waterproof: IP20 (Current measurement of voltage or hazardous live conductors under completely dry condition) IP50 (When measuring or storing the resistance of a completely dry state or the current of an insulated conductor), However, dustproof and waterproof design equivalent to IP54 only on the handheld part and in a non-measurement state. Power supply: LR03 Alkaline battery ×2, Continuous use: 48 hr (Backlight OFF) Core jaw diameter: φ55 mm (2.17 in), Jaw dimension: 82 mm (3.23 in) W × 11 mm (0.43 in) D (D dimension is a range value of 44 mm (1.73 in) from the tip of the jaw)
Fitur	AC Current range: 60.00 A to 2000 A, 3 ranges (45 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±1.5% rdg. ±0.08 A Crest factor: For the 60.00 A range: 2.5 (greater than 50.00 A and less than or equal to 60.00 A) to 2000 A range: 1.5 (2000 A or less) DC Voltage range: 600.0 mV to 1500 V (*1), 5 ranges, Basic accuracy: ±0.5% rdg. ±0.5 mV (at 600 mV) AC Voltage range: 6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±0.9% rdg. 0.003 V (at 6 V) DC+AC Voltage range: 6.000 V to 1000 V, 4 ranges, Basic accuracy DC, 45-66 Hz: ±1.0% rdg. ±0.013 V (at 6 V) Resistance range: 600.0 Ω to 600.0 kΩ, 4 ranges, Basic accuracy: ±0.7% rdg. ±0.5 Ω (at 600 Ω) Electrostatic capacity range: 1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±0.005 μF (at 1 μF) Frequency range: Voltage: 9.999 Hz to 999.9 Hz 3 ranges, Current: 99.99 Hz to 999.9 Hz 2 ranges, Basic accuracy: ±0.1% rdg. ±0.01 Hz (at 99.99 Hz) Continuity check Diode check Automatic AC/ DC detection (Voltage check only) Max/ Min/ AVG/ Peak waveform MAX/ Peak waveform MIN value display Low-pass filter function Display value hold Backlight Auto power save Buzzer sound Zero-adjustment
