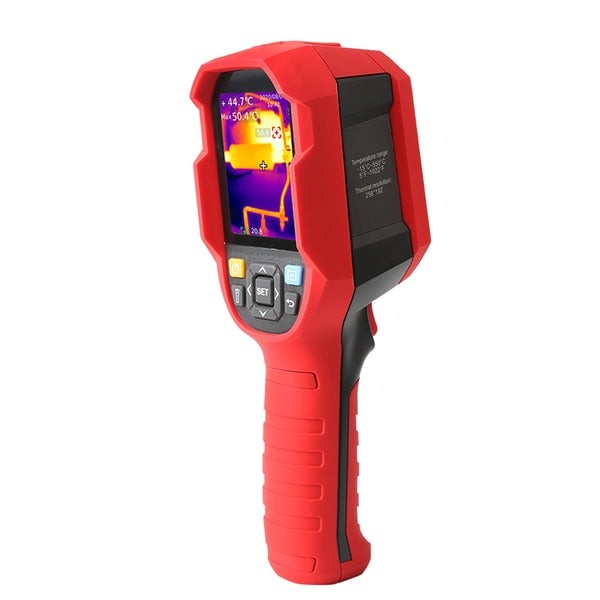

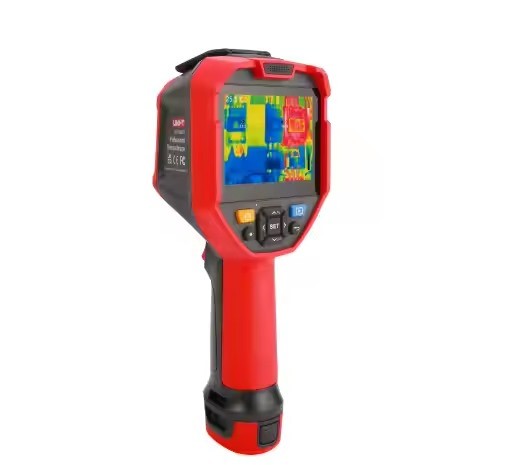

Industrial Infrared Thermal Imager UNI-T UTi260V

Industrial Infrared Thermal Imager UNI-T UTi260V

Rp 18.000.000

Brand: UNI-T

Pengukuran suhu titik tengah/pelacakan otomatis suhu tinggi dan rendah/objek analisis kustom/fungsi batas suhu kustom isoterm lebih kondusif untuk menemukan anomali atau bagian yang ingin Anda amati dengan cepat. Selain fungsi yang kuat pada tubuh, ia juga dilengkapi dengan fotografi, perekaman video, aplikasi seluler, perangkat lunak PC untuk transmisi gambar waktu nyata dan analisis pascagambar serta laporan analisis keluaran pemrosesan.

FITUR UNI-T UTi260V

Resolusi inframerah: 256×192
Resolusi layar 2,640×480, layar sentuh LCD 3,5″.
Rentang pengukuran suhu: -20 ~ 550 ℃
Dilengkapi dengan T-MIX algoritma fusi gambar yang dikembangkan sendiri
Pengukur jarak laser 5.30m
Mendukung penyimpanan foto/video
Perangkat lunak PC/aplikasi seluler (Android dan iOS)
mode gambar: pencitraan termal, cahaya terang, perpaduan Cahaya T/ganda, gambar dalam gambar
juta lensa lampu terang piksel
Fungsi istermal Manual/otomatis
Menyesuaikan dan menambahkan analisis objek pengukuran suhu untuk pengukuran suhu
penerangan LED
Tingkat perlindungan IP54/2 meter tahan jatuh

SPESIFIKASI UNI-T UTi260V

model	UTi260V	model	UTi260V
Detector type	Uncooled infrared detector	Video Format	MP4
Infrared resolution	256 x 192	Laser indication	√ (Class 2 laser, red)
Infrared response band	8-14um	laser ranging	0.3-30m (Class 2 laser, red)
pixel size	twelve μ M	storage	External Storage Micro32GB SD Card
Frame rate	25Hz	data interface	Type-C USB
Thermal flexibility/NETD	＜ 50mk	QR code scanning	√
Lens size	9.3mm	photograph	√
focal length	3.2mm	Video recording	√
aperture	F1.1	Text Annotation	√
Focusing mode	Fixed focus	Voice annotation	√
Field of view angle	56.0 ° Hx42.0 ° V	Illuminating lamp	√
Spatial resolution/IFOV	3.8mrad	Screen brightness adjustment	√
Measuring range	0 ℃~550 ℃/-20 ℃~150 ℃	language	Simplified Chinese, English
Temperature measurement accuracy	± 2 ℃/± 2% (take the maximum value, 0 ℃~550 ℃, room temperature 25 ℃)	Automatic shutdown	Closed, 5min, 10min, 20min, 30min, 45min, 60min, 90min
Temperature measurement resolution	0.1 ℃	Mobile APP	IOS, Android
Suggested temperature measurement distance	0.25m	PC analysis software/PC screen projection	√
Temperature measurement unit	° C/° F/K	Battery type	3.7V, 5200mAh replaceable battery
Temperature measurement display	3 temperature measurement points (center point, highest temperature, lowest temperature)	Charging system	Type-C direct charging/battery pack independent charging
Temperature analysis	5 points, 3 circles, 3 rectangles, 1 line	Charging duration	<5h
isotherm	Manual/Automatic	working temperature	-10 ℃~50 ℃
High and low temperature tracking	√	Storage temperature	-20 ℃~60 ℃
High and low temperature alarm	Screen icon alarm, lighting alarm, sound alarm	Working humidity	10% to 95% RH, non condensing
Temperature measurement parameters	Emissivity, reflection temperature, ambient temperature, distance, relative humidity	Protection level	IP54
Display screen/display resolution	3.5 “LCD touch screen/640 × four hundred and eighty	Fall protection	2m
Visible light resolution	5 million pixels	authentication	CE, FCC, UKCA, ROHS
Color palette	Red heat, high contrast rainbow, rainbow, lava, iron red, black heat, white heat	Tripod installation	UNC ¼”- twenty
Image mode	Thermal imaging, visible light, T-Mix/dual light fusion, picture in picture	Dimensions (length x width x height)	620 x 98 x 96.5mm
Number doubling	1X, 2X, 4X	weight	665g

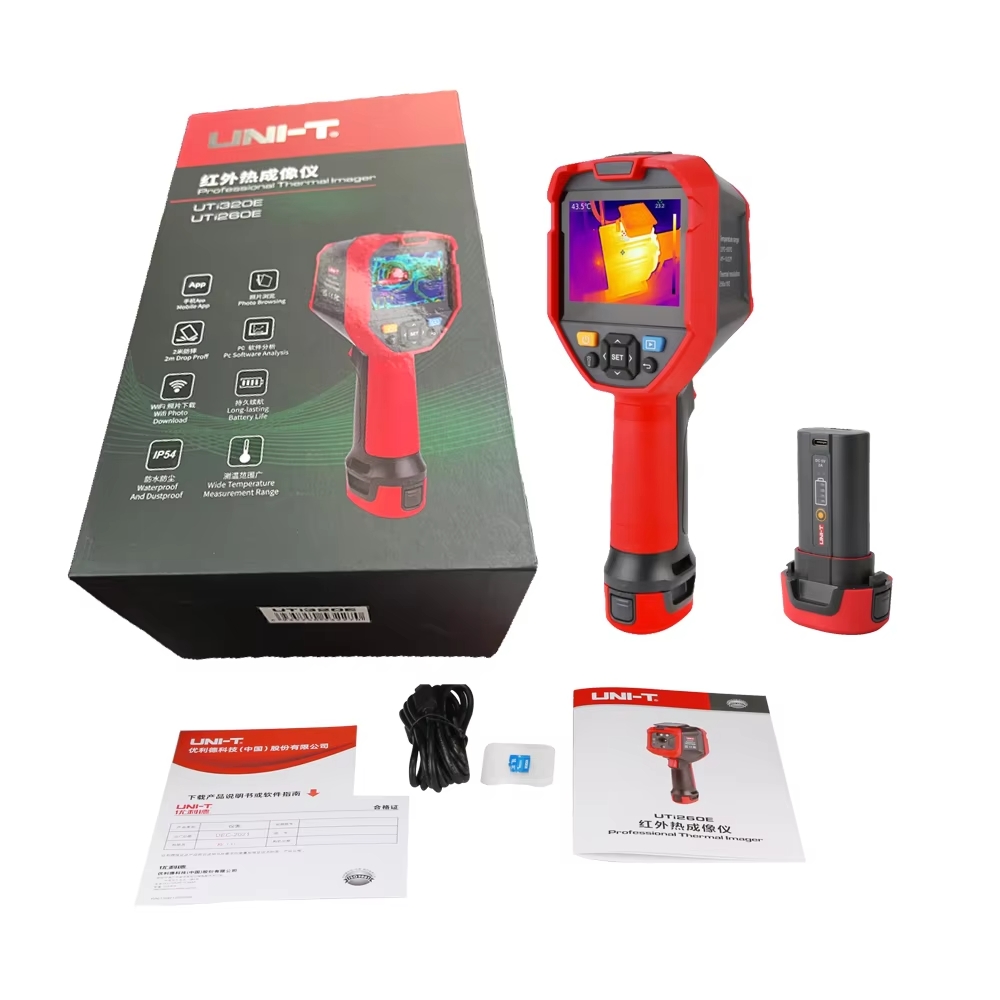

Image Format	JPG	Product standard configuration	USB cable, Micro SD card, manual, high-strength impact resistant portable case
