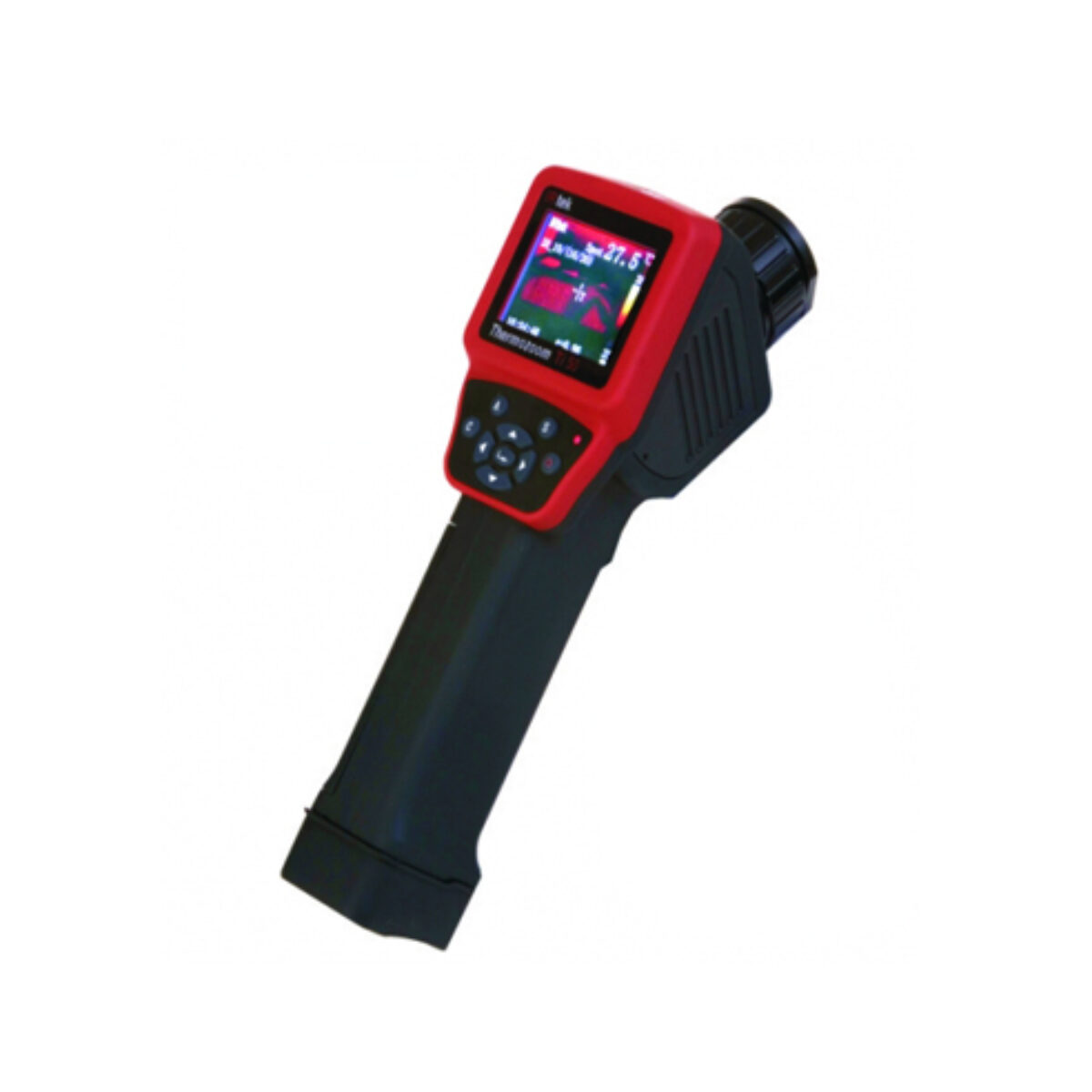

Irtek Ti50 Thermal Imager

Brand: Irtek

Irtek Ti50 adalah alat industri yang berfungsi untuk menangkap dan menghasilkan gambar suatu objek dengan menggunakan radiasi inframerah, yang dipancarkan dari objek dalam proses pengukuran.

Belanja online Thermal Camera hanya di Darma Sakti Group dengan kualitas terbaik, harga bersaing, Gratis pengiriman wilayah Jakarta dan sekitarnya. Beli sekarang hanya di toko online terpercaya.

Jual Thermal Camera dengan harga murah dan garansi resmi dari distributor. Dapatkan produk terbaik dengan spesifikasi lengkap. Produk berkualitas tinggi dengan sertifikat kalibrasi (Certificate of Calibration) dari pabrik dan original/asli. Barang yang kami jual sudah melalui Quality Control (QC) dan siap dikirim.

Pengiriman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.

SPESIFIKASI Irtek Ti50

Ti50
Imaging Performance
Field of View	18° x 13°
Lens	13mm
Spatial Resolution	1.9mrad
Thermal Sensitivity / NETD	100mK / 0.1°C at 30°C
Image Frame Rate	50Hz full real time
Focus	Manual Adjust, 30cm (11.8”) to infinity
Detector	160 x 120, Uncooled Micronolometer FPA (ULIS France)
Spectra Range	8 ~ 14µm
Imaging Presentation
External Display	63.5mm / 2.5º color LCD, Full screen pseudo color
Video Output	Not Available
Measurement
Temperature Range	-20 to 350ºC (-4 to 662ºF)
Basic Accuracy	±2ºC or ±2% of reading (whichever is greater)
Measurement Modes	One moveable spot
	Alarm
	One movable area
	displaying max, min, avg
Display Color	3 Palettes available
Temperature Unit	ºC or ºF selectable
Image Adjusment	Auto / Manual gain & brightness
Emissivity Correction	Variable 0.01 to 1.00 by 0.01 increments
Measurement Features	Not available
Image Storage
Type / Format	Built-in Flash Memory / JPEG(14bit thermal image)
Image Storage	up to 1000 images
Voice Annotation	N/A
Interface
Communication	USB 2.0
Laser Locator	Class 2, semiconductor diode laser: 1mW / 635nm (red)
Power Source
Power Supply	Built-in rechargeable Lithium-ion battery, field-replaceable
External Power	Not Available
Battery Operation	Approximately 3 hours
Charger	100 ~ 240V AC, 50/60 Hz
Power Requirement	7.2V DC
Environmental
Operating/Storage Temp.	-15 to 50ºC (-4 to 122ºF) / -25 to 60ºC (-13 to 140ºF)
Operating/Storage Humidity	±90%, non-condensing
Enclosure /Tripod Mounting	IP 54 / ¼ ” – 20
Physical Characteristics
Unit Dimensions / Weight	250x100x72mm / 9.8×3.9×2.8″ / 680g (1.5 lb) including battery
Vibration/Shock Test	MIL-STD 810F Method 503.4:1/2 sine 40g, 11 ms, 3 shocks per axis and per direction
Accessories / Options
Standard Accessories	IR Reporter SoftwareWarranty Card 2 Rechargeable Batteries Battery Charger USB 2.0 Cable Anti-glare Viewer Carrying Case & Strap Certificate of Product Conformance Manual
Options	Not available
