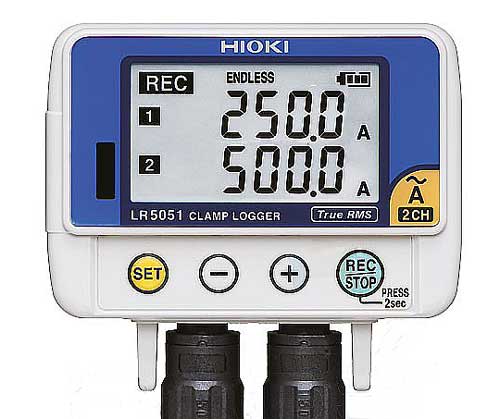

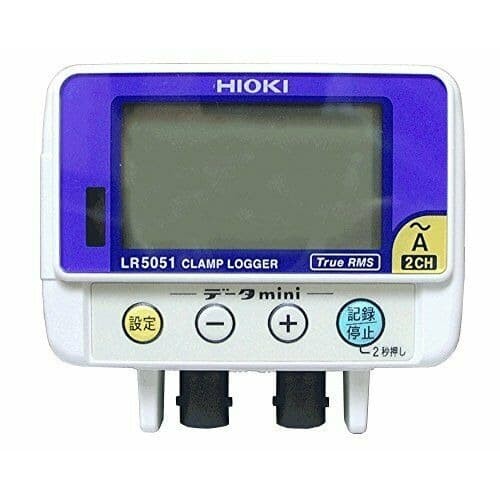

Hioki LR5051 Clamp Logger

Brand: Hioki

Hioki LR5051 Clamp Logger termasuk fitur dan fungsi seperti 7 kali kapasitas rekaman mantan model, data impor selama perekaman, pengukuran kontinyu bahkan selama penggantian baterai, dan softwarePC yang intuitif. Fleksibel dan mudah digunakan di lokasi tunggal dan ganda, yang LR5051 baru kompak dan ideal untuk aplikasi yang membutuhkan sederhana set-up tapi jangka panjang, kemampuan merekam handal.

Fitur Hioki LR5051 Clamp Logger :

Untuk merekam arus beban 50Hz/60Hz dan arus bocor
Menyimpan 60.000 titik data per saluran
Kemampuan perekaman jangka panjang melebihi model sebelumnya
Tampilan ganda yang mudah dilihat
Transfer data selama perekaman
Pengukuran terus menerus bahkan selama penggantian baterai
Fungsi cadangan
Perangkat lunak PC yang intuitif
Pengaturan sederhana
Kemampuan perekaman jangka panjang dan andal

Belanja online Clamp Meter hanya di Darma Sakti Group dengan kualitas terbaik, harga bersaing, Gratis pengiriman wilayah Jakarta dan sekitarnya. Beli sekarang hanya di toko online terpercaya.

Jual Clamp Meter Hioki LR5051 Clamp Logger dengan harga murah dan garansi resmi dari distributor. Dapatkan produk terbaik dengan spesifikasi lengkap. Produk berkualitas tinggi dengan sertifikat kalibrasi (Certificate of Calibration) dari pabrik dan original/asli. Barang yang kami jual sudah melalui Quality Control (QC) dan siap dikirim.

Pengiriman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.

Spesifikasi Hioki LR5051 Clamp Logger

MEASUREMENT ITEMS	AC Current 2 channels (used with the optional current sensor; load current 2ch, leak current 2ch, or load/leak each 1ch) Caution: Current and leak current that occur intermittently cannot be measured.
MEASUREMENT RANGE	500.0 mA to 1000 A AC rms, 5 range (depends on current sensor in use)
BASIC ACCURACY	±2.0% rdg. ±0.13% f.s. (main unit + current sensor accuracy, at 500.0 A range, 50/60 Hz) Note: Basic accuracy is typical value, only main unit accuracy: ±0.5 %rdg. ±5 dgt., must added clamp sensor accuracy, refer to the detailed catalog
STORAGE CAPACITY	Instantaneous value mode: 60,000 data/ch, Statistical value mode: 15,000 data/ch
RECORDING INTERVAL	1 to 30 sec., 1 to 60 min., 15 selections
RECORDING MODES	Instantaneous recording: at every recording interval Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval
RECORDING METHODS	One-time recording: Stop recording when the memory capacity is full Endless recording: Continue recording even when the memory capacity is full (old data is overwritten) Start: Logger button operation or scheduled time Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording)
OTHER FUNCTIONS	Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low; guarantees approx. 30 sec. of recording operation and clock while battery is replaced
WATERPROOF AND DUST-PROOF	N/A
INTERFACES	Infrared optical communications with LR5091, LR5092-20
POWER SUPPLY	LR6 (AA) Alkaline battery ×2, Battery life: Approx. 1 year (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 1 month (Instantaneous recording, with 1-second interval at 20 °C)
DIMENSIONS AND MASS	79 mm (3.11 in) W × 70 mm (2.76 in) H × 37 mm (1.46 in) D, 165 g (5.8 oz)
ACCESSORIES	LR6 (AA) Alkaline battery (built-in internal) × 2, Instruction manual × 1, Operation guide × 1
