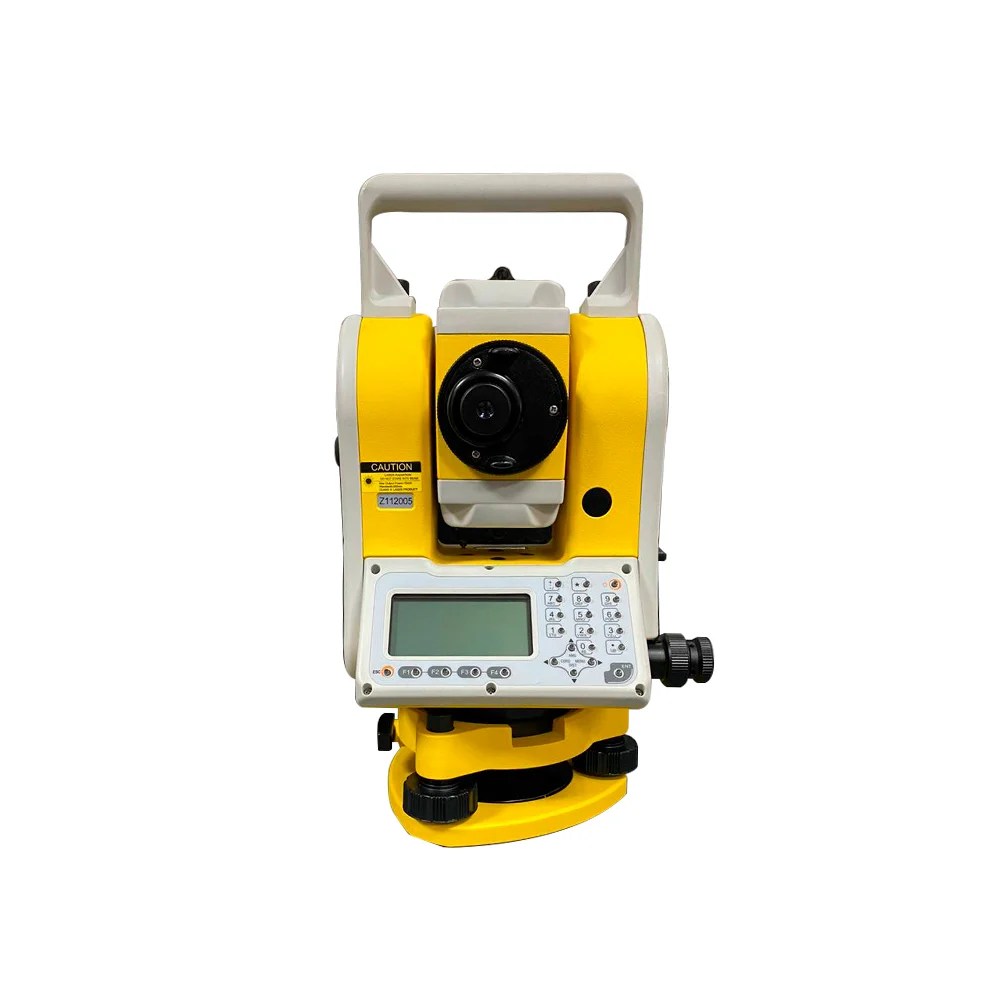

Hi Target ZTS 360R Total Station
Brand: Hi-Target
- Operation temperature—20ºC_+50ºC
- Storage temperature—40ºC_+70ºC
- Dust & Water proof–IP66
- Power supply
- Battery type–BT30 Li-ion battery
- Voltage/Capacity–7.4V 3400mAh
- Operating time–18 hours(continuous angle measurement every 30 seconds)
- Measuring times–Approx. 12000 times
Total Station Hi Target ZTS 360R Adalah Alat yang Dirancang, mudah dibawa dan dipasang. Dengan modul pengukuran yang kuat, sistem Kompensasi Sumbu Ganda Stabil, dan Perangkat Lunak Kalibrasi Cerdas, ZTS-360R meningkatkan kecepatan dan jarak pengukuran secara efisien. Menggunakan arsitektur STM32 dan desain struktur tahan debu dan tahan air bermutu tinggi, secara komprehensif meningkatkan kinerja keseluruhan ZTS-360R.
FITUR
- Specifications of Hi-target 360R best total station
- Angle measurement (Hz,V)
- Detecting system–Absolute encode
- Minimum display–1″/5″/10″(selectable)
- Accuracy–2″
- Telescope
- Magnification–30X
- Field of view–1°30′
- Minimum focus distance–1.5m
- Image–Erect
- Compensation
- System–Dual-axis
- Range–±3′
- Resolving power–1″
- Distance measurement (IR)
- Single prism (good condition)–3000m
- Reflective sheet–800m
- Accuracy–2mm±2ppm
- Measuring time (Repete/Tracking)–1s/0.5s
- Reflectorless (RL)
- Range (white board reflectivity 90%)–600m
- Single prism–>7500m
- Accuracy–3mm±2ppm
- Measuring time–1.5s
- Communication
- Internal memory–20000 points (SD card supported)
- Interface–RS232, Mini-USB, USB
- Data format–ASCII
- Operation
- Operation system–Real-time operation system
- Display–192×96 high-light LED screen, brightness adjustable in 3 level
- Keyboard–2 sides alphanumeric backlit crystal keyboard
- Laser plummet
- Type–Laser point, 4 brightness levels adjustable (Optical plummet is optional)
- Accuracy–1mm at 1.5m instrument height
- Environmental
- meteorological parameter modification–Manually(T-P senser is optional)
- Operation temperature—20ºC_+50ºC
- Storage temperature—40ºC_+70ºC
- Dust & Water proof–IP66
- Power supply
- Battery type–BT30 Li-ion battery
- Voltage/Capacity–7.4V 3400mAh
- Operating time–18 hours(continuous angle measurement every 30 seconds)
- Measuring times–Approx. 12000 times
- Weight
- Weight–3.8kg with battery
- Characters
- Zenith point measurement without removing the handle
- Shortcut measurement key on the side, convenient for surveying
- Small and light
- Key define
