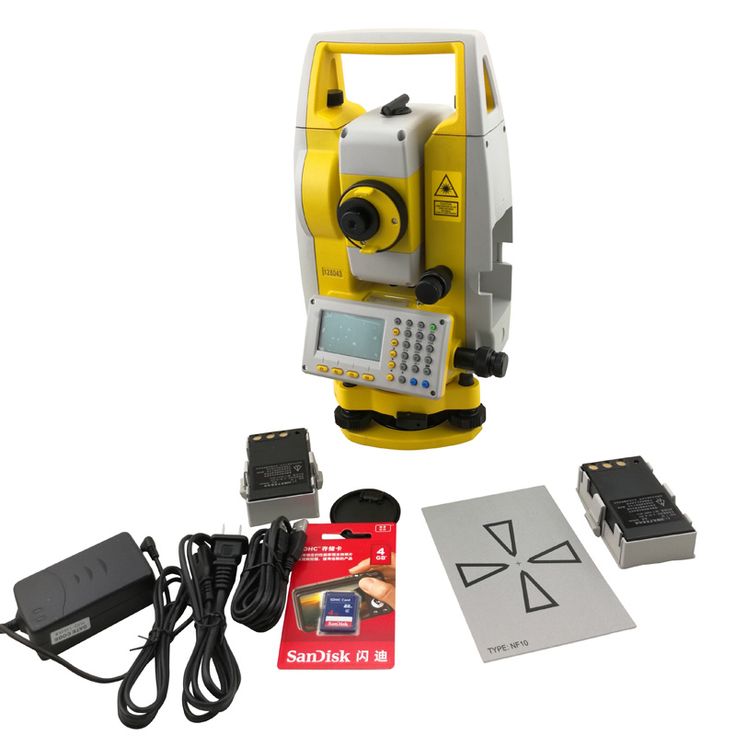

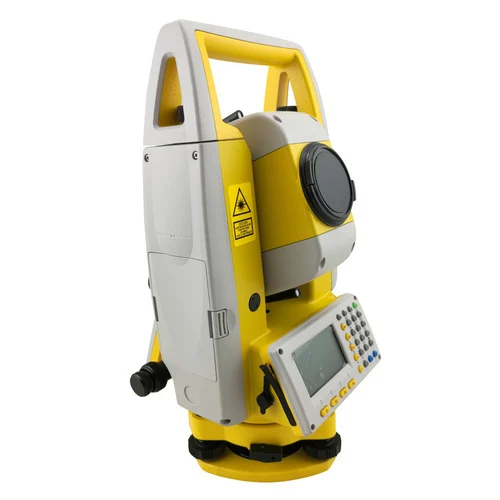

Total Station South NTS 332R10

Rp 45.000.000

Brand: South

Tanpa reflektor 1000m
3.5＂ layar yang disorot warna sebenarnya＂
Kompensasi sumbu ganda
Penunjuk Laser
Sensor T-P Cerdas
Pengukuran Ultracepat

Total Station South NTS-332R10 adalah produk terbaru yang dikeluarkan oleh South. Total Station South NTS 332R10 termasuk dalam seri Total Station South NTS. Seperti yang kita ketahui South adalah perusahaan dari China yang selalu menciptakan produk alat survey dan pemetaan dengan kualitas terbaik.

FITUR

Tanpa reflektor 1000m
3.5＂ layar yang disorot warna sebenarnya＂
Kompensasi sumbu ganda
Penunjuk Laser
Sensor T-P Cerdas
Pengukuran Ultracepat
Laser Turun
Opsi Penyimpanan

SPESIFIKASI

DISTANCE MEASUREMENT
MAX RANGE	Reflectorless	1000m
	Reflector	5.0km
	sheet	1.0km
Object in shade,Or sky overcast
Accuracy	Reflectorless	Fine	±(3+2ppmxD)mm
	Reflector	Fine	±(2+2ppmxD)mm
		IR Sheet	±(2+2ppmxD)mm
Reading		Max: 999999999,999 Min: 0.1mm
Measuring time	Reflectorless	fine mode:0.3s tracking Mode:<0.1s
Atmospheriq correction		Manual input,Auto correction
Prim Constant		Manual input,Auto correction
Temperatur Sensor		Freecale sensor
Angel Measurement
Measuring method		Absolute Encoding
Dia Of Encoder Disk		79mm
Minimum Reading		0,1″
Accuracy		2″
Detection method		Horizontal Dual, Vertical Dual
Optical Plummet
Image		erect
Magnification		3x
Focusing Range		0.5m
Field of View		5⁰
Telecope
Image		Erect
Tube Length		154mm
Effective Aperture		48mm,(EDM:50mm)
Magnification		30x
Field of View		1⁰30′
Minimum focus Distance		1.2m
Resolving power		3″
Auto compesatio
system		Dual axis Liquid Eletric
Working Range		±3′
Accuracy		1″
Vial
plate Vial		30’/2m
Circular Vial		8’/2m
On-board Battrey
Type		Rechangeable Lithium Battery
Volttage		D.c 7.4V
continous operation time		8 hrs
other
Data Communication		RS-232,USB,SD Card
keyboard		Alphanumeric 28 keys
Working temperature		-20C⁰+50C⁰
Dimension and Weight		165x150x335mm,5.2kg
Plummet		optical or laser plummet optional
