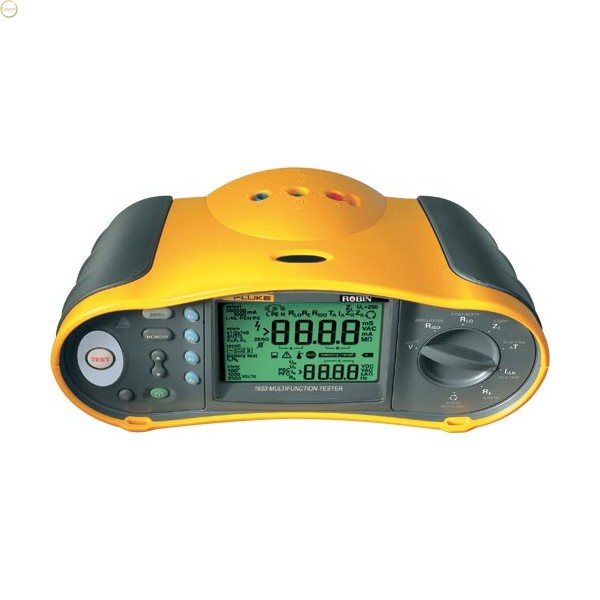

Fluke 1653B Multifunction Insulation Tester adalah alat uji instalasi listrik profesional yang digunakan untuk memverifikasi keamanan dan kelayakan sistem instalasi listrik pada lingkungan rumah tangga, komersial, maupun industri. Alat ini termasuk dalam kategori multifunction installation tester, yang mampu melakukan berbagai jenis pengujian listrik dalam satu perangkat.
Secara umum, Fluke 1653B dirancang untuk membantu teknisi memastikan bahwa instalasi kabel dan sistem kelistrikan telah dipasang dengan benar serta memenuhi standar keselamatan internasional seperti IEC 60364.
FITUR Fluke 1653B
- Multifunction tester → satu alat untuk uji instalasi lengkap (insulation, continuity, loop, RCD, dll)
- Dual display & pengukuran simultan → menghemat waktu hingga >50%
- High current loop test & non-trip mode → pengujian lebih cepat dan aman untuk RCD
- Zero adapter → kompensasi kabel uji lebih akurat
- Pengukuran tegangan cepat (L-N, L-PE, N-PE) → tanpa perlu pindah koneksi
- PASS/FAIL indication (RCD test) → evaluasi hasil lebih mudah
- Variable RCD current mode → pengaturan pengujian fleksibel
- Deteksi tegangan berbahaya (Earth Volt Touchpad) → meningkatkan keselamatan
- Memory penyimpanan data → untuk dokumentasi hasil uji
- Rotary switch sederhana & layar besar backlight → mudah digunakan
- Desain rugged (tahan jatuh 1 m) → cocok untuk lapangan

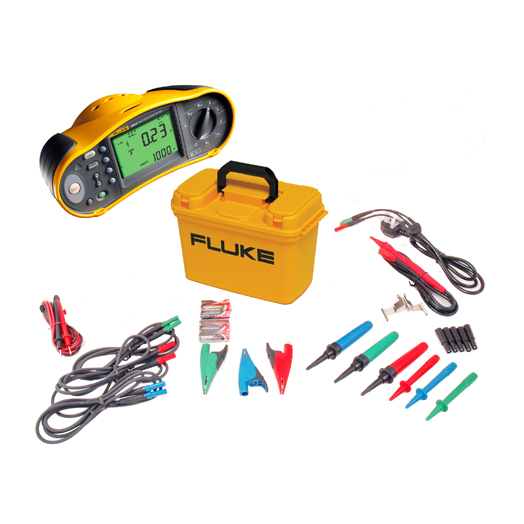

- Probe remote & SureGrip test leads → pengukuran lebih aman dan nyaman
SPESIFIKASI Fluke 1653B
| Specifications |
| AC Voltage Measurement |
| Range: |
500 V |
| Resolution: |
0.1 V |
| Accuracy (50 – 60 Hz) |
± (0.8% + 3 digits) |
| Input Impedance |
3.3 MΩ |
| Overload Protection |
660 Vrms |
|
| Continuity Testing |
| Range (autoranging): |
20 Ω, 200 Ω, 2000 Ω |
| Resolution: |
0.01 Ω, 0.1 Ω, 1 Ω |
| Test Current: |
> 200 mA |
| Open Circuit Voltage: |
> 4 V |
| Accuracy: |
± (1.5%+3 digits) |
|
| Insulation Resistance Measurement |
| Test Voltage: |
250 – 500 – 1000 V |
|
|
| Test Voltage: |
50 V |
| Test Current: |
1 mA @ 50 kΩ |
| Insulation Range: |
10 kΩ – 50 мΩ |
| Resolution: |
0.01 мΩ |
| Accuracy: |
± (3% + 3 digits) |
|
|
| Test Voltage: |
100 V |
| Test Current: |
1 mA @ 100 kΩ |
| Range/Resolution: |
20 MΩ/0.01 MΩ |
| Range/Resolution: |
100 MΩ/0.1 MΩ |
| Accuracy: |
± (3% + 3 digits) |
|
|
| Test Voltage: |
250 V |
| Test Current: |
1 mA @ 250 kΩ |
| Range/Resolution: |
20 MΩ/0.01 MΩ |
| Range/Resolution: |
200 MΩ/0.1 MΩ |
| Accuracy: |
± (1.5% + 3 digits) |
|
|
| Test Voltage: |
500 V |
| Test Current: |
1 mA @ 500 kΩ |
| Range/Resolution: |
20 MΩ/0.01 MΩ |
| Range/Resolution: |
200 MΩ/0.1 MΩ |
| Accuracy: |
± (1.5% + 3 digits) |
| Range/Resolution: |
500 MΩ/1 MΩ |
| Accuracy: |
10% |
|
|
| Test Voltage: |
1000 V |
| Test Current: |
1 mA @ 1 MΩ |
| Range/Resolution: |
20 MΩ/0.01 MΩ |
| Range/Resolution: |
200 MΩ/0.1 MΩ |
| Accuracy: |
± (1.5% + 3 digits) |
| Range/Resolution: |
500 MΩ/1 MΩ |
| Accuracy: |
10% |
|
|
| Auto Discharge: |
Discharge time constant, 0.5 second for
C = 1 µF or less |
| Live Circuit Detection: |
Inhibits test if terminal voltage > 30 V prior to initiation of test |
| Maximum Capacitive Load: |
Operable with the 5 µF load |
|
| Loop Impedance Measurement (High Current Mode and Non-Trip Mode) |
| Range: |
100 – 500 VAC (50/60 Hz) |
| Input connection: |
Soft Key selection |
| Loop impedance: |
Phase to earth |
| Line impedance: |
Phase to neutral |
| Limit on consecutive tests: |
Automatic thermal shutdown after 50 consecutive tests at 10 second intervals (typical) |
|
|
| Max. Test Current. High Current and Non-Trip Modes: |
|
| Maximum Test Current @ 400 V |
20 A sinusoidal for 10 ms |
| Maximum Test Current @ 230 V |
12 A sinusoidal for 10 ms |
|
|
| Range/Resolution: |
20 Ω/0.01 Ω |
| Range/Resolution: |
200 Ω/0.1 Ω |
| Range/Resolution: |
2000 Ω/1 Ω |
|
|
| Accuracy (no Trip mode): |
± (3% + 6 digits) |
| Accuracy (Hi Current mode): |
± (2% + 4 digits) |
|
| PFC, PSC Test |
| Computation: |
PFC or PSC determined by dividing measured mains voltage by measured loop (L-PE) resistance or line (L-N) resistance |
| Range: |
0 – 25 kA |
| Resolution (Ik < 1000 A): |
1 A |
| Resolution (Ik >= 1000 A): |
0.1 kA |
| Accuracy: |
Determined by accuracy of loop resistance and mains voltage measurements. |
|
| RCD Testing ¹ |
| G |
General, no delay |
| S |
Time delay |
| A |
Responds to pulsed signal |
| AC |
Responds to AC |
|
| Tripping Time Test (ΔT) |
| Trip Time Accuracy |
±(1% Reading + 1 digit) |
| Multiplier: |
x ½ |
| Current Settings: |
10, 30, 100, 300, 500, 1000 mA |
| Current Accuracy: |
+0% – 10% |
| RCD Type ¹: |
G |
| Measurement Range: |
310 ms (Europe), 2000 ms (UK) |
| RCD Type ¹: |
S |
| Measurement Range: |
510 ms (Europe), 2000 ms (UK) |
|
|
| Multiplier |
x 1 |
| Current Settings: |
10, 30, 100, 300, 500, 1000 mA |
| Current Accuracy: |
+10% – 0% |
| RCD Type ¹: |
G |
| Measurement Range: |
310 ms |
| RCD Type ¹: |
S |
| Measurement Range: |
510 ms |
|
|
| Multiplier: |
x 5 |
| Current Settings: |
10, 30 mA |
| Current Accuracy: |
±10% |
| RCD Type ¹: |
G |
| Measurement Range: |
50 ms |
| RCD Type ¹: |
S |
| Measurement Range: |
160 ms |
|
| Tripping Current (ramp) |
| Current Range: |
50% – 110% of RCD’s rated current |
| Step Size: |
10% of IΔN |
| Dwell time (Type G): ¹ |
300 ms / step |
| Dwell time (Type S): ¹ |
500 ms / step |
| Trip Current Measurement Accuracy: |
±5% |
|
| Earth Resistance Test (RE) – Fluke 1653B + 1654B |
| Range/Resolution: |
200 Ω/0.1 Ω |
| Accuracy: |
±(2% + 5 digits) |
| Range/Resolution: |
2000 Ω/1 Ω |
| Accuracy: |
±(3.5% + 10 digits) |
| Frequency: |
128 Hz |
| Compliance Voltage: |
+25 V |
|
| Phase Sequence Indication |
| Icon: |
Icon Phase Sequence indicator is active |
| Display of Phase Sequence: |
|
|
Displays ‘1-2-3’ in digital display field for correct sequence. |
|
Displays ‘3-2-1’ for incorrect phase. |
|
Dashes in place of a number indicate a valid determination could not be made. |
|
| Environmental Specifications |
| Operating Temperature |
|
| Humidity (Without Condensation) |
| 10 to 30 °C: |
95% |
| 30 to 40 °C: |
75% |
|
| Safety Specifications |
| Safety Rating |
|
EN 61010-I CAT III 500V, CAT IV 300V |
|
| Mechanical & General Specifications |
| Size |
| (L x W x H): |
10 x 25 x 12.5 cm |
|
| Weight |
|
| Batteries |
|
| Warranty |
|
| Battery type |
|
Alkaline supplied, usable with 1.2V NiCD or NiMH rechargeable batteries |
|
