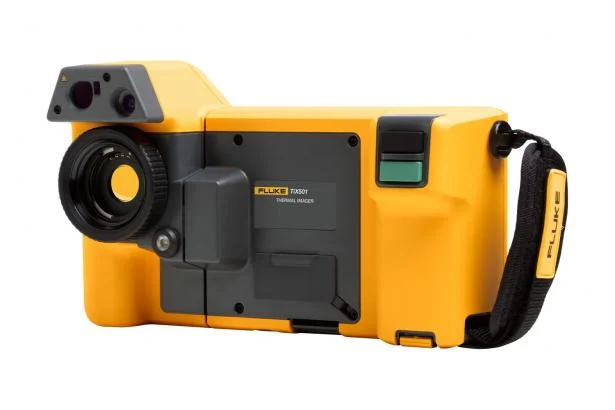

Fluke TiX501 Thermal Camera

Brand: Fluke

Desain ergonomis dan tali leher membuat hari inspeksi yang panjang menjadi lebih mudah. Di luar, layar berputar memungkinkan Anda menyesuaikan untuk meminimalkan silau dan layar sentuh menghadirkan pengalaman menonton premium di lapangan. Dengan resolusi 640 x 480 dan pengukuran suhu hingga 650 °C, kamera inframerah Fluke TiX501 ideal untuk:

Keputusan berkualitas didasarkan pada fakta yang jelas dan dapat dipahami. Saat tugas Anda untuk menganggarkan dan mengontrol biaya, Anda memerlukan alat yang membantu Anda melihat ke masa depan. Membangun sistem untuk memperkirakan dan memitigasi biaya pemeliharaan secara proaktif adalah salah satu opsi terbaik pabrik untuk meningkatkan profitabilitas totalnya. Itulah sebabnya ahli termograf berpengalaman, manajer operasi, dan teknisi keandalan beralih ke kamera termal artikulasi Fluke.

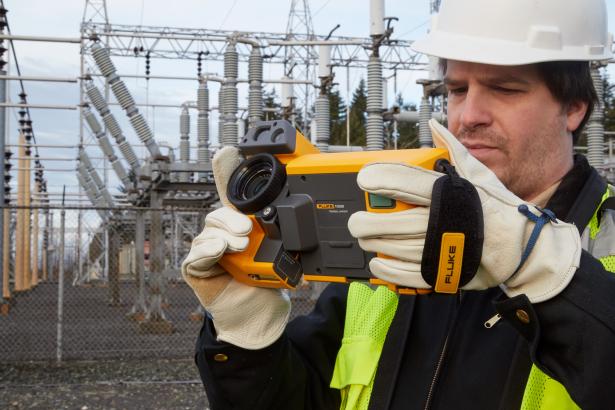

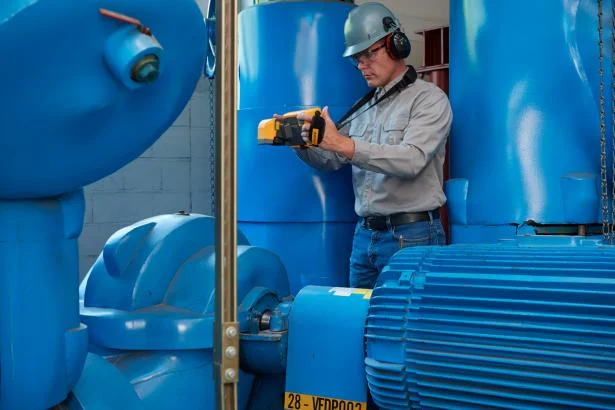

Inspeksi pemeliharaan industri
Program pemeliharaan prediktif
Perawatan minyak dan gas
Keperluan

Dalam fokus, gambar lebih mudah ditangkap dengan fokus otomatis LaserSharp dan zoom digital 2x. Gambar dapat dioptimalkan di layar besar tepat di lapangan. Dan dengan artikulasi 240°, Anda dapat mengumpulkan gambar yang diperlukan, baik di atas kepala, di sekitar sudut, atau di bawah peralatan. Anda memiliki alat yang Anda perlukan untuk mengambil gambar berkualitas, dekat atau jauh. Saat pekerjaan membutuhkan tingkat presisi yang jauh melampaui biasanya, Anda memerlukan kamera yang luar biasa – Fluke TiX501.

Maksimalkan TiX501 Anda dengan perangkat lunak desktop Fluke Connect™. Buat laporan profesional dalam hitungan menit sambil menangkap data radiometrik lengkap secara efisien untuk mendukung program pemeliharaan Anda.

Edit dan optimalkan gambar
Gabungkan gambar inframerah dan tampak untuk analisis yang lebih sederhana
Membuat laporan terperinci

Specifications: Fluke TiX501 Thermal Camera

Key features
Infrared resolution	640 x 480 (307,200 pixels)
SuperResolution	No
IFOV with standard lens (spatial resolution)	0.93 mRad, D:S 1065:1
Field of view	34 °H x 24 °V
Minimum focus distance	15 cm (approx. 6 in)
MultiSharp Focus	No
LaserSharp Auto Focus	Yes, for consistently in-focus images. Every. Single. Time.
Laser distance meter	Yes, calculates distance to the target for precisely focused images and displays distance on screen
Advanced manual focus	Yes
Wireless connectivity	Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)
Fluke Connect app compatible	Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
Fluke Connect Assets	Future**, Automatically assign images to assets, easily compare measurement types in one location and create reports through a cloud-based system.
Fluke Connect instant cloud upload	Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC
Fluke Connect instant server upload	Yes**
IR-Fusion technology	Yes, adds the context of the visible details to your infrared image

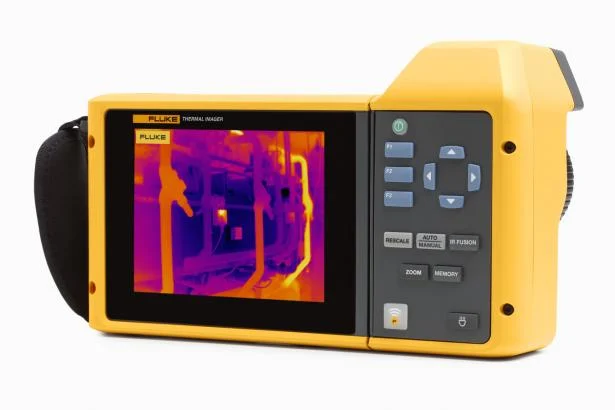

Ruggedized touchscreen display	5.7 inch (14.4 cm) landscape, 640 x 480 LCD

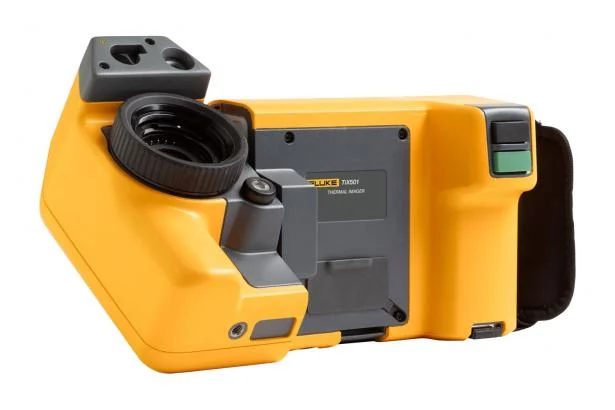

Ergonomic design	240° rotatable (articulating) lens
Thermal sensitivity (NETD)**	≤0.075 °C at 30 °C target temp (75 mK)
Level and span	Smooth auto and manual scaling
Touchscreen adjustable level/span	Yes. Span and level can be easily and quickly set by simply touching the screen
Fast auto toggle between manual and auto modes	Yes
Fast auto-rescale in manual mode	Yes
Minimum span (in manual mode)	2.0 °C (3.6 °F)
Minimum span (in auto mode)	3.0 °C (5.4 °F)
Built-in digital camera (visible light)	5 MP
Frame rate	60 Hz or 9 Hz versions
Laser pointer	Yes
LED light (torch)	Yes
Digital zoom	2x

Data storage and image capture
Extensive memory options	Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload for permanent storage
Image capture, review, save mechanism	Yes, edit and analyze captured images on camera
Image file formats	bmp, jpeg, is2, is3, AVI
Memory review	Thumbnail and full screen review
Software	Full analysis and reporting software with access to the Fluke Connect system
Analyze and store radiometric data on a PC	Yes
Export file formats with Fluke Connect software	Bitmap (.bmp), GIF, JPEG, PNG, TIFF
Voice annotation	60 seconds maximum recording time per image; reviewable playback on camera, optional Bluetooth headset available but not required
IR-PhotoNotes	Yes – 2 images
Text annotations	Yes. Including standard shortcuts as well as user programmable options
Video recording and formats	Standard
Remote control operations	Remote display through Fluke Connect
Auto capture (temperature and interval)	No
MATLAB® and LabVIEW® tool boxes	Integrate camera data, infrared video and images into software to support R&D analysis

Battery
Batteries (field-replaceable, rechargeable)	Two lithium ion smart battery packs with five-segment LED display to show charge level
Battery life	2-3 hours per battery (actual life varies depending on settings and usage)
Battery charging time	2.5 hours to full charge
Battery charging system	Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
AC operation	AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Power saving	User selectable sleep and power off modes

Temperature measurement
Temperature measurement range (not calibrated below -10 °C)	-20 °C to +650 °C (-4 °F to +1,202 °F)
Accuracy	±2 °C or 2 % (at 25 °C nominal, whichever is greater)
On-screen emissivity correction	Yes (both value and table)
On-screen reflected background temperature compensation	Yes
On-screen transmission correction	Yes
Line temperature graph	No

Color palettes
Standard palettes	8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast palettes	8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra

Smart Lenses
Macro-25 micron lens: 25 MAC2	Yes
2 x telephoto lens: TELE 2	Yes
4 x telephoto lens: TELE4	Yes
Wide angle lens: WIDE 2	Yes

General specifications
Color alarms (temperature alarms)	High temperature, low temperature, and isotherms (within range)
Infrared spectral band	7.5 μm to 14 μm (long wave)
Operating temperature	-10 °C to +50 °C (+14 °F to +122 °F)
Storage temperature	-20 °C to +50 °C (-4 °F to +122 °F)
Relative humidity	10 % to 95 % non-condensing
Center-point temperature measurement	Yes
Spot temperature	Hot and cold spot markers, individually enabled
User-definable spot markers	2 user-definable spot markers
User defined measurement boxes	1 expandable-contractible measurement box with MIN-MAX-AVG temp display
Hard case	Rugged, IP 67 rated, airtight hardcase with custom foam insert
Safety	IEC 61010-1: Overvoltage category II, Pollution Degree 2
Electromagnetic compatibility	IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
Australian RCM	IEC 61326-1
US FCC	CFR 47, Part 15 Subpart B
Vibration	0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6
Shock	25 g, IEC 68-2-29
Drop	Engineered to withstand 1 meter (3.3 feet) drop with standard lens
Size (H x W x L)	27.3 x 15.9 x 9.7 cm (10.8 x 6.3 x 3.8 in)
Weight (battery included)	1.54 kg (3.4 lb)
Enclosure rating	IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty	Two-years (standard), extended warranties are available
Recommended calibration cycle	Two-years (assumes normal operation and normal aging)
Supported languages	Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
RoHS compliant	Yes
