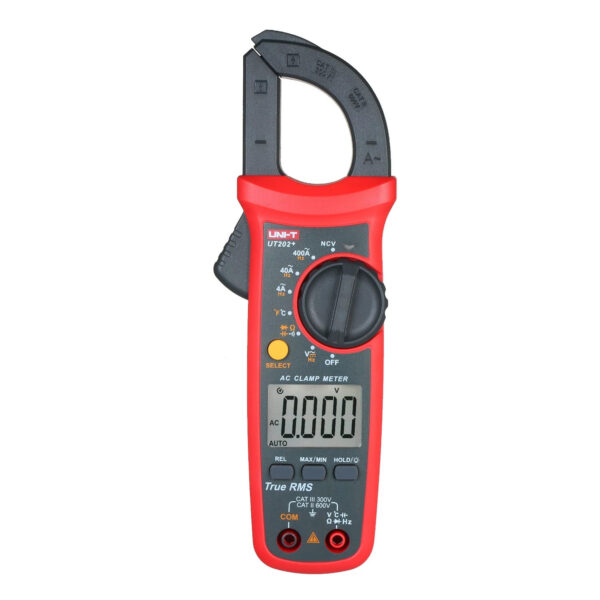

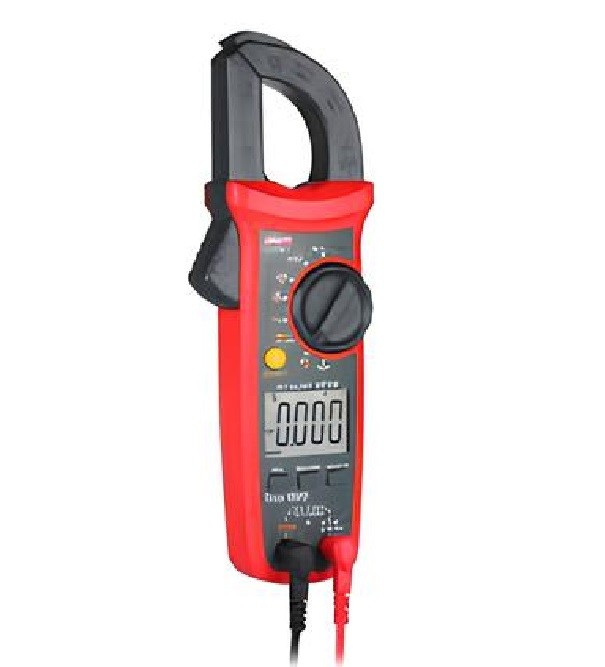

Clamp Meter Multimeter UNI-T UT202+

Rp 1.250.000

Brand: UNI-T

Alat pengukur klem RMS sejati jangkauan otomatis genggam seri UT200+, dirancang sesuai dengan standar keselamatan EN61010-2010 tingkat CAT II600V/CAT III 300V, dengan perlindungan anti-bakar roda gigi yang berfungsi penuh, dapat memenuhi persyaratan pengoperasian yang andal dan aman.

FITUR UNI-T UT202+

Display count		4000
Auto range		√
Jaw opening		28mm
True RMS		√
NCV		√
Live wire test
Continuity test		√
Diode		√
MAX/MIN		√
Relative mode		√
Zero mode
Data hold		√
Low battery indication		√
Auto power off		√

SPESIFIKASI UNI-T UT202+

Specifications	Range	UT202+	UT204+
AC current (A)	400A	±(2%+10)
AC current (A)	600A		±(2.5%+5)
AC current frequency (Hz)	50Hz~100Hz	±(1%+5)
DC current (A)	400A
DC current (A)	600A		±(2.5%+5)
AC voltage (V)	600V	±(0.8%+5)	±(0.8%+5)
AC voltage frequency(Hz)	10Hz~10kHz	±(1%+5)
AC voltage frequency(Hz)	10Hz~60kHz		±(0.5%+2)
DC voltage (A)	600V	±(0.5%+2)	±(0.5%+2)
Resistance (Ω)	40MΩ	±(0.8%+2)
Resistance (Ω)	60MΩ		±(0.8%+2)
Capacitance (F)	4mF	±(4%+5)
	40mF
	60mF		±(4%+5)
Temperature (℃)	-40℃~1000℃	±(1.5%+5)	±(1.5%+5)
Frequency (Hz)	10Hz~10MHz		±(0.1%+4)
Features
Display count		4000	6000
Auto range		√	√
Jaw opening		28mm	28mm
True RMS		√	√
NCV		√	√
Live wire test			√
Continuity test		√	√
Diode		√	√
MAX/MIN		√	√
Relative mode		√	√
Zero mode			√
Data hold		√	√
Low battery indication		√	√
Auto power off		√	√
General Characteristics
Power	AAA (Ro3) x 2
Display	37mm x 25mm
Product colour	Red and grey
Product net weight	UT202+：248g; UT204+:235g
Product size	215mm x 63mm x 36mm

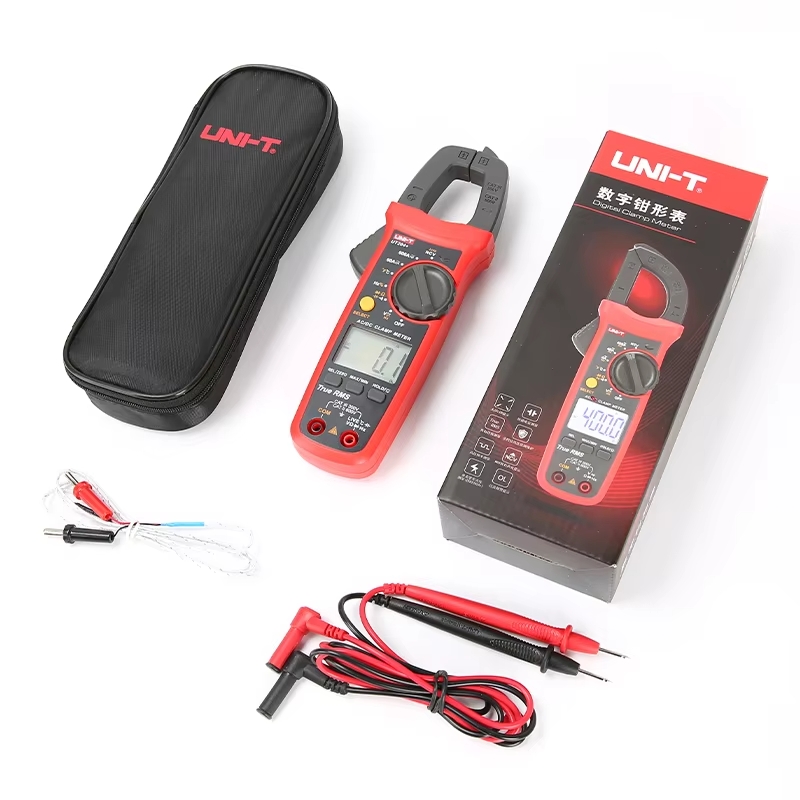

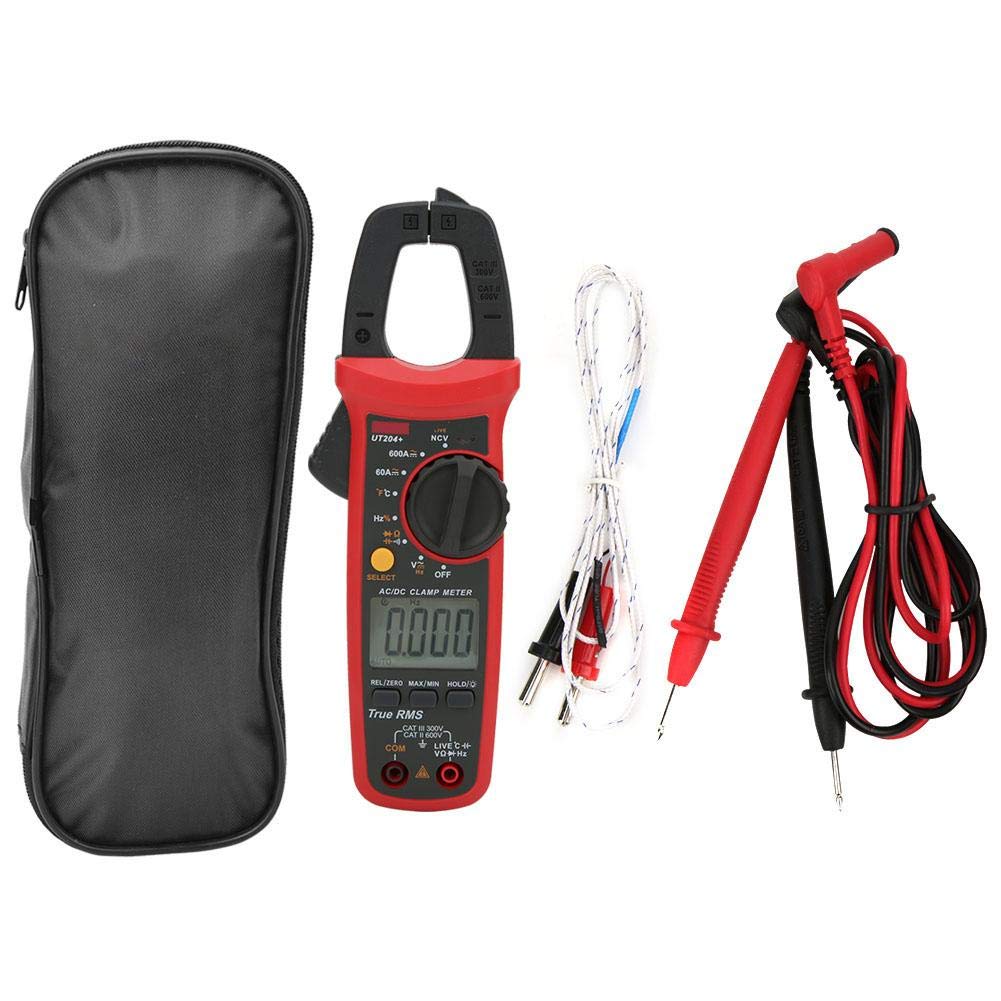

Standard accessories	Batteries, test leads, Thermocouple (UT202+/UT204+)
Standard individual packing	Box, Carrying bag, English manual
