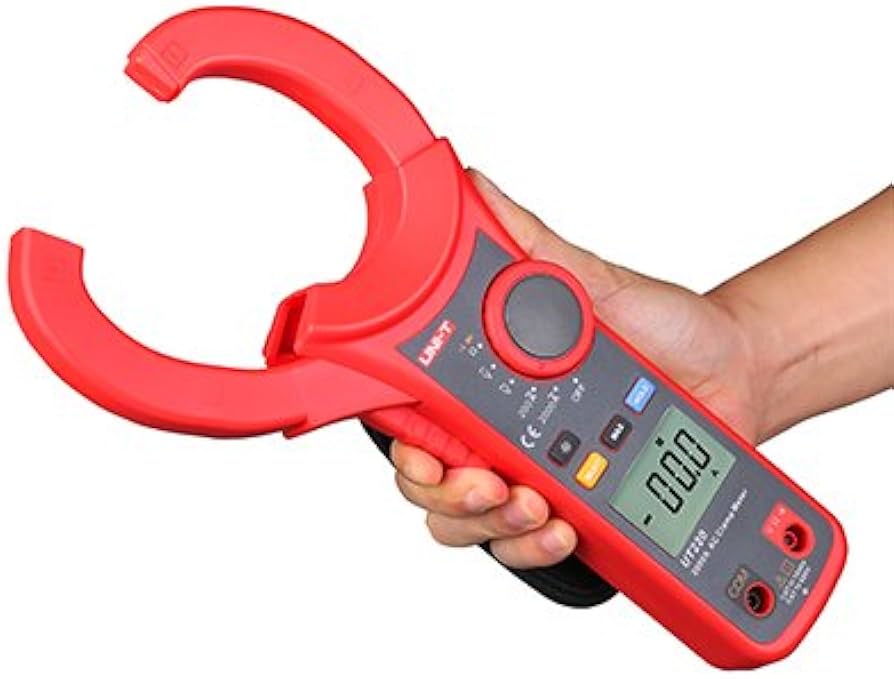

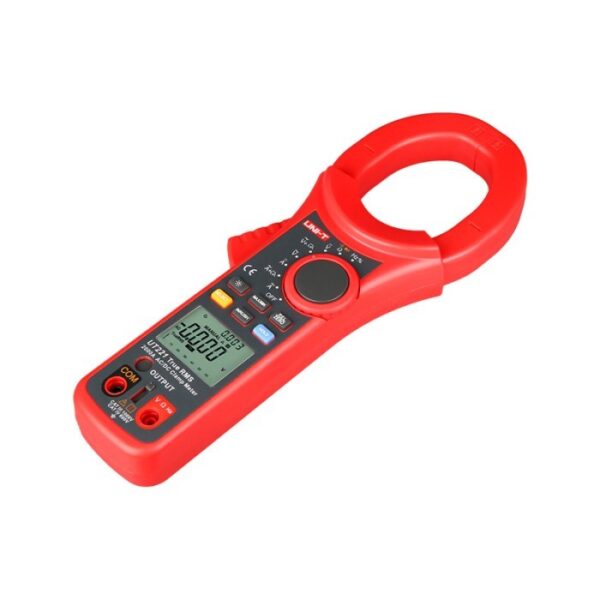

AC/DC Digital Clamp Meter UNI-T UT220

Rp 2.500.000

Brand: UNI-T

Seri UT220 adalah penjepit digital AC/DC 2000A. Seri ini memastikan kinerja, keamanan, dan keandalan yang stabil untuk mengukur arus AC (dan DC untuk UT221) hingga 2000A. Seri ini dirancang dengan perlindungan beban berlebih untuk semua rentang, cocok untuk semua profesional yang mengukur arus hingga 2000A (2500A untuk UT222).

FITUR UNI-T UT220

Jangkauan otomatis
Bel kontinuitas
MAKS/MIN
Dioda
Penahanan data
Indikasi baterai lemah

SPESIFIKASI UNI-T UT220

Specifications	Range	UT220	UT221	UT222
AC current (A)	2000A	±(2.5%+5)	±(2.5%+5)
AC current (A)	2500A			±(1.5%+5)
DC current (A)	2000A		±(2.5%+5)
DC current (A)	2500A			±(1.5%+5)
AC voltage (V)	750V	±(1.2%+5)	±(1.2%+5)
AC voltage (V)	1000V			±(1%+3)
DC voltage (V)	1000V	±(0.8%+1)	±(0.8%+1)	±(0.5%+2)
Resistance (Ω)	20MΩ	±(1%+2)
	60MΩ			±(1%+2)
	66MΩ		±(1%+2)
Capacitance (F)	60mF			±(3%+5)
Frequency (Hz)	20MHz		±(0.1%+3)
Frequency (Hz)	60MHz			±(0.1%+3)
Temperature	-40°C~1000°C			±(1%+10)
Temperature	-40°F~1832°F			±(1%+18)
Features
Display count		2000	6000	6000
Auto range/Diode		√	√	√
Jaw opening		63mm	63mm	63mm
True RMS (AC voltage/AC current)			√	√
Duty cycle	10%~90%		√	√
Continuity buzzer		√	√	√
AC+DC				√
Low pass filter			√	√
Inrush current	AC current		√	√
Relative mode			√	√
Data hold/MAX		√	√	√
MIN/I-OUT function			√	√
Data storage				1000
Analog bar graph			66	61
Full icon display		√	√	√
Low battery indication		√	√	√
Input impedance	≥10MΩ	√	√	√
General Characterisitics
Power	9V battery (6F22)
Display	43mm x 30mm
Product color	Red and grey
Product net weight	UT220: 389g; UT221/UT222: 726g
Product size	298mm x 107mm x 47mm
Standard accessories	Test leads, output cable (UT221/UT222), thermocouple (UT222)
Standard individual packing	Gift box, carrying bag (UT220), tool box (UT221/UT222), English manual
Standard quantity per carton	UT220: 40pcs; UT221/UT222: 5pcs
Standard carton measurement	UT220: 645mm x 600mm x 330mm; UT221/UT222: 510mm x 375mm x 320mm
Standard carton gross weight	UT220: 30.1kg; UT221: 12.1kg; UT222: 11.9kg
