Professional Clamp Meters UNI-T UT219 Series
Rp 3.500.000
Seri UT219 adalah penjepit meter profesional true RMS 600A dengan peringkat CAT IV 600V. Alat ini dirancang secara industri dengan peringkat IP54 dan mampu menahan uji jatuh dari ketinggian 2 meter untuk pengukuran di lingkungan yang keras. Seri ini cocok untuk teknisi listrik profesional, HVAC/R, dan teknisi servis motor.
Seri UT219 adalah penjepit meter profesional true RMS 600A dengan peringkat CAT IV 600V. Alat ini dirancang secara industri dengan peringkat IP54 dan mampu menahan uji jatuh dari ketinggian 2 meter untuk pengukuran di lingkungan yang keras. Seri ini cocok untuk teknisi listrik profesional, HVAC/R, dan teknisi servis motor.
FITUR UNI-T UT219
- Jangkauan otomatis/manual/Mode ZERO
- True RMS/daya mati otomatis
- MAX/MIN
- IP54/tahan jatuh 2m
- Mode penyimpanan data/relatif
- Senter dan lampu latar otomatis
- Indikasi baterai lemah
SPESIFIKASI UNI-T UT219
| Specifications | Range | UT219E | UT219M | UT219DS |
| AC current (A) | 600A | ±(1.8%+6) | ±(1.8%+6) | ±(1.8%+6) |
| DC current (A) | 600A | ±(1.8%+6) | ||
| AC voltage (V) | 1000V | ±(1%+6) | ±(1%+6) | ±(1%+6) |
| DC voltage (V) | 1000V | ±(0.6%+3) | ±(0.6%+3) | ±(0.6%+3) |
| LoZ ACV | 600V | ±(2.5%+6) | ±(2.5%+6) | ±(2.5%+6) |
| Resistance (Ω) | 60MΩ | ±(1%+3) | ±(1%+3) | ±(1%+3) |
| Capacitance (F) | 60mF | ±(4%+7) | ±(4%+7) | ±(4%+7) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+6) | ||
| 600Hz~40MHz | ±(0.1%+5) | ±(0.1%+6) | ||
| Duty cycle | 0.1%~99.9% | ±(2.6%+7) | ±(2.6%+7) | |
| Temperature | -40~1000℃ | ±(2%+5℃) | ±(2%+5℃) | |
| -40~1832℉ | ±(2%+9℉) | ±(2%+9℉) | ||
| Features | ||||
| Display count | 6000 | 6000 | 6000 | |
| Auto/Manual range | √ | √ | √ | |
| Jaw opening | 33mm | 33mm | 33mm | |
| True RMS | √ | √ | √ | |
| AC current frequency response | 40Hz~400Hz | 40Hz~400Hz | 40Hz~400Hz | |
| AC voltage frequency response | 40Hz~400Hz | 40Hz~400Hz | 40Hz~1kHz | |
| 3-phase motor sequence test | 600V | √ | √ | |
| Low pass filter | 1kHz, 3db attenuation | √ | ||
| V+A displays voltage and current at the same time | √ | |||
| Diode test | 3V | 3V | 3V | |
| Measurement sampling rate | 3 times/s | 3 times/s | 5 times/s | |
| Analog bar sampling rate | 10 times/s | 20 times/s | ||
| Analog bar | 31 segment | 31 segment | ||
| Display interface (LCD) | Single | Single | Dual | |
| Auto power off/MAX/MIN | √ | √ | √ | |
| Low battery indication | √ | √ | √ | |
| Data hold (H)/Relative mode (REL) | √ | √ | √ | |
| ZERO mode | √ | √ | √ | |
| Function selection (SELECT) | √ | √ | √ | |
| Auto backlight/2m drop test | √ | √ | √ | |
| IP rating | IP54 | IP54 | IP54 | |
| Input impedance | ≥10MΩ | √ | √ | √ |
| General Characterisitics | ||||
| Power | 1.5V battery (R03) x 3 | |||
| Display | 35mm x 31mm | |||
| Product color | Red and grey | |||
| Product net weight | 310g | |||
| Product size | 234.6mm x 82mm x 47mm | |||

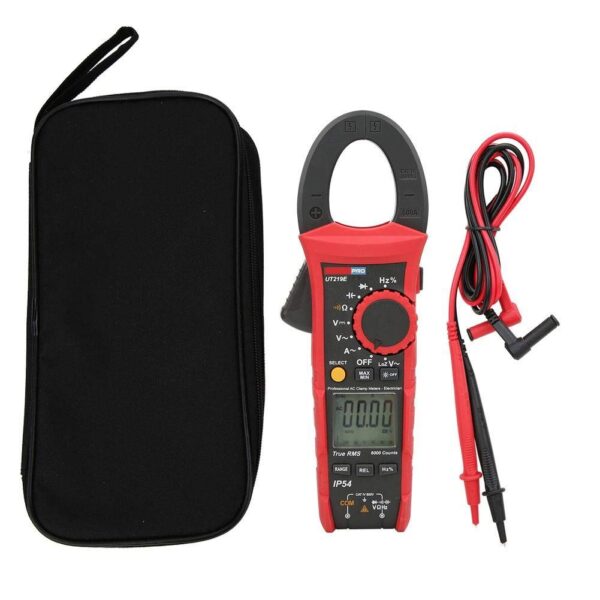

| Standard accessories | Test leads, batteries, carrying bag, PC software CD, point contact temperature probe (UT219M/UT219DS) | |||
| Standard individual packing | Gift box, blister, English manual | |||
| Standard quantity per carton | 10pcs | |||
| Standard carton measurement | 490mm x 295mm x 330mm | |||
| Standard carton gross weight | UT219E: 8kg; UT219M/UT219DS: 8.2kg | |||
