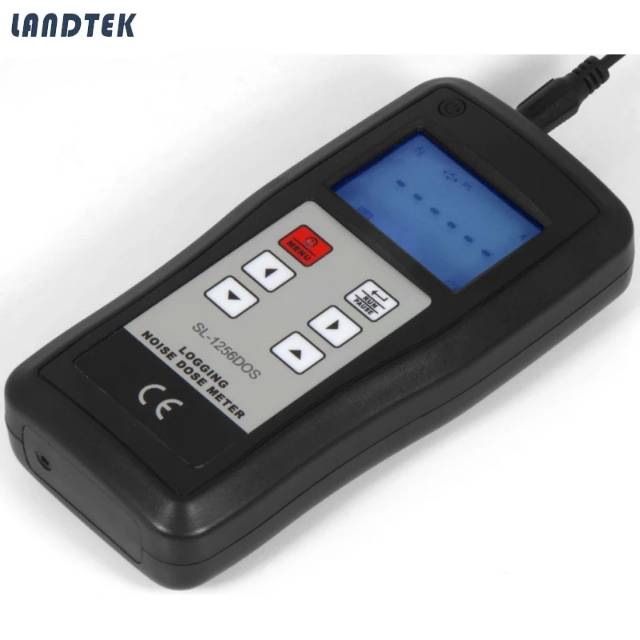

Noise Dose Meter Logging Landtek SL-1256DOS

Noise Dose Meter Logging Landtek SL-1256DOS

Rp 10.100.000

Brand: Landtek

Pengukur dosis kebisingan pribadi adalah alat uji untuk mengevaluasi kondisi kebisingan lingkungan kerja dengan mengukur akumulasi paparan kebisingan. Dengan data pengujian ini, perusahaan dapat memastikan peraturan terkait kebisingan dipatuhi atau memutuskan apakah akan menerapkan tindakan pengurangan kebisingan tertentu atau tidak untuk menghindari trauma akustik dan gangguan pendengaran akibat kebisingan yang terjadi pada personel yang bekerja.

Logging Personal Noise Dose Meter SL-1256DOS Sound Level Tester DOSE adalah parameter yang digunakan untuk mengukur paparan kebisingan yang diukur dalam suatu periode, selama pergantian % paparan kebisingan relatif terhadap 90dBA selama 8 jam. yaitu 100% DOSE = 90dBA selama 8 jam.

FITUR Landtek SL-1256DOS

Pengoperasian sederhana, termasuk pembacaan langsung hasil.
Delapan pengaturan pengukuran dosis standar bawaan: OSHA80, OSHA90, MSHA-80, MSHA-90, DOD, ACGIH, ISO85 dan ISO90.
Sembilan pengaturan pengukuran yang ditentukan pengguna.
Pengaturan meteran tingkat suara (SLM) tunggal.
Pengaturan meteran tingkat suara (SLM) tunggal.
Penyimpanan hasil 50 dosis (DATA).
Download setup dari PC ke meteran.
Kunci tombol melindungi meteran terhadap pengoperasian yang tidak disengaja.
Timer mendukung pra-pemilihan waktu dan durasi pengukuran.
Gunakan output data USB untuk terhubung dengan PC.

SPESIFIKASI Landtek SL-1256DOS

Standard Applied	IEC61252, ANSI S1.25 – 1992 for dose meter and sound exposure meters. IEC 61672-1-2013 Class 2
Microphone	1/2-inch electret condenser microphone with 31-inch integral cable
Display	Liquid Crystal Display
Measurement Ranges (Linearity and Indicator ranges at 4KHz)	60 – 130 : 60 – 130dB (A and C)
Measurement Ranges (Linearity and Indicator ranges at 4KHz)	70 – 140 : 70 – 140dB (A and C)
Peak Ranges (C–weighted or Linear Peak over the top 40dB of each measurement range)	60 – 130 : 93 – 133dB Peak
	70 – 140 : 103 – 143dB Peak
Frequency Weightings	RMS Detector: A or C
Frequency Weightings	Peak Detector: C or Z (Linear)
Time Weightings	Fast and Slow (RMS detector)
Exchange Rate	3, 4, 5 or 6dB
Stabilization Time	10 seconds from power on
Threshold and Criterion Levels (From the setup, predefined in the built – in setup according to applicable standards)	User–defined setups in the following ranges :
	Threshold Level : 70 – 90dB in 1dB steps
	Criterion Level : 80, 84, 85 or 90dB
Criterion Level : 80, 84, 85 or 90dB	At 0.1dB above the top of the selected measurement range
At 0.1dB above the top of the selected measurement range	Under–Range Indications
High Level Detector	115dB
Keypad Lock	Lock and unlock by pressing key combinations: Up and right arrows to lock; left and down arrows to unlock
Clock	Real–time clock with calendar
Memory	Results from 50 measurements can be stored for later viewing and download
Measurement Control	Measurement Duration : May be set to 5, 10, 15, or 30 minutes or 1, 2, 4, 8, 10, 12, or 24 hours
Timers	Up to 16 timers(automatic start and stop)can be set(maximum up to one month ahead of measurement time)
Timer Controlled Started / Stop	Set up from the PC software or meter keypad
Logging	All measurement parameters values can be logged
Logging Period (LP)	1s, 2s, 5s, 10s, 15s, 20s, 30s, 1min, 2min, 5min, 10min, 15min, 20min, 30min or 60min
Logging Capacity	120000 values can be stored at any one time
Setup	Eight built–in (predefined) default setups are included. Nine additional user–defined setups can be stored
Output	USB interface
Power Supply	4×1.5V AAA Size (UM-4)Battery
Battery Indicator	Symbol indication battery voltage level in 4 steps. Indicator flashes when voltage is insufficient for operation
Operating Temperature & Humidity	0 – 50ºC (32 to 122ºF) ,10 – 90%RH
Storage Temperature & Humidity	-10 – 60ºC(14 to 140ºF) ,10 – 75%RH
Size	140x72x34mm
Weight	Approx. 350g (including batteries)

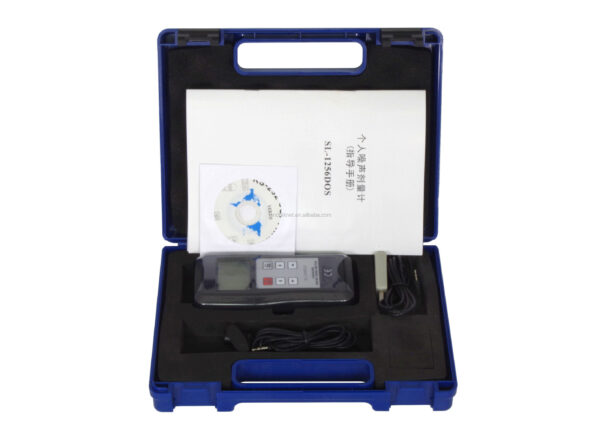

Accessories

Standard Accessories	Main Unit
	External Probe
	Screwdriver
	Carrying Case (B04)
	Operation Manual
Optional Accessories	USB Data with Software
Optional Accessories	Bluetooth Data Adapter with Software

Setup

Setup	OSHA-80	OSHA-90	MSHA-80	MSHA-90	DOD	ACGIH	ISO-85	ISO-90	User1-9	SLM
Measurement Range (dB)	70–140	70–140	70–140	70–140	70–140	70–140	70–140	70–140	70–140	70–140
Time Weighting	Slow	Slow	Slow	Slow	Slow	Slow	Fast	Fast	Fast	Slow
Frequency Weighting	A	A	A	A	A	A	A	A	A	A
Peak Frequency Weighting	Lin	Lin	Lin	Lin	Lin	Lin	C	C	C	Lin
Exchange Rate	5	5	5	5	4	3	3	3	3	3
Threshold (dB)	80	90	80	90	80	80	70	70	80	N/A
Criterion Level (dB)	90	90	90	90	85	85	85	90	90	N/A
Allow User to Change Setup	No	No	No	No	No	No	No	No	Yes	Yes

Measurements Parameters

OSHA-80	OSHA-90	MSHA-80	MSHA-90	DOD	ACGIH	ISO–85	ISO–90	User1-9	SLM
DOSE%	DOSE%	DOSE%	DOSE%	DOSE%	DOSE%	DOSE%	DOSE%	DOSE%	SPL
PDOSE%	PDOSE%	PDOSE%	PDOSE%	PDOSE%	PDOSE%	PDOSE%	PDOSE%	PDOSE%	MAX
TWA	TWA	TWA	TWA	TWA	LEPd	LEPd	LEPd	TWA	LEQ
PTWA	PTWA	PTWA	PTWA	PTWA	LEQ	LEQ	LEQ	PTWA	LEQ
LAVG	LAVG	LAVG	LAVG	LAVG	SEL	SEL	SEL	LAVG	PKZ
LEQ	LEQ	LEQ	LEQ	LEQ	SE(Pa²h)	SE(Pa²h)	SE(Pa²h)	LEPd
SEL	SEL	SEL	SEL	SEL	MAX	MAX	MAX	LEQ
MAX	MAX	MAX	MAX	MAX	PKZ	PKZ	PKZ	SEL
PKZ	PKZ	PKZ	PKZ	PKZ	L10	L10	L10	SE(Pa²h)
L10	L10	L10	L10	L10	L50	L50	L50	MAX
L50	L50	L50	L50	L50	L90	L90	L90	PKZ
L90	L90	L90	L90	L90	L95	L95	L95	L10
L95	L95	L95	L95	L95	L99	L99	L99	L50
L99	L99	L99	L99	L99	SPL	SPL	SPL	L90
SPL	SPL	SPL	SPL	SPL				L95
								99
								SPL
