Multimeter True RMS Datalogging UNI-T UT181A

Rp 9.800.000

Brand: UNI-T

UT181A adalah multimeter digital dengan perekaman tren, true RMS, filter low pass, konduktansi nS, pengukuran suhu ganda, dan banyak lagi. Dengan bantuan fitur pencatatan data, pengguna dapat menyimpan hingga 20.000 set data pengukuran dan menampilkannya pada grafik tren untuk pemantauan jangka panjang.

FITUR UNI-T UT181A

Penangkapan tren
Pencatatan data: 20000
Perbandingan data
LCD TFT warna 64k 3,5 inci
Pengukuran suhu ganda
Filter low pass
Baterai Li-ion 2000mAh
Waktu dan tanggal riil
Peak hold

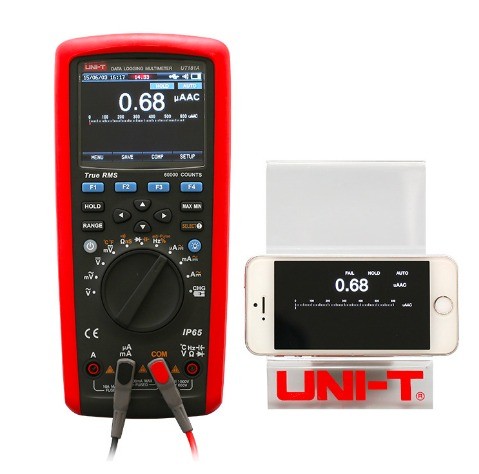

Bluetooth/APP
Kabel antarmuka USB/CD perangkat lunak PC
IP65

SPESIFIKASI UNI-T UT181A

Specifications	Range	UT181A
DC voltage (V)	1000V	±(0.025%+5)
AC voltage (V)	1000V	±(0.3%+30)
DC current (A)	10A	±(0.08%+10)
AC current (A)	10A	±(0.6%+20)
Resistance (Ω)	60MΩ	±(0.05%+2)
Admittance (nS)	60nS	±(2%+10)
Capacitance (F)	60mF	±(2%+5)
Frequency (Hz)	10Hz~60MHz	±(0.01%+5)
Temperature (°C)	-40°C~1000°C	±(1%+30)
Temperature (°F)	-40°F~1832°F	±(1.5%+50)
Features
Display count		60000
Auto/Manual range		√
Bandwidth (Hz)	100kHz	√
AC+DC/Continuity buzzer		√
Low pass filter	1kHz	√
dBV/dBm		√
Diode	Around 3V	√
Duty cycle	10%~90%	√
Dual temperature measurement	T1, T2, T1-T2, T2-T1	√
Data hold/Peak hold		√
Relative mode		√
Data logging	20000	√
Trend capture		√
MAX/MIN/AVG		√
Data time display/Data comparison		√
Backlight adjustment		√
Analog bar graph/USB interface		√
Mis-plug alarm		√
Battery indication/Auto power off		√
Rechargeable battery		√
Input protection		√
Input impedance for DCV	≥10MΩ	√
General Characteristics
Power	Li-ion battery: 7.4V 2000mAh
Display	3.5-inch 64K color TFT LCD (320 x 240)
Product color	Red and grey
Product net weight	638.6g
Product size	225mm x 103mm x 59mm

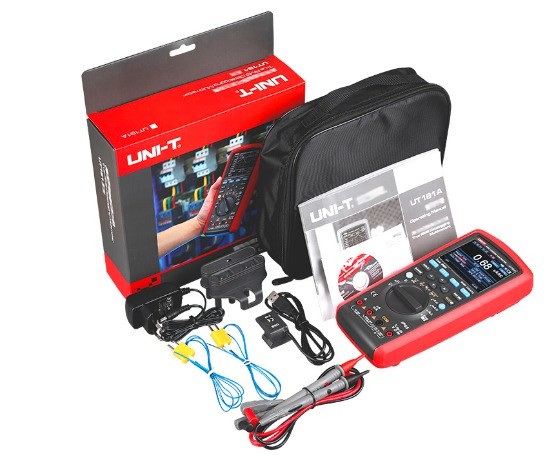

Standard accessories	Battery, test leads, temperature adaptor socket, point contact temperature probes, power adaptor socket, power adaptor, PC software CD, USB interface cable
Standard individual packing	Gift box, carrying bag, English manual
Standard quantity per carton	20pcs
Standard carton measurement	480mm x 385 mm x 505mm
Standard carton gross weight	25.3kg
Optional accessory	Bluetooth adaptor (UT-D07)
