Multifunction Anemometer PCE-AM 45

Rp 6.900.000

Brand: PCE Instrument

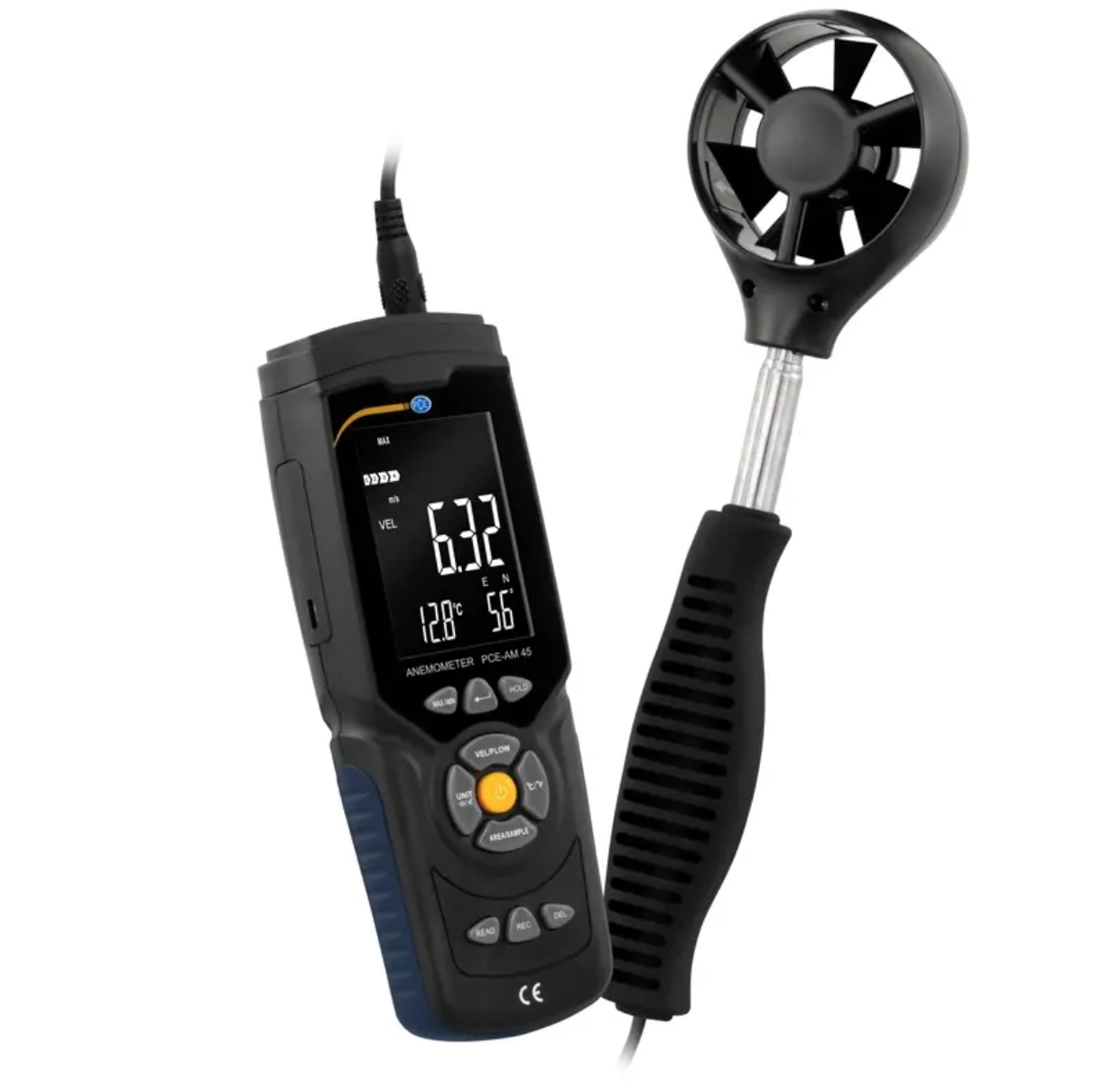

PCE-AM 45 adalah alat ukur genggam serbaguna yang dirancang untuk mengukur berbagai parameter lingkungan secara akurat, termasuk kecepatan angin, aliran udara (CMM/CFM), arah angin, suhu udara, dan kelembapan relatif. Dilengkapi dengan probe teleskopik, layar LCD dengan lampu latar, dan memori internal, alat ini sangat ideal untuk penggunaan di lapangan maupun di lingkungan industri dan HVAC.

FITUR PCE-AM 45

Pengoperasian baterai untuk penggunaan bergerak

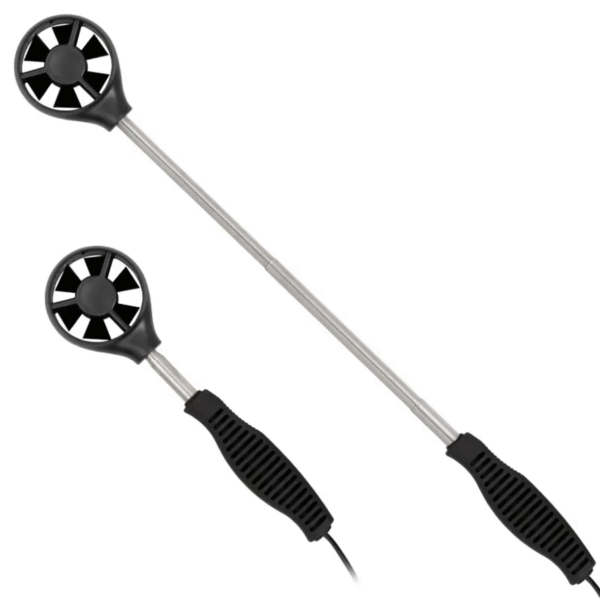

Probe teleskopik dengan panjang 270 … 540 mm / 10,63 … 21,26“
Pembukaan impeller 65 mm / 2,5″
Pengukuran kecepatan dan aliran volume
Rentang pengukuran 0,3 … 45,0 m/s / 0,9 … 147 ft/s

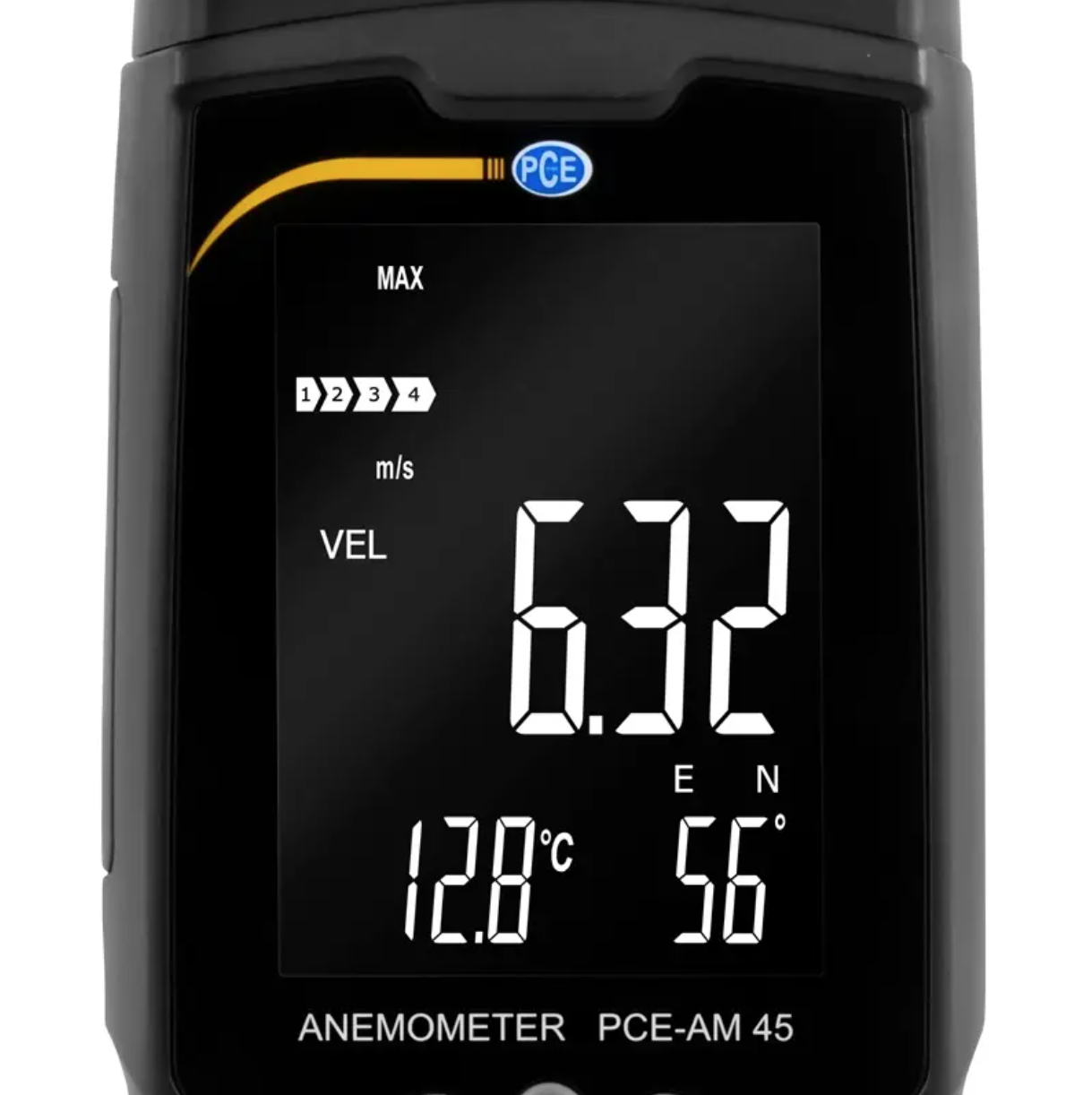

Layar LC dengan lampu latar

SPESIFIKASI PCE-AM 45

Wind speed	m/s
Measuring range	0.3 … 45.0 m/s
Resolution	0.01 m/s
Accuracy	±3 % ±0.1 m/s of measured value

Wind speed	ft/min
Measuring range	60 … 8800 ft/min
Resolution	0.01, 0.1, 1 ft/min
Accuracy	±3 % ±20 ft/min of measured value

Wind speed	knots
Measuring range	0.6 … 88.0 knots
Resolution	0.01 knots
Accuracy	±3 % ±0.2 knots of measured value

Wind speed	km/h
Measuring range	1.0 … 140.0 km/h
Resolution	0.01 km/h
Accuracy	±3 % ±0.4 km/h of measured value

Wind speed	mph
Measuring range	0.7 … 100 mph
Resolution	0.01 mph
Accuracy	±3 % ±0.2 mph of measured value

Wind direction
Measuring range	0 … 360 °
Resolution	1 °
Accuracy	– – –

Volume flow	CMM (m³/min)
Measuring range	0 … 999900 m³/min
Resolution	0.001 … 100 m³/min
Adjustable area	0.001 … 999 m²

CFM (FT³/min)
Measuring range	0 … 999900 ft³/min
Resolution	0.001 … 100 m³/min
Adjustable area	0.001 … 999 m³

Temperature measurement	°C
Measuring range	0 … 45 °C
Resolution	0.1 °C
Accuracy	±1.0 °C

°F
Measuring range	32 … 113 °F
Resolution	0.18 °F
Accuracy	±1.8 °F

Moisture measurement
Measuring range	10 … 90 % RH
Resolution	0.1 % RH
Accuracy	±5 % RH

Further specifications
Probe length	270 … 540 mm / 10.63 … 21.26″
Probe opening	Ø65 mm / 2.5″
Interface	Micro USB
Data memory	960 measured values
Power supply	4 x 1.5 V AAA batteries
Power consumption	15 … 20 mA without background lighting
	20 … 25 mA with background lighting
	0 … 8 µA standby
Battery discharged display	<4.5 V
Operating conditions	0 … 50 °C / 32 … 122 °F, 40 … 80 % RH, non-condensing
Storage conditions	-20 … 60 °C / -4 … 140 °F, < 80 % RH, non-condensing
Dimensions	70 x 194 x 35 mm / 2.7 x 7.6 x 1.3″
Weight	400 g / 14.1 oz
