MISOL WS1080 Weather Station Touch Panel Viewer Console

MISOL WS1080 Wireless Weather Station adalah stasiun cuaca nirkabel profesional yang dirancang untuk memantau berbagai parameter atmosfer secara komprehensif dan real-time. Alat ini cocok untuk penggunaan rumahan, hobi, maupun untuk keperluan meteorologi dasar. Dengan sensor luar terpadu yang mencakup pengukuran suhu, kelembapan, curah hujan, kecepatan angin, arah angin, dan tekanan udara, WS1080 menyediakan gambaran lengkap kondisi cuaca di lokasi Anda.Data dari sensor luar ditransmisikan ke konsol (receiver) melalui sinyal radio dengan jangkauan hingga sekitar 100 meter dalam kondisi ideal.

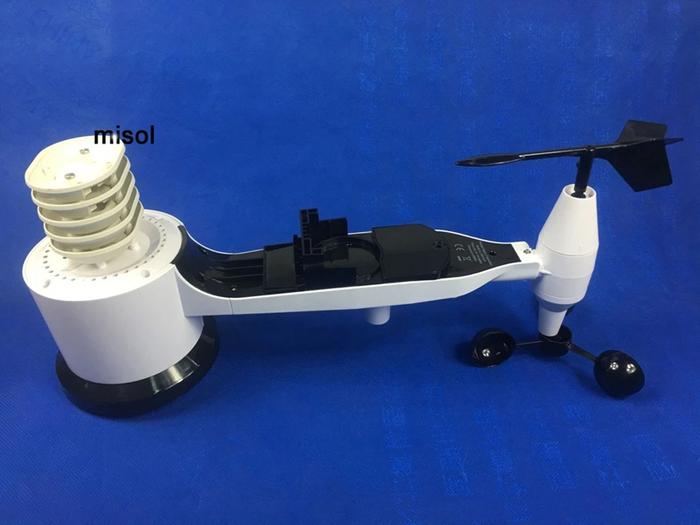

Outdoor Sensors Specification

• Wind Sensor (Anemometer):
• Measuring Method: Mechanical
• Wind Speed:
• Range: 0 — 50 m/s
• Accuracy: < 5 m/s: ± 1 m/s | ≥ 5 m/s: ± 10%
• Wind Direction:
• Range: 0° — 359°
• Temperature Sensor:
• Range: -40°C — 60°C
• Accuracy: ±1°C
• Resolution: 0.1°C
• Humidity Sensor:Range: 10 — 99%
• Accuracy: ±5%Resolution: 1%
• Light Sensor: Not Available
• Barometric Pressure Sensor: Not Available
• Rain Sensor
• Measuring Method: Mechanical
• Range: 0 — 9999 mm
• Accuracy: ± 6 %
• Resolution:
• Connectivity: Wireless RF
• Radio Frequency: 433MHz
• Transmition Range (Outdoor Sensor to Gateway): Up to 100m (no obstacle)
• Sensor Reporting Interval: 48s
• Power Source: Battery AA x 2
• Dimension: Approx. 46 x 12 x 20 cm
• Ceritification: CE

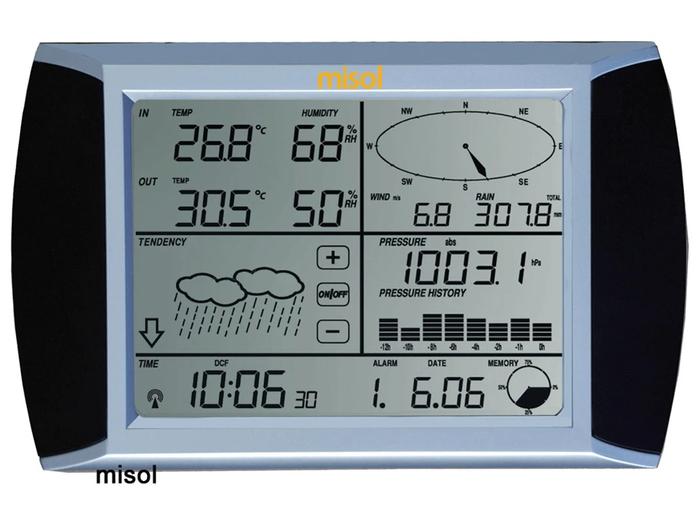

Console (Viewer) Specification

• Temperature Sensor:
• Range: 0°C — 50°C
• Accuracy: ± 1°C
• Resolution: 0.1°C
• Humidity Sensor:
• Range: 10 — 99 %
• Accuracy: ± 5 %
• Resolution: 1 %
• Barometric Pressure Sensor:
• Range: 300 — 1100 hPa
• Accuracy: ± 3 hPA
• Resolution: 0.1 hPa
• Date and Time Data: Yes
• Wind Speed Data: Yes
• Wind Direction Data: Yes
• Temperature Data: Yes (Indoor and Outdoor)
• Humidity Data: Yes (Indoor and Outdoor)
• Barometric Data: Yes
• Dew Point Data: Yes
• Light Intensity Data: Not Available
• UV Index Data: Not Available
• Rain Volume Data: Yes
• Forecast Feature: Yes
• Sunrise/Sunset: No
• Moon Phase: No
• Alarm: Yes
• Data Record: Yes
• Transfer Data to PC: Yes (via USB cable)
• Wireless Connection: Not Available
• Connection to Outdoor Sensors: Wireless RF 433 MHz
• Display Backlight: Yes
• Dimension: Approx. 23 x 14.5 x 3.5 cm
• Power Source: Battery AA x 3

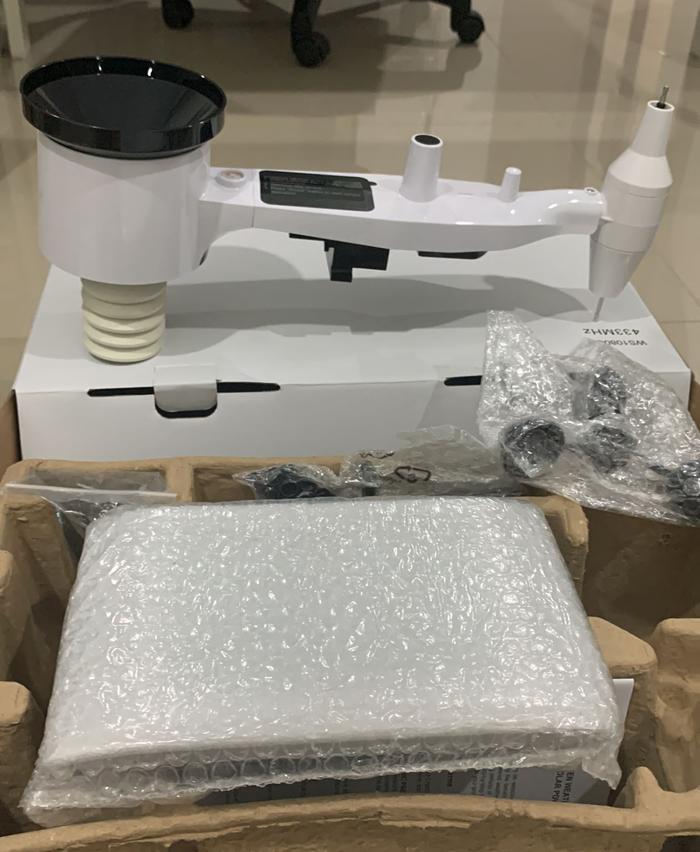

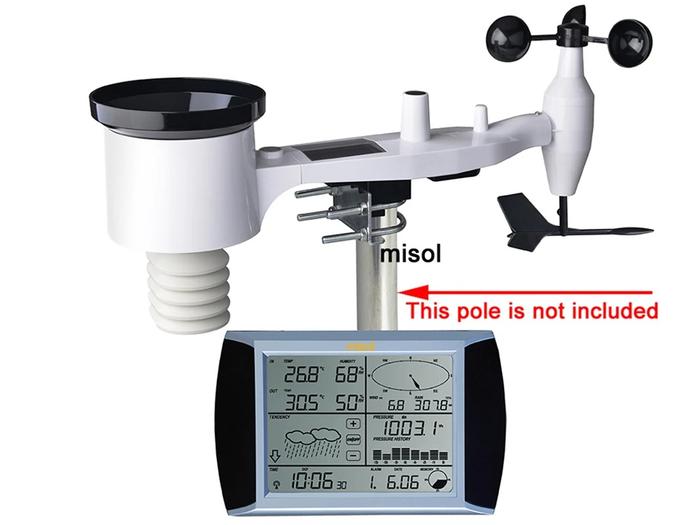

Paket Tidak Termasuk Baterai dan Tiang Instalasi
