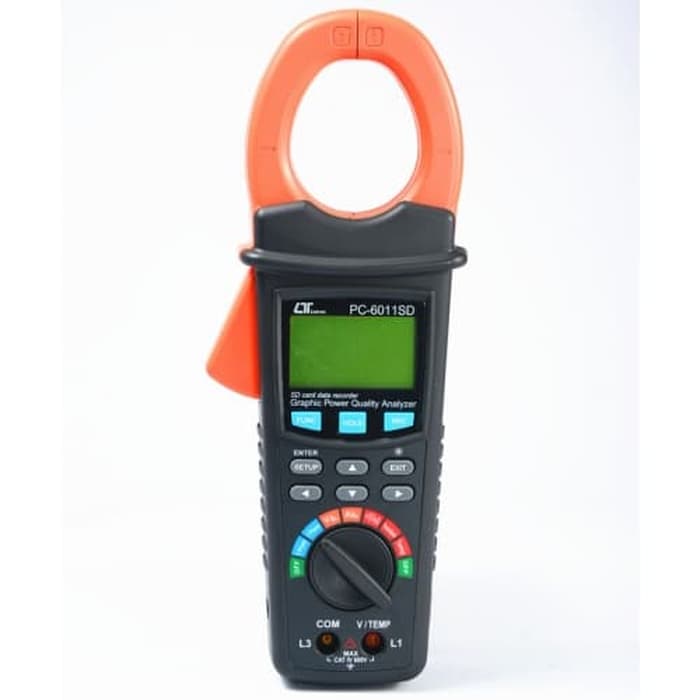

LUTRON PC-6011SD 3-phase Clamp Power Analyzer

Lutron PC-6011SD 3-phase Clamp Power Analyzer adalah perangkat yang dirancang untuk mengukur dan menganalisis parameter daya listrik dalam sistem tiga fase. Ini umumnya digunakan dalam pengaturan industri dan komersial untuk menilai dan memantau konsumsi daya, efisiensi energi, dan karakteristik kelistrikan dari sistem dan peralatan kelistrikan.

Features Lutron PC-6011SD Clamp Power Analyzer

• Power quality analyzer for single-phase or balanced three-phasesystem.
• Voltage and Current are the True RMS value.
• ACV input impedance is 10 Mega ohms.
• True Power ( KW、MW、GW ) measurement.
• Apparent Power ( KVA、MVA、GVA ) measurement.
• Reactive Power ( KVAR、MVAR、GVAR) measurement.
• Power Factory ( PF )、Phase Angle (Φ ) measurement.
• Energy ( KWh、KVAh、KVARh、PFh ) measurement.
• Voltage measurement range: 10 to 600 ACV.
• Current measurement range: 5 to 2000 ACA.
• Graphic Phasor Diagram.
• Voltage and Current harmonic analysis ( 1-50th order ).
• Voltage and Current Total Harmonic Distortion analysis ( THD ) measurement.
• Voltage and Current waveforms show.
• Peak-to-Peak voltage and current measurement.
• Capture Transient events ( including Dip, Swell and Outage ) with programmable threshold ( % ).
• Thermocouple Temp. sensor:Type K ( -100.0℃ to 199.9℃ /200℃ to 1300℃ ), ℃/℉.
• Programmable PT ratio ( 1 to 1000 ).
• Safety Standard : IEC 1010, CAT IV 600V.
• Built-in clock and Calendar, real time data record with SD memory card , sampling time set from 2 to 7200 seconds. Just slot in the SD card into the computer, it can down load the all the measured value with the time information ( year, month, data, hour, minute second ) to the Excel directly, then user can make the further data analysis by themselves.
• Allow save the LCD screen picture to the photo BMP file, it is the useful tool for the user to make the further analysis Micro SD CARD 32 GB maximum supported capacity Powered by AA ( UM-3 ) DC 1.5 V X 2 batteries (
• Alkaline type ) or DC 9V adapter ( linear 110V/220V ).
• Computer data output, can cooperate with optional USB Cable/USB-01, RS232 cable/UPCB-02 and Data
• Acquisition software, SW-U811-WIN.
• Optional type K probe: TP-11.

Specifications Lutron PC-6011SD Clamp Power Analyzer

• Circuit: Custom single-chip microprocessor LSI circuit
• Display:
  * LCD Size: 3.2 X 2.4″ (60 X 44.4 mm)
  * Dot Matrix backlit LCD (128 X 64 pixels)
• Measurements:
  * ACV
  * ACA
  * KW / KVA/ KVAR/ PF
  * KWH/KVAH/KVARH/PFH
  * Power factor
  * Phase angle
  * Frequency
  * Harmonics display
  * Temperature
• Wire configurations: 1 Phase, 3 Phase
• Voltage ranges: 10 ACV to 600 ACV (Auto Range)
• Current ranges: 5 ACA to 2000 ACA (Auto Range)
• Safety standard: IEC1010 CAT IV 600 V
• ACV input impedance: 10 M ohms
• Clamp frequency response: 40 Hz to 1 KHz
• Tested clamp: 45 to 65 Hz
• Over-load protection:
  * ACV: 720 ACV RMS
  * ACA: 2100 ACA with clamp probe
• Over-range:
  * LCD display show ” OL “.
  * The data save into the SD card will show ” 9999 ” or ” 999 ” (overleap the decimal point).
• Data Hold: Freezes displayed reading
• Datalogger:
  * Real time data logger, saved the data into SD memory card and down load the all the measured value with the time information ( year/month/data/hour/minute/second ) down load to the Excel.
  * Sampling time for data logger : 2 seconds to 7200 seconds, the during of setting step are 2 seconds
  * Data error no. : ≦ 0.1% no. of total saved data typically.
• Data Recording: Micro SD memory card
• Sampling Time: Approx. 1 second
• Data Output USB/RS232:
  * Computer interface
  * Connect the optional USB cable USB-01 will get the USB plug.
  * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
• Operating Temperature: 0 to 50 ( 32 to 122 ).
• Operating Humidity: 80% Relative Humidity max.
• Power Supply:
  * DC 1.5V, AA ( UM-3 ) Battery X 2 PCs (Alkaline or heavy-duty battery).
  * AC to DC 9V power adapter ( LINEAR 110/220V )
• Power Consumption: 60 mA DC
• Max Conductor size: Clamp can accommodate up to 2.2″ (57 mm) diameter
• Dimensions: 11.0 X 4.2 X 1.9″ (280 X 106 X 47mm) Clamp Jaw: 3.5″ (90 mm)
