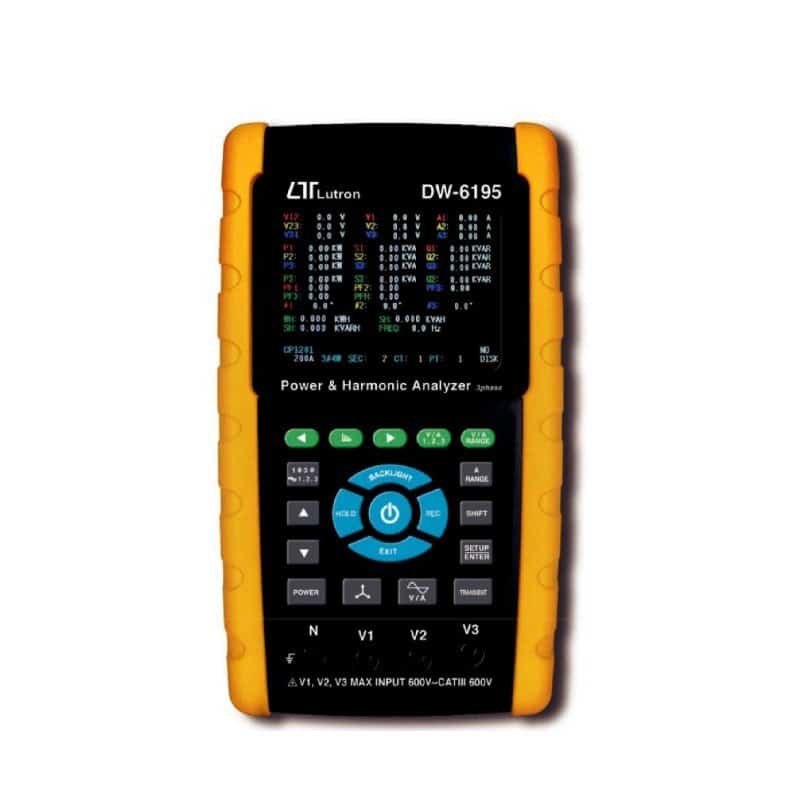

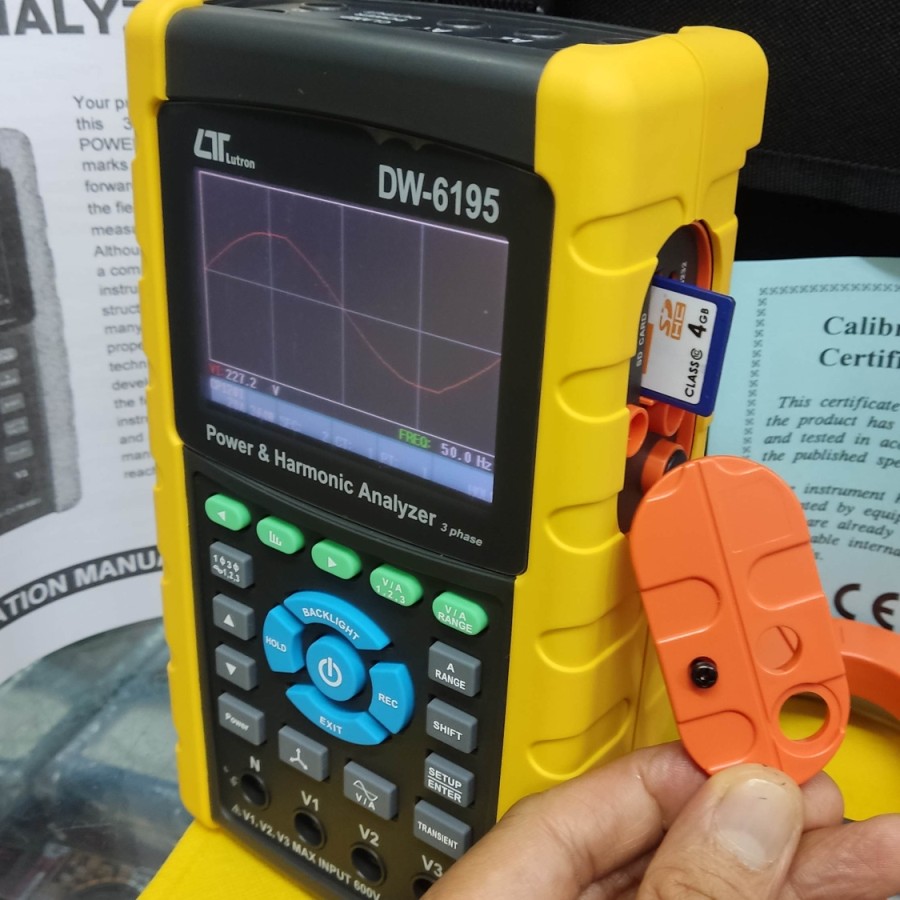

Lutron DW-6195 3 Phase Power Analyzer w/ Harmonic Measurement

Lutron DW-6195 3 Phase Power Analyzer w/ Harmonic Measurement adalah sebuah alat ukur atau alat uji kelistrikan daya yang dapat dilakukan untuk mengukur berbagai parameter pengukuran kelistrikan. Digunakan oleh para teknisi dalam melakukan audit energy dimana data yang didapatkan bisa digunakan untuk pencegahan atau preventive maintenance guna mencegah kebocoran atau gangguan lain dalam kelistrikan yang menyebabkan terganggunya proses produksi yang berlangsung.

Fitur & Spesifikasi Lutron DW-6195

• Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W
• 3 current probes (CP-1201) are included, if change the current probes, the calibration procedures are not necessary
• Current probe input signal/ranges with selection:
  Input signal (ACV): 200 mV/300 mV/500 mV/1 V/2 V/3 V
  Ranges (ACA): 20 A/200 A/2000 A/30 A/300 A/ 3000 A
• Meter can cooperate the universal current probes
• Measurement: V (phase-to-phase), V (phase-to-ground), A (phase-to-ground)
  KW / KVA / KVAR / PF (phase)
  KW / KVA / KVAR / PF (system)
  KWH / KVAH / KVARH / PFH (system) Phase angle
• Harmonics display (1-50th order)
• Simultaneous display of Harmonics and Wave form
• Display of Waveform with Peak Values
• Analysis of Total Harmonic Distortion (THD)
• Graphic Phase diagram with 3-Phase system parameters
• 3 phase Voltage or Current Unbalanced Ratio (VUR, AUR) and Unbalanced Factor
• Calculated Unbalanced Current through Neutral Line (An)
• Capture Transient events (including Dip, Swell and Outage) with programmable threshold (%)
• Programmable CT ratio (1 to 600) and PT ratio (1 to 1000)
• ACV input impedance is 10 Mega ohms
• Safety Standard: IEC 1010, CAT III 600V
• User can order the meter only (without the current probes) with the special request as intend to cooperate their own current probes

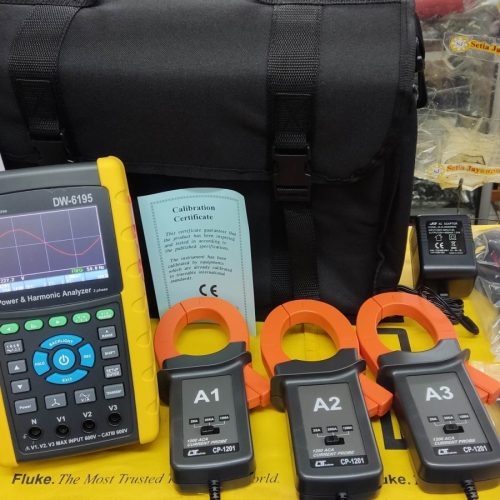

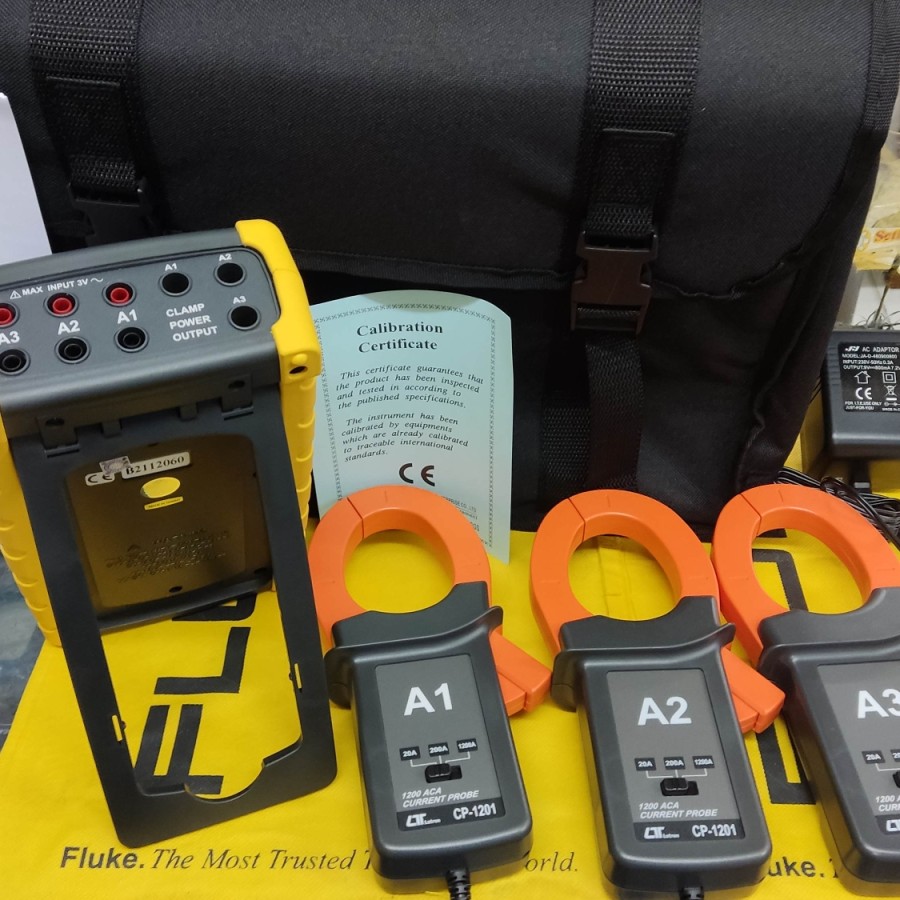

Aksesoris Standar

• Instruction manual
• Test Leads (TL88-4AT), 1 Set (4 PCs)
• Alligator clips (TL88-4AC), 1 Set (4 PCs)

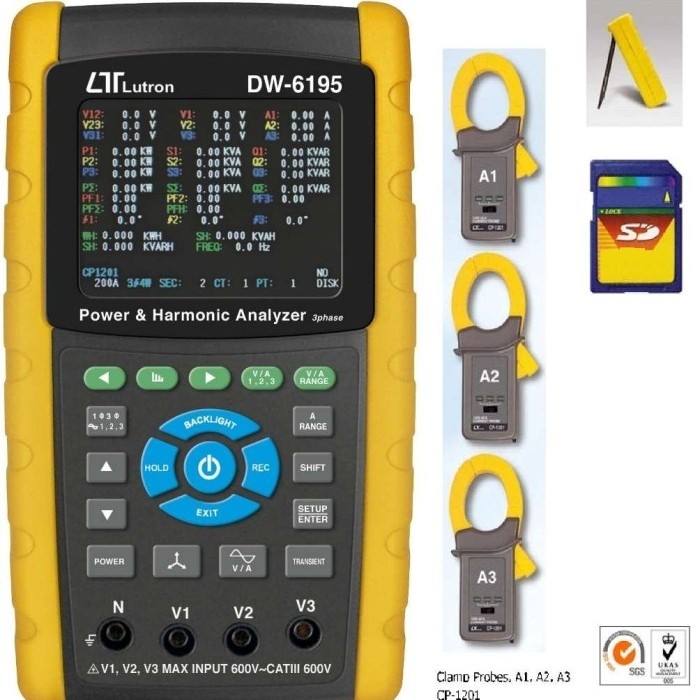

• Clamp Probe (CP-1201), 3PCs
• AC to DC 9V adapter, 1 PC
• SD card (2 GB), 1 PC
• Carrying bag, 1 PC
