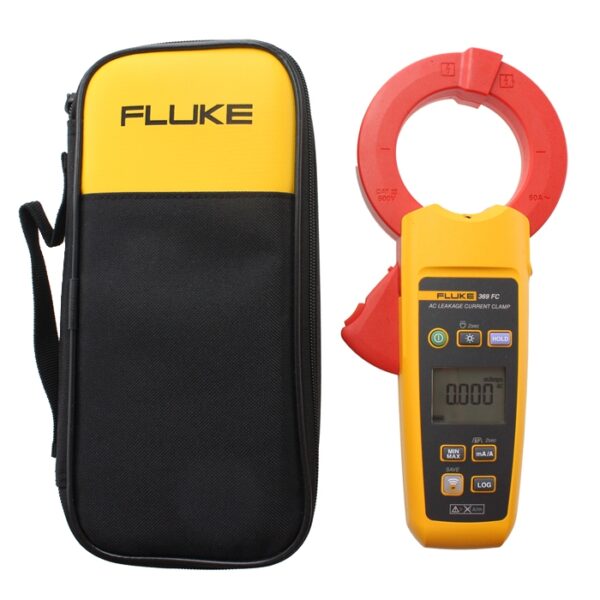

Leakage Current Fluke 369

Rp 15.500.000

Brand: Fluke

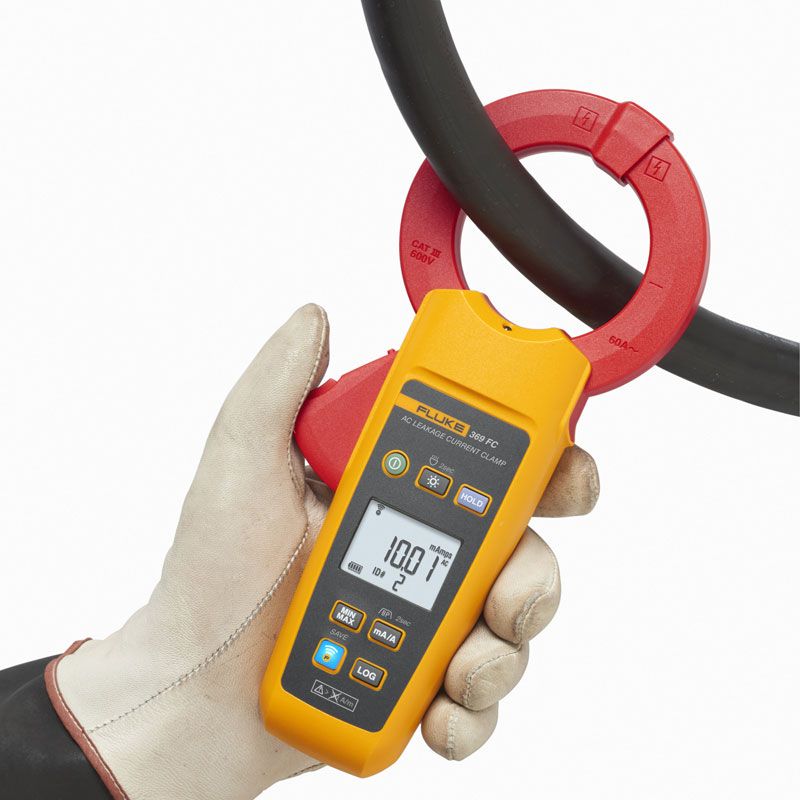

Fluke 369 FC memiliki rahang berukuran 61 mm yang sangat besar untuk bekerja dengan konduktor ekstra besar. Rahang penjepit terlindung sepenuhnya untuk secara akurat menangkap sinyal kebocoran yang sangat kecil, dan untuk meminimalkan interferensi elektromagnetik eksternal.

FITUR Fluke 369

Pengukuran true-rms untuk akurasi saat mengukur bentuk gelombang non-sinusoidal yang kompleks
Pembukaan rahang 61 mm
Resolusi tertinggi 1 μA, berukuran hingga 60 A
Fungsi filter yang dapat dipilih menghilangkan kebisingan yang tidak diinginkan
Pembacaan Maks/Min/Rata-rata dan fungsi tahan
Lampu kerja LED menghadap ke depan untuk digunakan di lemari kabel gelap
Tampilan dengan lampu latar; lampu latar otomatis mati dan mati otomatis untuk
memperpanjang masa pakai baterai
Peringkat keamanan CAT III 600V

SPESIFIKASI Fluke 369

Electrical Specifications
Measurement function	Alternating current
AC ampere range	3 mA, 30 mA, 300 mA, 3 A, 30 A, 60 A
Range selection	mA / A: manual selection 3 mA / 30 mA / 300 mA: automatic selection 3 A / 30 A / 60 A: automatic selection
Range / Resolution	3 mA¹ / 0.001 mA
	30 mA / 0.01 mA
	300 mA / 0.1 mA
	3 A / 0.001 A
	30 A / 0.01 A
	60 A / 0.1 A
Accuracy – filter activated (40 to 70 Hz), filter off (40 to 1 kHz)²	3 mA – 30 A 60 A	1% + 5 digits 2% + 5 digits
Frequency	40 Hz to 1 kHz
Crest Factor	3
After calibration accuracy is valid for one year. Accuracy is expressed as ± (% of reading + digits). Reference conditions 23 ±5 °C and a maximum relative humidity of 80%. ¹The minimum value is 10 μA rms. ²Outside of the TC / °C 18 °C to 28 °C, 0.02 + 1
Physical
Display (LCD)	Digital readout: 3300 count
Display refresh rate	4 times / sec
Maximum conductor diameter	61 mm
Dimensions	257 x 116 x 46 mm
Weight	600 g
Battery	2 AA, IEC LR6, NEDA 15A, alkaline
Battery life	Expected battery life, without using backlight and spotlight, is more than 150 hours
Automatic shut-down	Meter automatically shuts down after 15 minutes of inactivity
Safety and Environmental Specifications
General safety	IEC 61010-1: Pollution Degree 2
Measurement safety	IEC 61010-2-032: CAT III 600 V / CAT IV 300 V
Operating temperature	-10 °C to +50 °C
Storage temperature	-40 °C to +60 °C
Operating humidity	Non-condensing (<10 °C)
	90% relative humidity (10 °C to 30 °C)
	75% relative humidity (30 °C to 40 °C)
	45% relative humidity (40 °C to 50 °C)
Protection class	IEC 60529: IP30 (jaw closed)
Operating altitude	2000 m
Storage altitude	12000 m
Current sensor action category	IEC 61557-13: Class 2, ≤30 A / m
Electromagnetic compatibility (EMC)
International
IEC 61326-1	Industrial Electromagnetic Environment
CISPR 11	Group 1 Class B
Group 1	Generated inside the equipment and / or use radio frequency energy associated with conducting the energy for the device’s own internal functions is essential.
Class B	Equipment for home appliances and residential buildings directly connected to a low voltage power supply network equipment. When this device is connected to a test object, it may exceed the emission levels produced by CISPR 11 requirements. Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment)
Class A	This product meets the requirements of industrial electromagnetic equipment, vendors or users should be aware of this. This device is intended for use in a commercial environment, instead of the home environment. USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
