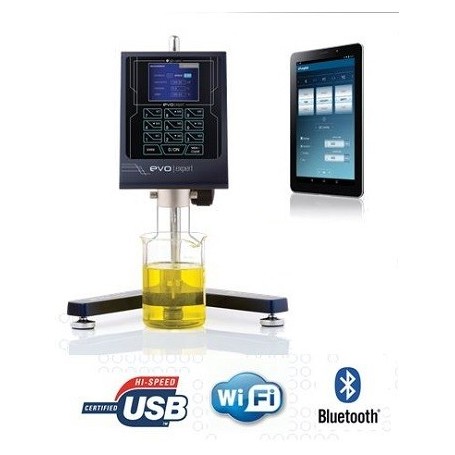

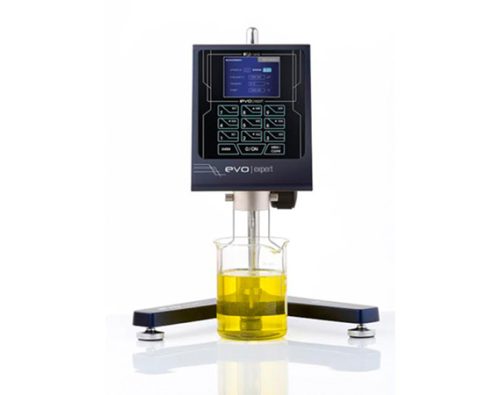

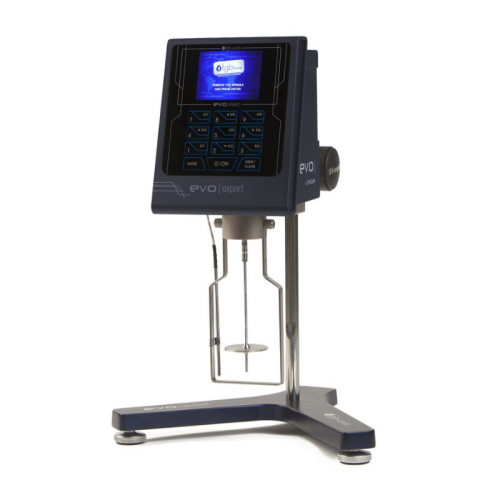

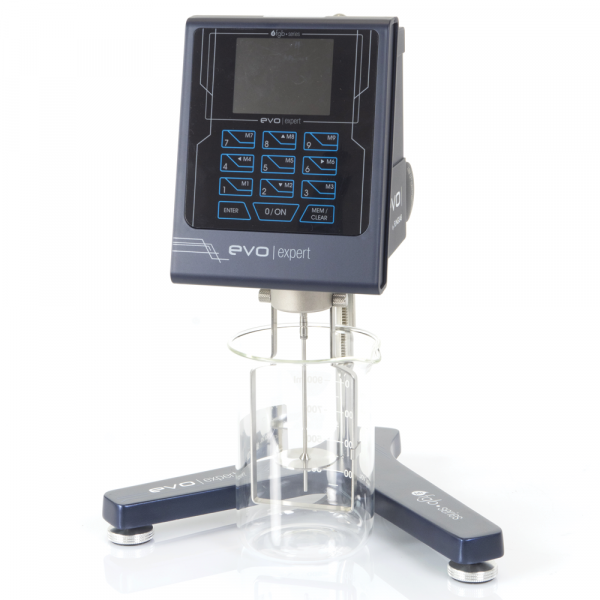

Fungilab FGB EVO Expert Viscometer

Brand: Fungilab

APM/B : Small Sample Adapter without circulation jacket (without TL or TR spindles) Sample volume (6.7 – 13 ml.) Compatible with Brookfield viscometers
LCP : Low Viscosity Adapter with circulation jacket (with spindle) Sample volume (16 ml.) Compatible with Brookfield viscometers
LCP/B : Low Viscosity Adapter without circulation jacket (with spindle) Sample volume (16 ml.) Compatible with Brookfield viscometers
HELDAL : Helix Drive Unit Accessory for measuring non-flowing substances viscosity (with spindles)
THERMOSPHERE : Temperature control unit up to 300 ºC

Fungilab FGB EVO Expert Viscometer adalah viskosimeter canggih yang dikembangkan oleh Fungilab. Viskosimeter ini dirancang untuk memberikan pengukuran viskositas yang akurat dan dapat diandalkan dalam berbagai aplikasi laboratorium. Teknologi Sensor dan Kecepatan Rotor: Fungilab FGB EVO Expert dilengkapi dengan teknologi sensor suhu yang canggih untuk mengukur suhu sampel dengan presisi tinggi. Selain itu, viskosimeter ini memiliki pilihan kecepatan rotor yang dapat disesuaikan, memungkinkan pengguna untuk mengatur kecepatan rotor sesuai dengan kebutuhan pengukuran.

Fungilab FGB EVO Expert Viscometer adalah pilihan ideal untuk laboratorium yang membutuhkan viskosimeter yang dapat diandalkan, akurat, dan mudah digunakan. Dengan fitur-fitur canggihnya, viskosimeter ini memungkinkan pengguna untuk melakukan pengukuran viskositas dengan presisi tinggi dalam berbagai aplikasi industri, penelitian.

FITUR

Aplikasi fungilab yang mudah digunakan.
Antarmuka Bluetooth.
Layar TFT berwarna untuk pembacaan yang mudah dan pengenalan data yang cepat.
Papan tombol sentuh penuh yang intuitif: data di ujung jari Anda.
Koneksi USB baru: Tipe generasi 2.0 untuk mengunduh data ke Pc atau Flashdisk.
Koneksi Bluetooth memungkinkan percobaan kami dialihkan ke Tablet.

SPESIFIKASI

SCREEN DATA
Selected speed	rpm
Selected spindle	SP
Viscosity reading	cP (mPa·s) or cSt
Percentatge of full scale	%
Sample temperature	ºC or ºF
Shear Rate (with coaxial spindles)	SR (s-1)
Shear Stress (with coaxial spindles)	SS (N/m2)
Density (introduced by the user)	g/cm3

VISCOSITY READING
Dynamic viscosity	cP or mPa·s
Kinematics viscosity	cSt
Units Converter	from SI to CGS

PROGRAM FEATURES
Time to torque: Ending of the test upon reaching a programmed torque
Time to stop: Ending of the test upon reaching a programmed time
Multistep: posibility to programme several essays in a successive way
Ramps: essay programation with an initial and final speed in an specific time
10 working memories

OTHER MAIN FEATURES
AUTO-TEST with visual and resonant alarm
AUTO-RANGE function
Temperature Reading through PT100 probe
User-enabled viscosity and temperature calibration
6 language options
Port: USB
Datalogger: Posibility to tranfer data to a pendrive into Excel format
Statistics: Posibility to see data in graphics
Download all data through the bluetooth app

Spindles

AISI 316 Stainless steel spindle, easily to identify according to its letter and number, in terms of the range of viscosity. Our units fulfills the next standards: These are the standards our units follow: BS: 6075, 5350

BS: 6075, 5350
ISO:2555,1652
ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716

Standard delivery

The equipement is supplied complete with standard spindles
- 4 spindles for L model
- 6 spindles for R and H models
Viscometer stand
Spindle protector
Temperature probe PT100
Carring case
USB cable
External power supply

TECHNICAL SPECIFICATIONS

Precision: +/- 1% full scale of range
Resolution: For a minus viscosity of 100 cP : 0.01 cP For a major viscosity of 1000 cP : 0.1 cP For a major viscosity of 5000 cP : 1.0 cP For a major viscosity of 10.000 cP : 5.0 cP For a major viscosity of 25.000 cP : 10.0 cP For a major viscosity of 50.000 cP : 25.0 cP For a major viscosity of 100.000 cP : 100.0 cP For a major viscosity of 1.000.000 cP : 1.000.0 cP
Repeatability: 0.2%
Temperature probe features: Temperature limits: -40ºC to 300ºC -40ºF to 572ºF Resolution: 0.1ºC / -17.722 ºF Precision: +/- 0.2ºC / +/- 17.666 ºF Type of probe: PT100
Supplied at 110-240VAC, 50/60 Hz.
Software: Fungilab Data Boss The Fungilab Data Boss software complies the FDA 21CFR PART 11 regulation

ACCESSORIES

APM : Small Sample Adapter with circulation jacket (without TL or TR spindles) Sample volume (6.7 – 13 ml.) Compatible with Brookfield viscometers
APM/B : Small Sample Adapter without circulation jacket (without TL or TR spindles) Sample volume (6.7 – 13 ml.) Compatible with Brookfield viscometers
LCP : Low Viscosity Adapter with circulation jacket (with spindle) Sample volume (16 ml.) Compatible with Brookfield viscometers
LCP/B : Low Viscosity Adapter without circulation jacket (with spindle) Sample volume (16 ml.) Compatible with Brookfield viscometers
HELDAL : Helix Drive Unit Accessory for measuring non-flowing substances viscosity (with spindles)
THERMOSPHERE : Temperature control unit up to 300 ºC

CODE	MODEL	MEASURING RANGE (CP)	SPEED (R.P.M)	NUMBER OF SPEEDS
VE320003BT	EVO EXPERT L	*1 – 6.000.000	0.01 – 250	2600
VE320002BT	EVO EXPERT R	25 – 40.000.000	0.01 – 250	2600
VE320001BT	EVO EXPERT H	200 – 320.000.000	0.01 – 250	2600

The viscosity range of the equipment is referenced between 0.01 and 100 rpm.

PPR
Fast spindle switch (push plug and release)

CODE	MODEL	MEASURING RANGE (CP)	SPEED (R.P.M)	NUMBER OF SPEEDS
VE321003BT	EVO EXPERT L + PPR	*1 – 6.000.000	0.01 – 250	2600
VE321002BT	EVO EXPERT R + PPR	25 – 40.000.000	0.01 – 250	2600
VE321001BT	EVO EXPERT H + PPR	200 – 320.000.000	0.01 – 250	2600
