Fluke Two-pole Voltage and Continuity Testers

Fluke Two-pole Voltage and Continuity Testers

Brand: Fluke

Designed according to IEC EN 61243-3:2014 to verify the absence of voltage – even with discharged batteries.
CAT IV 600 V, CAT III 690 V safety rating
With 4 ways to indicate the presence of voltage – LED indicator, LCD display, audible tone or tactile feedback, always know if hazardous voltage is present (digital display on T130, T150, vibration indicator on T110, T130, T150)

Fluke menawarkan rangkaian penguji tegangan dan kontinuitas dua kutub yang banyak digunakan oleh teknisi listrik dan profesional di industri kelistrikan. Penguji ini dirancang untuk memberikan pengukuran level tegangan dan kontinuitas yang andal dan efisien di sirkuit listrik.

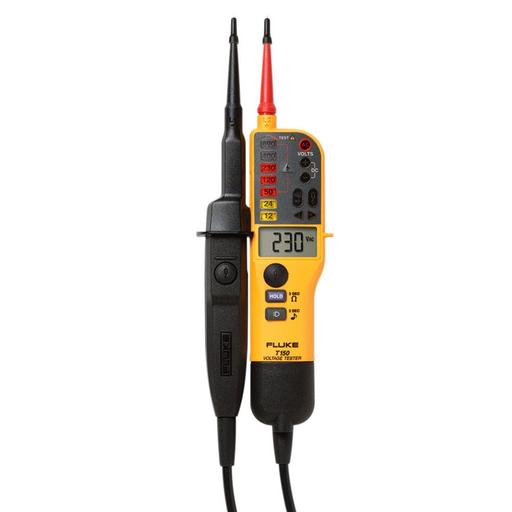

Fluke T150 Voltage and Continuity Tester dengan pembacaan LCD dan pengukuran resistansi tambahan

Fluke Two-pole Voltage and Continuity Tester memberi Anda hasil pengujian cepat sesuai kebutuhan Anda, dengan tombol besar yang mudah digunakan, lampu latar terang, dan indikator fisik dan terdengar jelas yang dirancang untuk situasi kerja apa pun. Pengukuran resistansi hingga 1999 Ω. Tahan tampilan. Desain ergonomis yang ditingkatkan mudah digunakan (bahkan dengan sarung tangan) dan menawarkan docking probe yang cepat dan aman.

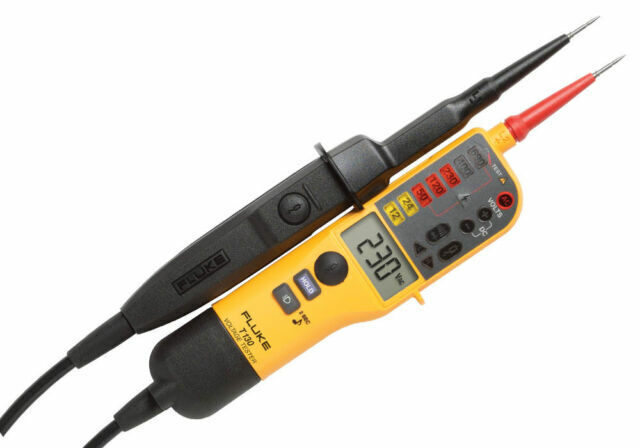

Fluke T130 Voltage and Continuity Tester dengan pembacaan LCD backlit

Fluke T130 Voltage and Continuity Tester dengan tombol besar dan mudah digunakan, indikator LED dengan lampu latar terang dan layar LCD, penahan layar, dan indikator voltase getar dan terdengar jelas yang dirancang untuk situasi kerja apa pun.

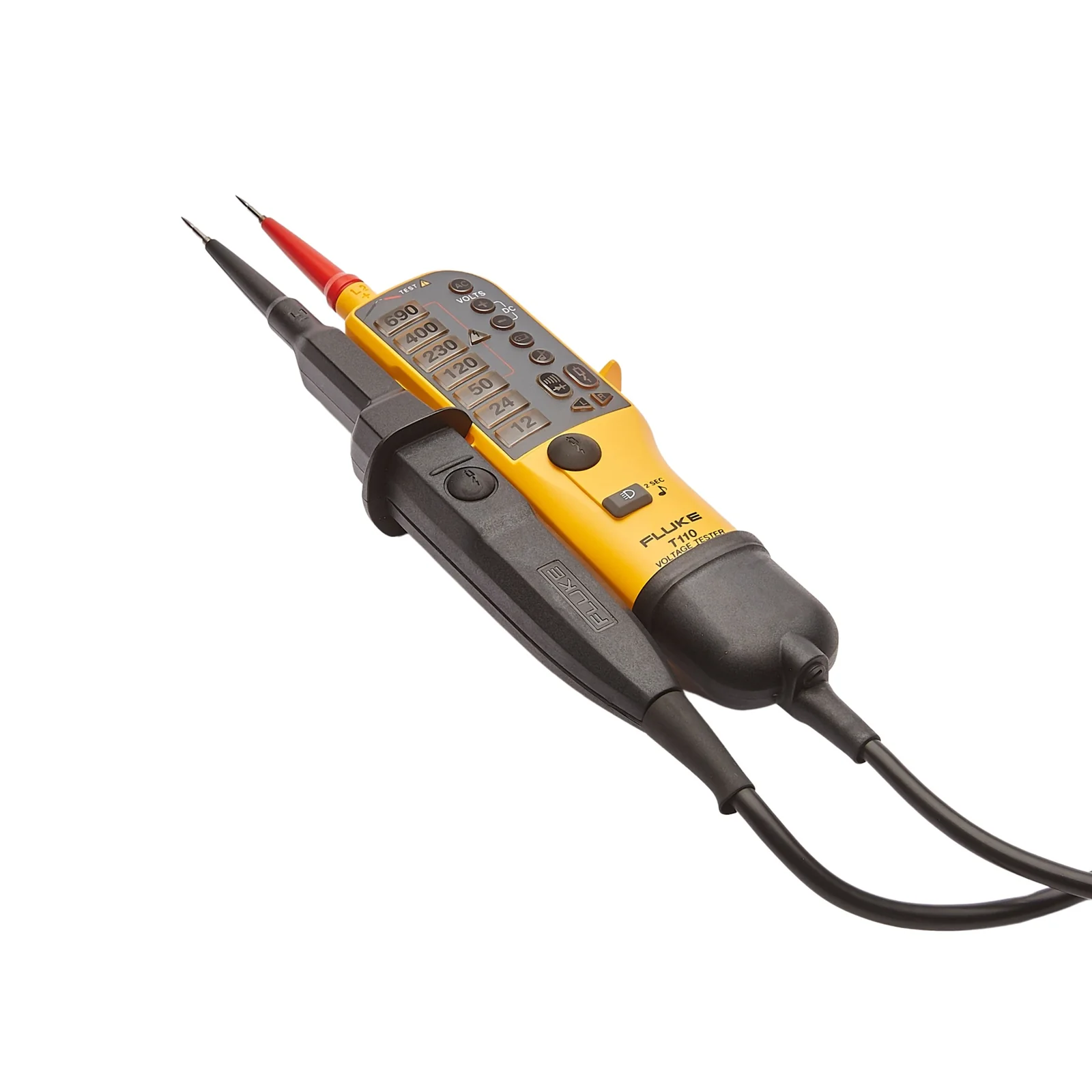

Fluke T110 Voltage, Penguji Kontinuitas dengan beban yang dapat dialihkan

Fluke T110 Voltage and Continuity Tester dengan senter listrik, indikator LED dengan lampu latar, indikator voltase getar dan terdengar jelas memungkinkan Anda bekerja dengan percaya diri, sambil mendapatkan hasil tes seperti yang Anda inginkan.

Fluke T90 Basic Voltage and Continuity Tester

Fluke T90 Voltage and Continuity Tester yang ringkas memberi Anda hasil pengujian cepat seperti yang Anda butuhkan dalam desain yang ramping. Tombol besar dan mudah digunakan, indikator LED dengan lampu latar yang terang, dan indikator suara yang jelas memberikan hasil yang cepat dalam situasi kerja apa pun.

Fitur Fluke Two-pole Voltage and Continuity Testers

Fluke’s two-pole voltage and continuity testers are built to work the way you work. They give you the best combination of safety, ease-of-use and fast answers available anywhere.

Designed according to IEC EN 61243-3:2014 to verify the absence of voltage – even with discharged batteries.
CAT IV 600 V, CAT III 690 V safety rating
With 4 ways to indicate the presence of voltage – LED indicator, LCD display, audible tone or tactile feedback, always know if hazardous voltage is present (digital display on T130, T150, vibration indicator on T110, T130, T150)

Spesifikasi: Fluke Two-pole Voltage and Continuity Testers

The complete family of Fluke Two-Pole Voltage and Continuity testers lets you choose the features, functions, and price/performance to fit your applications and preferences.

Fluke voltage and continuity tester selection guide

Features	T150	T130	T110	T90
Backlit LED indicator	•	•	•	•
Backlit LCD digital display	LCD	LCD
Continuity test—visual results	•	•	•	•
Continuity test—audible results	• with on/off	• with on/off	• with on/off	•
Vibratory indicator under load	•	•	•
Display hold	•	•
Voltage test	•	•	•	•
Indication of polarity	•	•	•
Resistance measurement	•
Switchable load	•	•	•
Single pole test for phase detection	•	•	•	•
Rotary field indicator	•	•	•
Probe tip protection	•	•	•	•
Voltage detection with discharged batteries	•	•	•	•
Electrical torch function	•	•	•
Wear indicator test lead wire	•	•	•	•

Product specifications

Specifications	T90	T110	T130	T150
Voltage AC/DC	12V – 690V	12V – 690V	6V – 690V	6V – 690V
Continuity	0 – 400 kΩ	0 – 400 kΩ	0 – 400 kΩ	0 – 400 kΩ
Frequency	0 / 40 – 400 Hz	0 / 40 – 400 Hz	0 / 40 – 400 Hz	0 / 40 – 400 Hz
Phase rotation	–	100 V – 690 V	100 V – 690 V	100 V – 690 V
Resistance measurement	–	–	–	Up to 1999 Ω
Response Time (LED indicator)	< 0.5 s	< 0.5 s	< 0.5 s	< 0.5 s
200 kΩ input impedance	Current draw 3,5 mA @ 690 V Current draw 1,15 mA @ 230 V	Current draw 3,5 mA @ 690 V Current draw 1,15 mA @ 230 V	Current draw 3,5 mA @ 690 V Current draw 1,15 mA @ 230 V	Current draw 3,5 mA @ 690 V Current draw 1,15 mA @ 230 V
7k Ω input impedance (with load buttons pressed)	–	Current draw 30 mA @ 230 V	Current draw 30 mA @ 230 V	Current draw 30 mA @ 230 V
Safety rating	CAT II 690V CAT III 600V	CAT III 690V CAT IV 600V	CAT III 690V CAT IV 600V	CAT III 690V CAT IV 600V
IP rating	IP54	IP64	IP64	IP64
Power requirement	2-AAA batteries	2-AAA batteries	2-AAA batteries	2-AAA batteries
Net weight	280 g (9.9 oz)	280 g (9.9 oz)	280 g (9.9 oz)	180 g (6.4 oz)
Size (LxWxH)	26 cm x 7 cm x 3.8 cm	26 cm x 7 cm x 3.8 cm	26 cm x 7 cm x 3.8 cm	23 cm x 6.5 cm x 3.8 cm
Warranty	2 years	2 years	2 years	2 years
Country of origin	Great Britain	Great Britain	Great Britain	Great Britain
