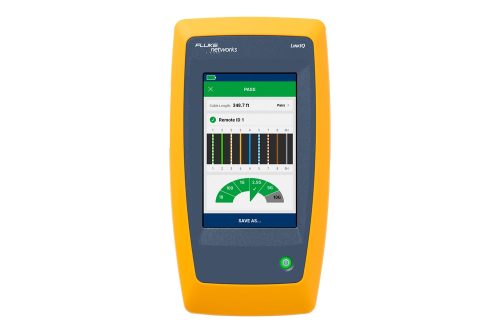

Fluke Networks LIQ-KIT-IE LinkIQ Cable+Network Advanced Industrial Ethernet Kit

Fluke Networks LIQ-KIT-IE LinkIQ Cable+Network Advanced Industrial Ethernet Kit

Rp 92.000.000

Brand: Fluke

Versi Industrial Ethernet (IE) mendukung berbagai konektor industri seperti RJ45, M12X, M12D, dan M8D, sehingga cocok untuk sistem otomatisasi industri seperti EtherNet/IP, PROFINET, dan EtherCAT.

Fluke Networks LIQ-KIT-IE adalah alat tester profesional yang dirancang untuk mengukur, memverifikasi, dan mendiagnosis performa kabel serta jaringan Industrial Ethernet. Perangkat ini mampu menguji kabel hingga kecepatan 10 Gigabit (10GBASE-T) serta mendeteksi berbagai masalah jaringan tanpa memerlukan alat tambahan.

Alat ini tidak hanya menguji kabel (UTP/STP), tetapi juga melakukan diagnostik jaringan aktif, seperti identifikasi switch (nama, IP, port, VLAN), pengujian konektivitas (ping), serta analisis daya PoE hingga Class 8.

FITUR Fluke Nerworks LIQ-KIT-IE

Validasi performa kabel hingga 10Gb (10GBASE-T)
Menguji kemampuan kabel berdasarkan frekuensi untuk memastikan performa jaringan.
Diagnostik jaringan aktif (switch & port)
Menampilkan informasi seperti nama switch, IP address, MAC address, port, VLAN, dan kecepatan jaringan.
Pengujian konektivitas jaringan (Ping test)
Menguji koneksi TCP/IP, gateway, DNS, dan kualitas jaringan secara real-time.
Analisis PoE (Power over Ethernet)
Mendeteksi kelas PoE (0–8), daya tersedia, pasangan kabel, dan melakukan load test hingga ±90W.
Pengukuran panjang kabel & lokasi gangguan
Menentukan panjang kabel hingga ±305 meter dan mendeteksi titik kerusakan (open/short).
Wiremap lengkap (pemetaan kabel)
Mengidentifikasi kesalahan wiring seperti split pair, miswire, atau crossover.
Toner digital & analog (cable tracing)
Memudahkan pelacakan kabel menggunakan probe (IntelliTone).
Port blink (identifikasi port switch)
Menyalakan LED port pada switch untuk menemukan koneksi dengan cepat.
Dukungan Industrial Ethernet
Kompatibel dengan konektor industri seperti RJ45, M12X, M12D, dan M8D serta protokol seperti PROFINET dan EtherNet/IP.
Layar touchscreen warna (user-friendly)
Tampilan intuitif dengan kontrol sentuh untuk kemudahan penggunaan di lapangan.
Penyimpanan & reporting hasil (LinkWare PC)
Bisa menyimpan hingga ±1000 hasil test dan membuat laporan profesional.

SPESIFIKASI Fluke Nerworks LIQ-KIT-IE

Languages supported in UI	English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese, Czech, Danish, Dutch, Finnish, Norwegian, Polish, Swedish, and Turkish
Weight	1 lbs 6 oz (624g)
Battery	Type: Lithium-ion, 3.6 V, 6400 mAh; Life: 8 hours typical; Charge time: 4.5 hours; Charging temperature range: 0 °C to 40 °C
Power Adapter	Input: 100 to 240 V ac ±10%, 50/60Hz; Output: 15 V dc, 2 A maximum; Class II
Host Interface	USB type C
Display	800 x 480 pixels color capacitive multi-touch
Dimensions	22 cm x 11 cm (8.5 in x 4.5 in)
Operating Temperature	0 °C to 45 °C (32 °F to 113 °F)
Storage Temperature	-10 °C to 60 °C (-14 °F to 140 °F)
Operating Relative Humidity	0 % to 90 %, 0 °C to 35 °C 0 % to 70 %, 35 °C to 45 °C
Operating Altitude	4,000 m 3,200 m with ac adapter
Vibration	Random, 2 g, 5 Hz-500 Hz
Drop	1 m drop, 6 sides

Active Network Diagnostics

Feature	Description
Diagnostic Protocols	Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol (CDP), Fast Link Pulses (FLP), Internet Control Messaging Protocol (ICMP), Dynamic Host Configuration Protocol (DHCP)
IP Address Setup	LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP
IP Ping Test Results	Four response time results for target, DNS Server(s), Gateway, plus average and number lost
Nearest Device Diagnostics (If available through diagnostic protocols)	Switch Name / IP + MAC Address, Port Number, VLAN Name, Advertised Data Rates, Advertised Duplex
Power Over Ethernet Compatibility	Ethernet Alliance Certified to IEEE 802.3af/at/bt, Hardware negotiation with signature resistance, Software negotiation with LLDP/CDP
Power Over Ethernet Diagnostics	Advertised Power Class (0-8), Advertised Available Power, Powered Pairs, Diagnostics for both Single and Dual signatures
Power Over Ethernet Measurements	Loaded Voltage (V), Loaded Power (W)
Port Blink	Blink the light of the connected port

Cable Test Specifications

Feature	Description
Test Port	Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs
Commissioning Autotests	10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only. Test Speed: 6 seconds for lengths < 70 m
Cable Types	Balanced twisted-pair cabling; Unshielded twisted-pair; Screened twisted-pair; 2-pair and/or 4-pair; Adapter cables for M8D, M12D, M12X
Wire Map-Only Tests	Document wire map, Length of each pair, Diagnose split pairs, User selectable T568A or T568B, User selectable crossover settings (Straight through, Half-crossover, Full-crossover). Test speed: 1 second for lengths < 120 m
Length (Maximum)	305 m (1000 ft)
Nominal Velocity of Propagation (NVP)	User settable
Tone Generator	Generates digital tones compatible with Fluke Networks IntelliTone probe. Generates analog tones compatible with general analog probes.
Remote ID Locators	Includes on remote identifier with RJ-45, M8D, M12D, and M12X connectors. Optional RJ terminations identify up to 6 additional unique ports or office outlets.

Wi-Fi Test Specifications (LIQ Duo Models Only)

Feature	Description
Supported Wireless Standards	802.11b, 802.11a, 802.11g, 802.11n (Wi-Fi 4), 802.11ac (Wi-Fi 5), and 802.11ax (Wi-Fi 6/6E). Additionally, the tester will report the presence of future standards, such as 802.11be, if the standard’s presence can be decoded in a supported beacon.
Frequencies Supported	Frequencies of channels received and transmitted (where allowed by country regulations): 2.4 GHz band: 2.402 to 2.482 GHz (channel 1 to channel 13); 5 GHz band: 5.170 to 5.330 GHz, 5.490 to 5.730 GHz, 5.735 to 5.835 GHz (channel 36 to channel 165); 6 GHz band: 5.945 to 7.125 GHz (channel 1 to channel 233). NOTE: The tester transmits only on the frequencies allowed in the country where it is sold.
Country certifications	AE, AU, AR, BR, CA, CL, CN, IN, JP, KR, KW, MY, MX, NZ, PH, SG, TH, TW, UK, US, ZA, plus the European Union (Completed or in process. Contact your local Fluke representative for details.)
Network Tests	Number and name (BSSID) of available access points, signal strength, security type, IEEE 802.11 standard supported
Access Point Tests	Networks supported / country code, BSSID, signal strength, band/channel/bandwidth, IEEE 802.11 standards supported, security types, TX/RX rates
Channel Tests	Utilization, Number / signal strength of access points, overlap
