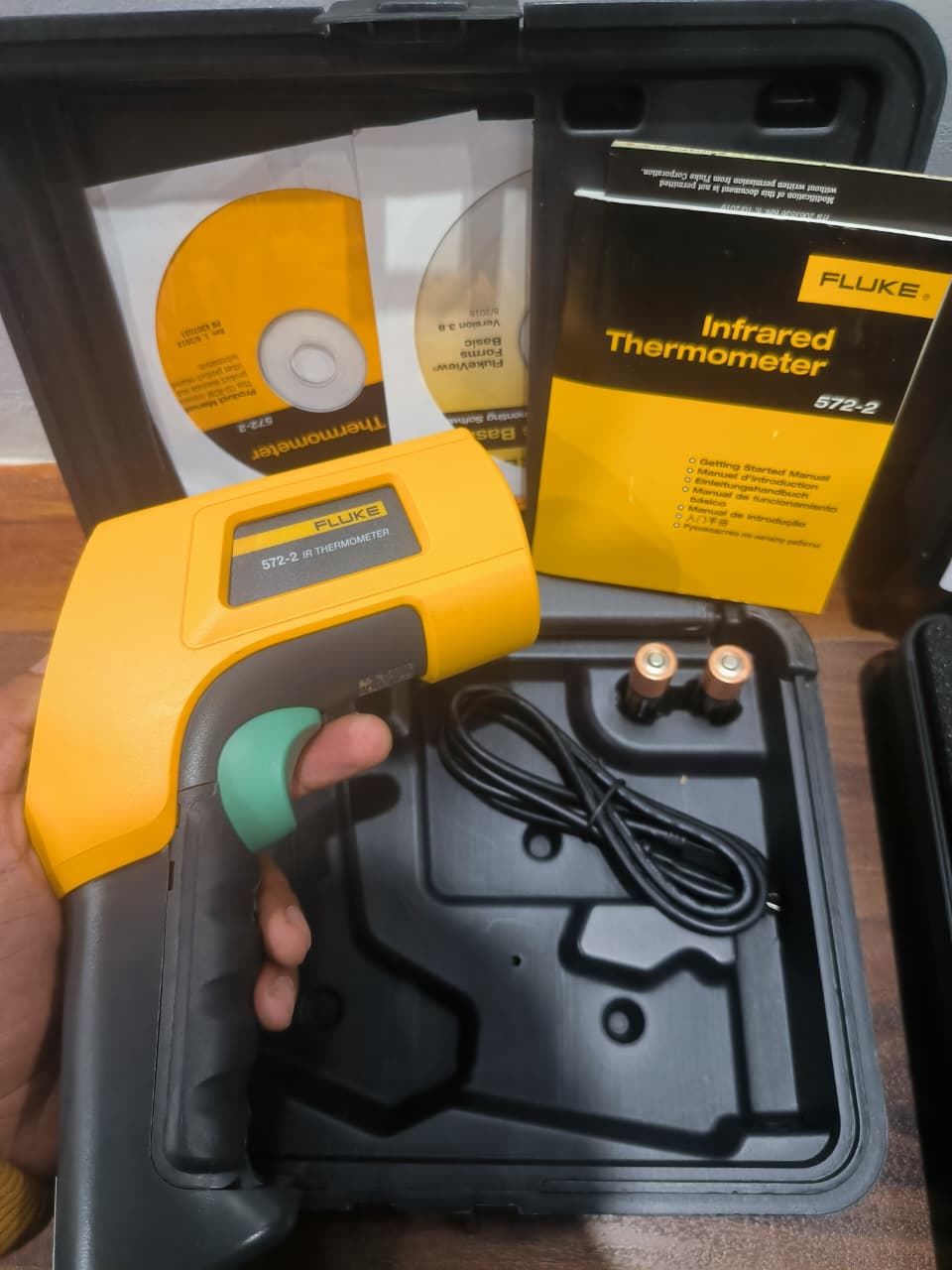

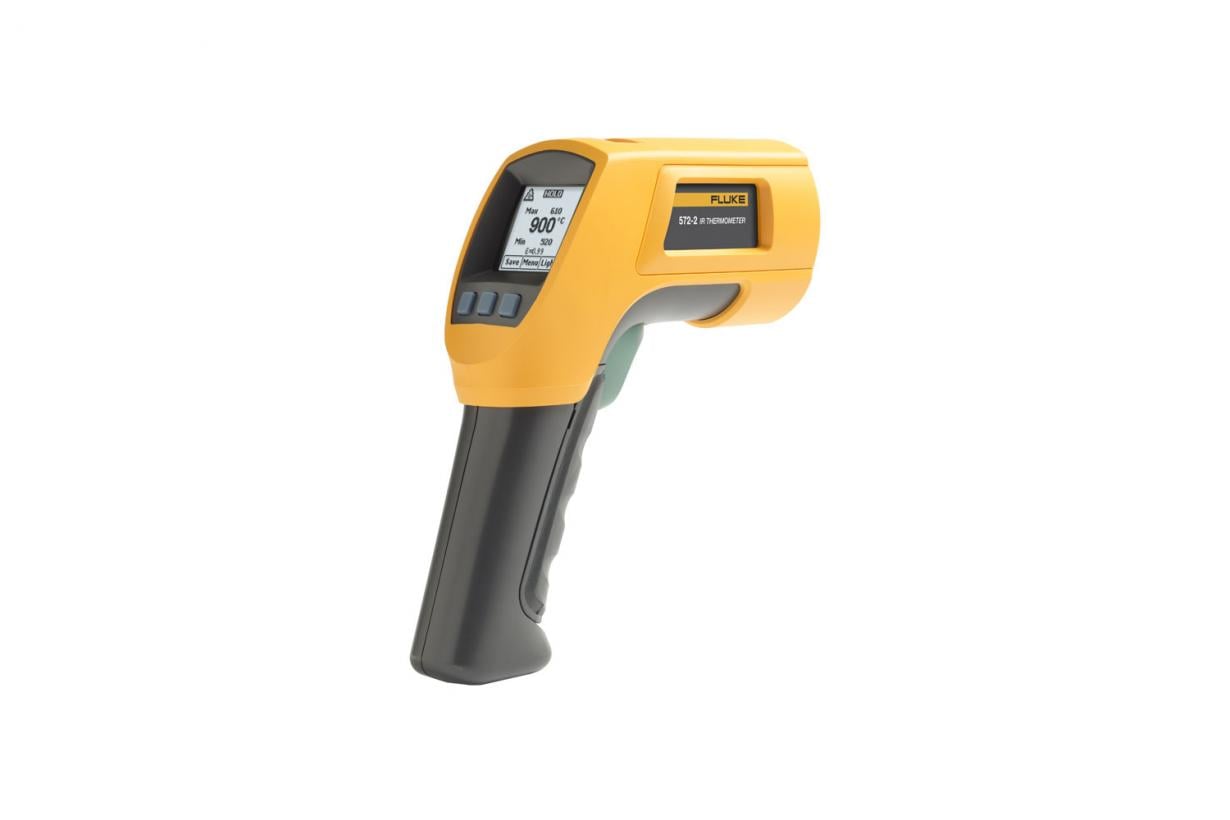

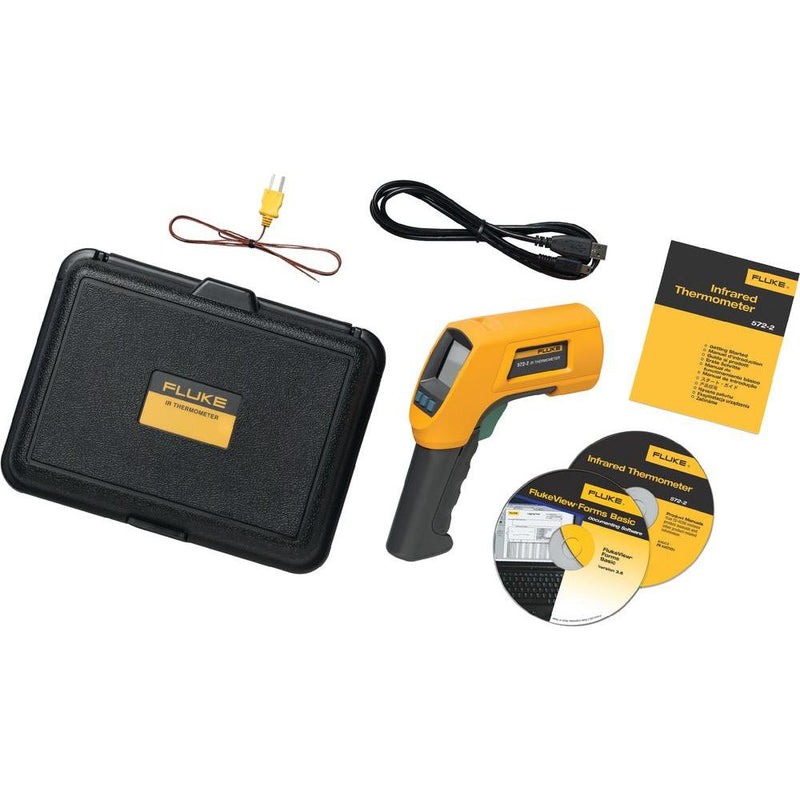

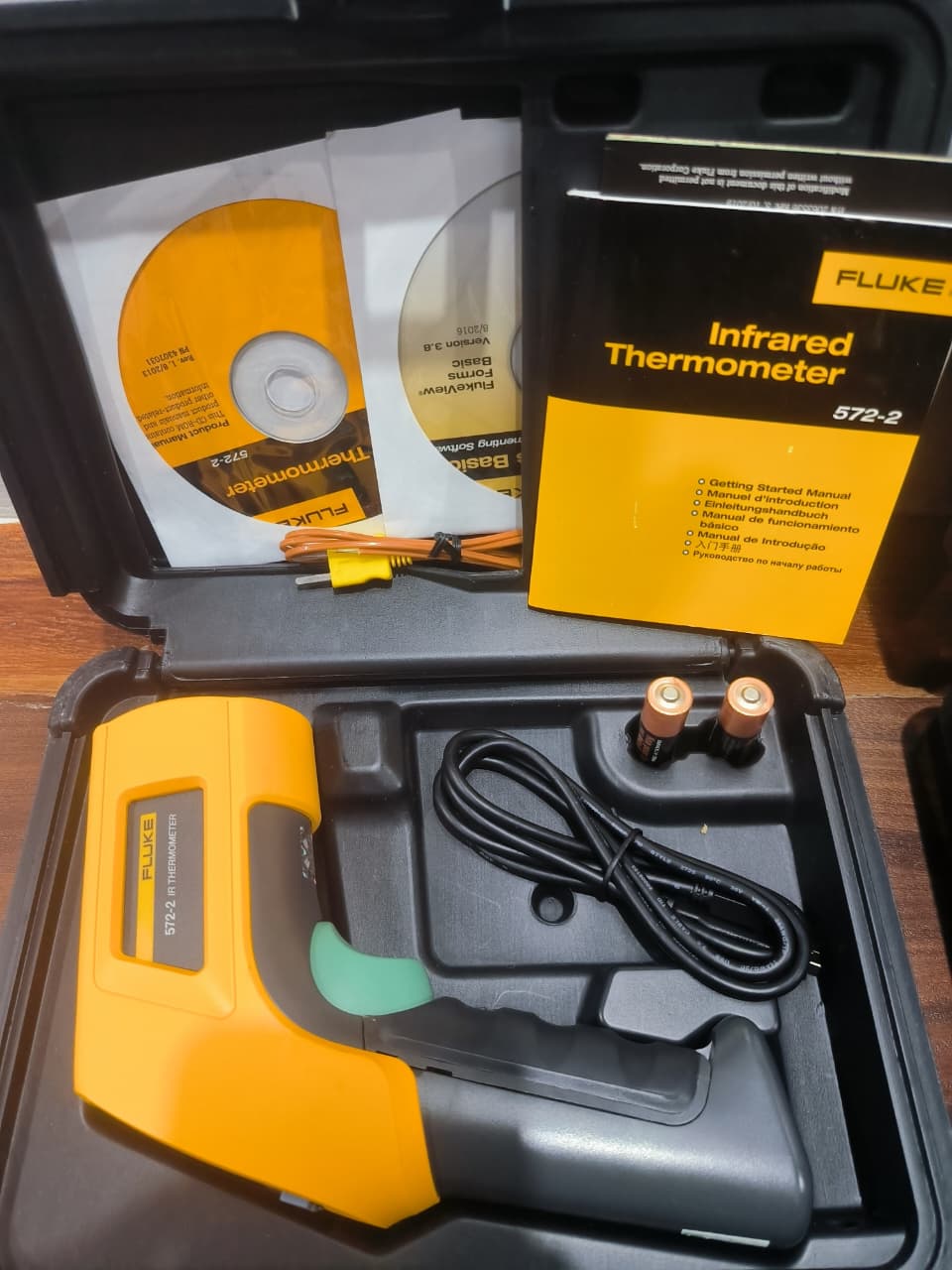

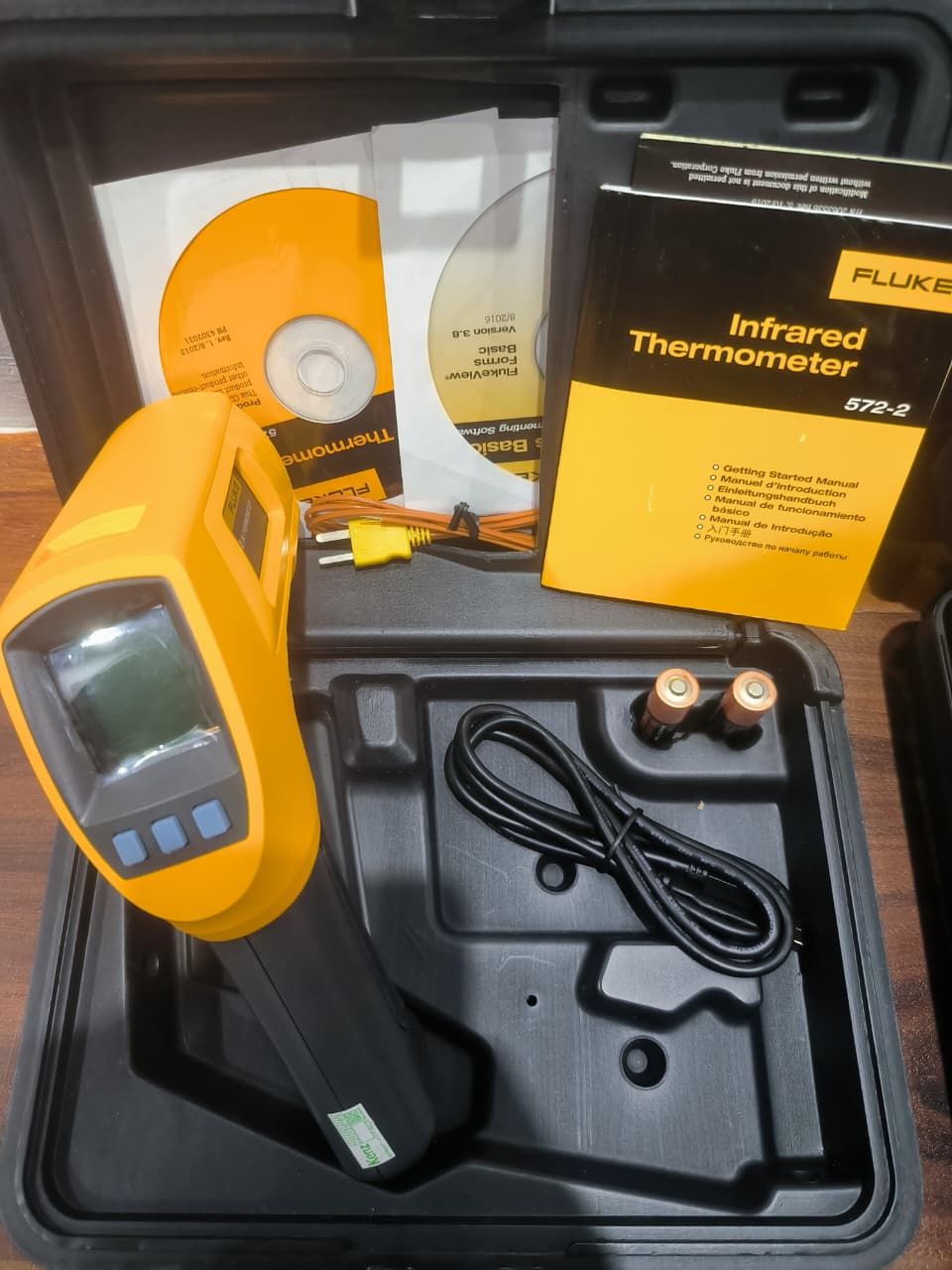

Fluke 572-2 thermometer infrared and contact

Fluke 572-2 thermometer infrared and contact 3

Fluke 572-2 thermometer infrared and contact

Rp 15.500.000

Brand: Fluke

Dengan desain yang tangguh, ergonomis, dan mudah digunakan, Fluke 572-2 sangat cocok digunakan di lingkungan industri seperti metalurgi, pembangkit listrik, manufaktur, dan pemeliharaan mesin.

Fluke 572-2 adalah termometer industri profesional yang dirancang untuk mengukur suhu pada berbagai kondisi ekstrem dengan dua metode sekaligus, yaitu inframerah (non-contact) dan kontak menggunakan probe thermocouple tipe-K.

Secara umum, alat ini memungkinkan pengguna mengukur suhu dari jarak jauh tanpa menyentuh objek yang panas, berbahaya, atau sulit dijangkau, sekaligus menyediakan opsi pengukuran langsung untuk hasil yang lebih akurat.

FITUR Fluke 572-2

Dual measurement (IR + kontak tipe-K) → fleksibel untuk berbagai metode pengukuran
Rentang suhu tinggi (hingga 900°C IR) → cocok untuk aplikasi industri ekstrem
Distance to spot 60:1 + dual laser → akurat dari jarak jauh
Emissivity adjustable + tabel material → hasil lebih presisi
Tampilan lengkap (MAX, MIN, AVG, DIF) → analisis suhu lebih detail
Alarm suhu (audio & visual) → peringatan cepat saat melewati batas
Data logging hingga 99 data → penyimpanan hasil ukur
Display backlight & multi-bahasa → mudah digunakan di berbagai kondisi
Kompatibel thermocouple tipe-K → bisa pakai berbagai probe standar
Respon cepat (<500 ms) → pengukuran cepat dan efisien

SPESIFIKASI Fluke 572-2

Infrared temperature range	-30°C to 900°C (-22°F to 1652°F)
IR accuracy (calibration geometry with ambient temperature 23°C ± 2°C)	≥ 0°C: ± 1°C or ± 1% of the reading, whichever is greater
	≥ -10°C to < 0°C: ±2°C
	< -10°C: ±3°C
	≥ 32°F: ± 2°F or ± 1% of the reading, whichever is greater
	≥ 14°F to < 32°F: ±4°F
	< 14°F: ±6°F
IR repeatability	±0.5% of reading or ±0.5°C (±1°F), whichever is greater
Display resolution	0.1°C / 0.1°F
Distance: Spot	60:1 (calculated at 90% energy)
Minimum spot size	19 mm
Laser sighting	Offset dual laser, output < 1 mW
Spectral response	8 μm to 14 μm
Response time (95%)	< 500 ms
Emissivity	Digitally adjustable from 0.10 to 1.00 by 0.01 or via built-in table of common materials
Contact Measurements
K-type thermocouple input temperature range	-270°C to 1372°C (-454°F to 2501°F)
K-type thermocouple input accuracy (with ambient temperature 23°C ± 2°C)	< -40°C: ±(1°C + 0.2° / 1°C)
	≥ -40°C: ±1% or 1°C, whichever is greater
	< -40°F: ±(2°F + 0.2° / 1°F)
	≥ -40°F: ±1% or 2°F, whichever is greater
K-type thermocouple	0.1°C / 0.1°F
K-type thermocouple repeatability	±0.5% of reading or ±0.5°C (±1°F), whichever is greater
Measurement Options
Hi/Low alarms	Audible and two-color visual
Min/Max/Avg/Dif	Yes
Switchable celsius and fahrenheit	Yes
Backlight	Two levels, normal and extra bright for darker environments
Probe input	K-type thermocouple simultaneous display of probe and IR temperature
Trigger lock	Yes
Data storage	99 points
Display	Dot matrix 98 x 96 pixels with function menus
Communication	USB 2.0
K-Type Thermocouple Specifications
Measurement range (bead probe)	-40°C to 260°C (-40°F to 500°F)
Accuracy	±1.1°C (±2.0°F) from 0°C to 260°C (32°F to 500°F). Typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F)
Cable length	1 m (40 in) K-type thermocouple cable with standard miniature thermocouple connector and bead termination
General Specifications
Safety and compliance	IEC 60825-1 FDA Laser Class II IEC 61326-1 CE Complaint CMC # 01120009
Operating temperature	0°C to 50°C (32°F to 122°F)
Storage temperature	-20°C to 60°C (-4°F to 140°F)
Relative humidity	10% to 90% RH non-condensing up to 30°C (86°F)
Operating altitude	2000 meters above mean sea level
Weight	0.322 kg (0.7099 lb)
Power	2 AA batteries
Battery life	8 hours with laser and backlight on; 100 hours with laser and backlight off, at 100% duty cycle (thermometer continuously on)
