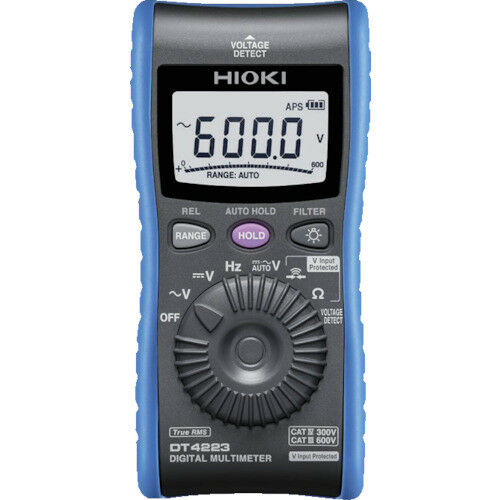

Digital Multimeter HIOKI DT4223

Rp 2.800.000

Brand: Hioki

Hioki DT4200 Digital Multimeter Series terdiri dari beragam meter mulai dari profesional hingga industri hingga meter saku, menghadirkan tingkat respons super cepat dan fitur keselamatan yang membawa pengujian listrik ke tingkat yang lebih tinggi. Hioki DT4223 adalah multimeter digital berukuran saku yang menampilkan fungsi pencegahan kesalahan perjalanan pemutus sirkuit untuk meningkatkan keamanan pengujian dan detektor tegangan bawaan, ideal untuk inspeksi listrik.

SPESIFIKASI

DC VOLTAGE RANGE	600.0 mV to 600.0 V, 4 ranges, Basic accuracy: ±0.5 % rdg. ±5 dgt.
AC VOLTAGE RANGE	6.000 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz – 1 kHz Basic accuracy 40 – 500 Hz : ±1.0 % rdg. ±3 dgt. (True RMS, crest factor 3)
RESISTANCE RANGE	600.0 Ω to 60.00 MΩ, 6 ranges Basic accuracy: ±0.9 % rdg. ±5 dgt.
CAPACITANCE RANGE	N/A
FREQUENCY RANGE	AC V measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges Basic accuracy: ±0.1 % rdg. ±2 dgt.
CONTINUITY CHECK	Continuity threshold [ON]: 25 Ω or less (buzzer sound), [OFF]: 245 Ω or more Response time: 0.5 ms or more
DIODE TEST	N/A
VOLTAGE DETECTION	80 V to 600 V AC
OTHER FUNCTIONS	Circuit breaker false trip prevention function, Filter function, Display value hold, Relative display, Auto-power save
DISPLAY	Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
DISPLAY REFRESH RATES	5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s )
POWER SUPPLY	LR03 alkaline batteries ×4, Continuous use: 35 hours (backlight OFF)
DIMENSIONS AND MASS	72 mm (2.83 in)W × 149 mm (5.87 in)H× 38 mm (1.50 in)D,190 g (6.7 oz) (including batteries and holster)
ACCESSORIES	Test lead DT4911 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×1
