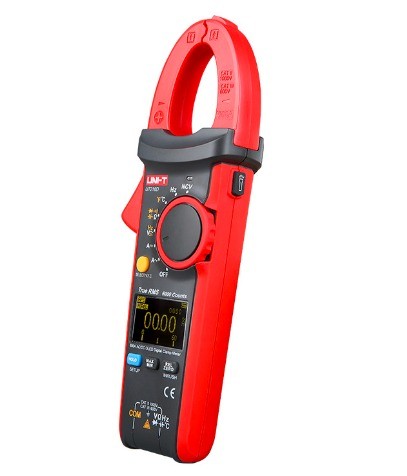

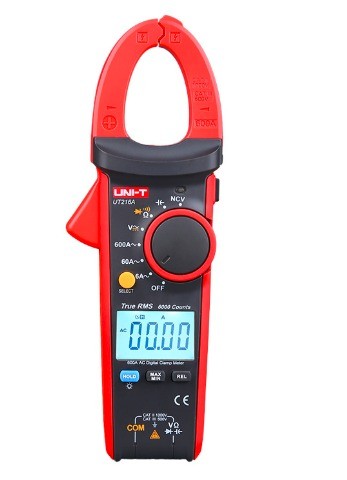

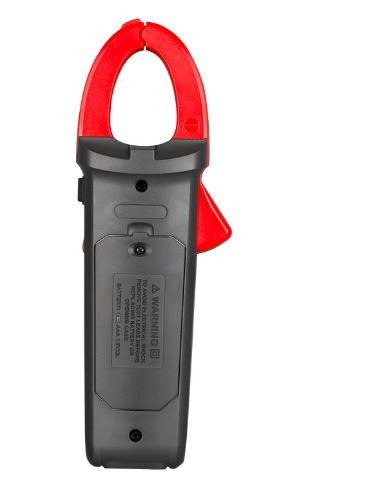

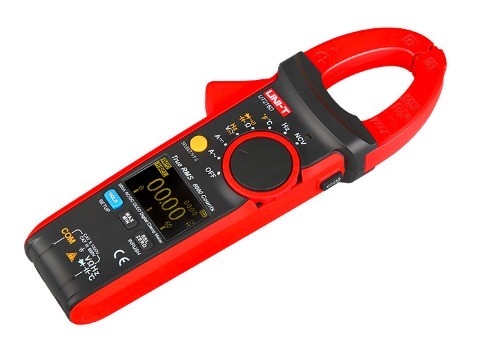

Digital Clamp Meter 600A True RMS UNI-T UT216B 1

Digital Clamp Meter 600A True RMS UNI-T UT216B

Rp 2.800.000

Brand: UNI-T

Clamp meter digital seri UT216 dirancang untuk mengukur arus frekuensi tinggi (hingga 400Hz) di ruang server, sistem TI, dll. Desain injeksi gandanya memberikan pegangan yang lebih nyaman bagi pengguna dan meningkatkan daya tahan. Layar 6000 hitungan pada UT216 juga memberikan pembacaan yang lebih akurat bagi pengguna.

FITUR UNI-T UT216B

True RMS
Rentang otomatis, laju pengambilan sampel 3 kali/detik
Mode MAKS/MIN/Relatif
Senter
NCV, pengujian tegangan AC nonkontak

SPESIFIKASI UNI-T UT216B

Specifications	Range	UT216A	UT216B	UT216C	UT216D
AC current (A)	600A	±(2.5%+5)	±(2.5%+5)	±(2.5%+5)	±(2.5%+5)
AC current frequency response		50/60Hz	40~400Hz	40~400Hz	40~400Hz
DC current (A)	600A			±(2.5%+5)	±(2.5%+5)
AC voltage (V)	750V	±(1.2%+5)	±(1.2%+5)	±(1.2%+5)	±(1.2%+5)
AC voltage frequency response		40~400Hz	40~400Hz	40~400Hz	45~400Hz
DC voltage (V)	1000V	±(0.8%+1)	±(0.8%+1)	±(0.8%+1)	±(0.8%+1)
Resistance (Ω)	60MΩ	±(1%+2)	±(1%+2)	±(1%+2)	±(1%+2)
Capacitance (F)	60mF	±(4%+5)	±(4%+5)	±(4%+5)	±(4%+5)
Frequency (Hz)	10Hz~1MHz		±(0.1%+4)	±(0.1%+4)	±(0.1%+4)
Temperature	-40°C~1000°C			±(2%+5)	±(2.5%+3)
Temperature	-40°F~1832°F			±(2%+10)	±(2.5%+6)
Features
Display count		6000	6000	6000	6000
Auto range		√	√	√	√
Jaw opening		30mm	30mm	30mm	30mm
True RMS		√	√	√	√
Diode	Around 3.0V	√	√	√	√
V.F.C.			√	√	√
NCV		√	√	√	√
Data hold		√	√	√	√
Relative mode		√	√	√	√
MAX/MIN		√	√	√	√
LCD backlight		√	√	√
Inrush current				√	√
OLED display					√
Analog bar graph				61	21
Flashlight		√	√	√	√
Auto power off		√	√	√	√
Continuity buzzer		√	√	√	√
Low battery indication	≤3.6V	√	√	√	√
Input protection		√	√	√	√
Input impedance for DCV	≥10MΩ	√	√	√	√
General Characteristics
Power	1.5V battery (R03) x 3
Display	38mm x 24mm
Product color	Red and grey
Product net weight	UT216A: 280g; UT216B/C/D: 231.7g
Product size	220mm x 75mm x 40mm
Standard accessories	Batteries, test leads, point contact temperature probe (UT216C/UT216D)
Standard individual packing	Gift box, carrying bag, English manual
Standard quantity per carton	40pcs
Standard carton measurement	485mm x 345mm x 385mm
Standard carton gross weight	UT216A: 20.6kg; UT216B: 19.3kg; UT216C: 20.1kg; UT216D: 20.3kg
