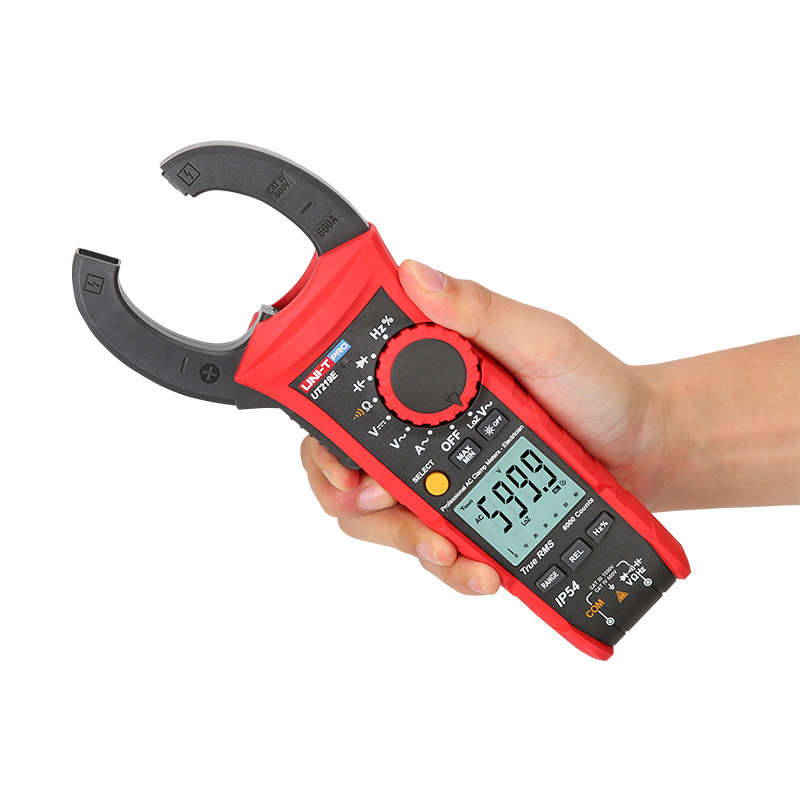

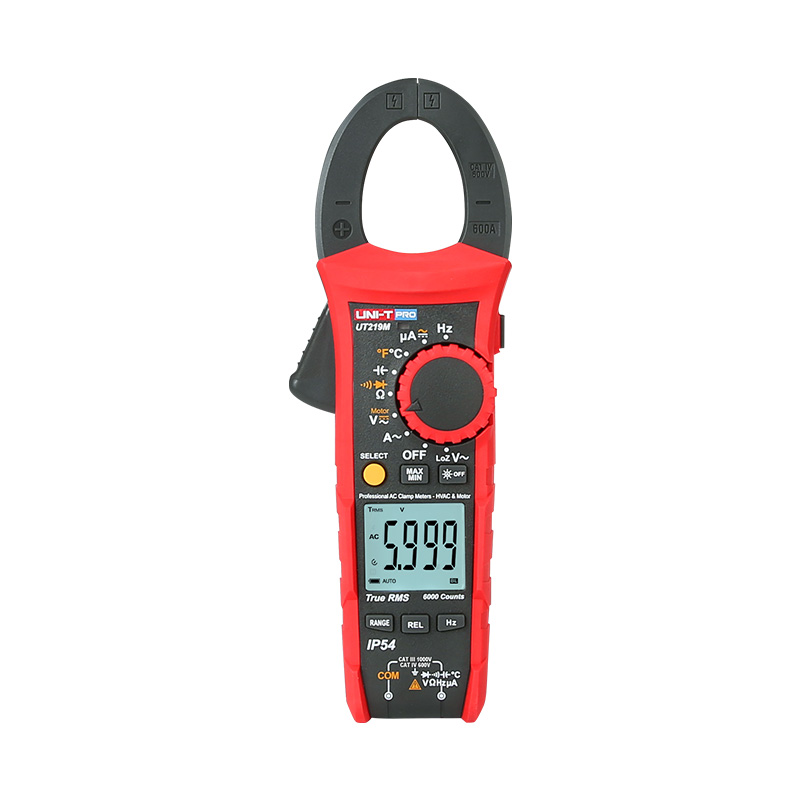

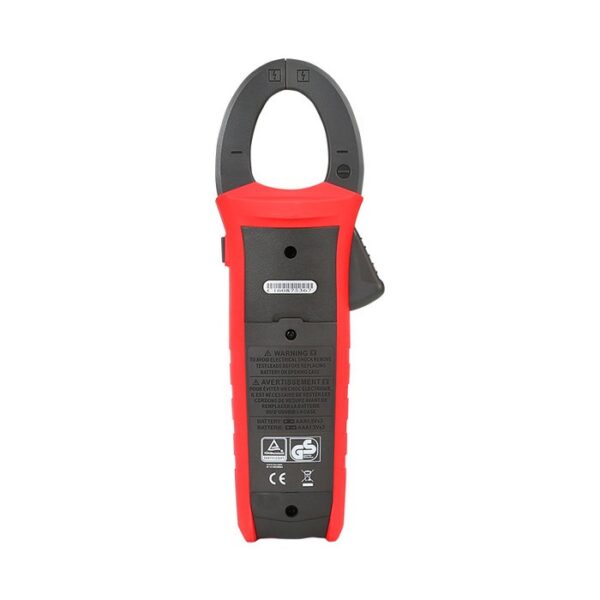

Clamp Meter CAT IV 600V Professional UNI-T UT219M

Clamp Meter CAT IV 600V Professional UNI-T UT219M

Rp 4.700.000

Brand: UNI-T

Seri UT219 adalah penjepit meter profesional true RMS 600A dengan peringkat CAT IV 600V. Alat ini dirancang secara industri dengan peringkat IP54 dan mampu menahan uji jatuh dari ketinggian 2 meter untuk pengukuran di lingkungan yang keras. Seri ini cocok untuk teknisi listrik profesional, HVAC/R, dan teknisi servis motor.

FITUR UNI-T UT219M

Jangkauan otomatis/manual/Mode ZERO
True RMS/daya mati otomatis
MAX/MIN
IP54/tahan jatuh 2m
Mode penyimpanan data/relatif
Senter dan lampu latar otomatis
Indikasi baterai lemah

SPESIFIKASI UNI-T UT219M

Specifications	Range	UT219E	UT219M	UT219DS
AC current (A)	600A	±(1.8%+6)	±(1.8%+6)	±(1.8%+6)
DC current (A)	600A			±(1.8%+6)
AC voltage (V)	1000V	±(1%+6)	±(1%+6)	±(1%+6)
DC voltage (V)	1000V	±(0.6%+3)	±(0.6%+3)	±(0.6%+3)
LoZ ACV	600V	±(2.5%+6)	±(2.5%+6)	±(2.5%+6)
Resistance (Ω)	60MΩ	±(1%+3)	±(1%+3)	±(1%+3)
Capacitance (F)	60mF	±(4%+7)	±(4%+7)	±(4%+7)
Frequency (Hz)	10Hz~10MHz	±(0.1%+6)
Frequency (Hz)	600Hz~40MHz		±(0.1%+5)	±(0.1%+6)
Duty cycle	0.1%~99.9%	±(2.6%+7)		±(2.6%+7)
Temperature	-40~1000℃		±(2%+5℃)	±(2%+5℃)
Temperature	-40~1832℉		±(2%+9℉)	±(2%+9℉)
Features
Display count		6000	6000	6000
Auto/Manual range		√	√	√
Jaw opening		33mm	33mm	33mm
True RMS		√	√	√
AC current frequency response		40Hz~400Hz	40Hz~400Hz	40Hz~400Hz
AC voltage frequency response		40Hz~400Hz	40Hz~400Hz	40Hz~1kHz
3-phase motor sequence test	600V		√	√
Low pass filter	1kHz, 3db attenuation			√
V+A displays voltage and current at the same time				√
Diode test		3V	3V	3V
Measurement sampling rate		3 times/s	3 times/s	5 times/s
Analog bar sampling rate		10 times/s		20 times/s
Analog bar		31 segment		31 segment
Display interface (LCD)		Single	Single	Dual
Auto power off/MAX/MIN		√	√	√
Low battery indication		√	√	√
Data hold (H)/Relative mode (REL)		√	√	√
ZERO mode		√	√	√
Function selection (SELECT)		√	√	√
Auto backlight/2m drop test		√	√	√
IP rating		IP54	IP54	IP54
Input impedance	≥10MΩ	√	√	√
General Characterisitics
Power	1.5V battery (R03) x 3
Display	35mm x 31mm
Product color	Red and grey
Product net weight	310g
Product size	234.6mm x 82mm x 47mm
Standard accessories	Test leads, batteries, carrying bag, PC software CD, point contact temperature probe (UT219M/UT219DS)
Standard individual packing	Gift box, blister, English manual
Standard quantity per carton	10pcs
Standard carton measurement	490mm x 295mm x 330mm
Standard carton gross weight	UT219E: 8kg; UT219M/UT219DS: 8.2kg
