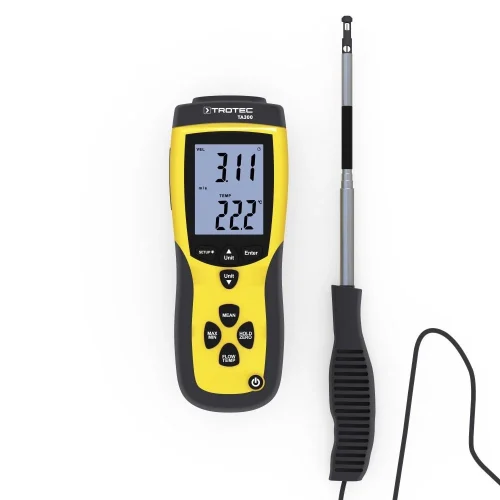

Anemometer TROTEC TA300

Rp 7.000.000

Brand:

Trotec

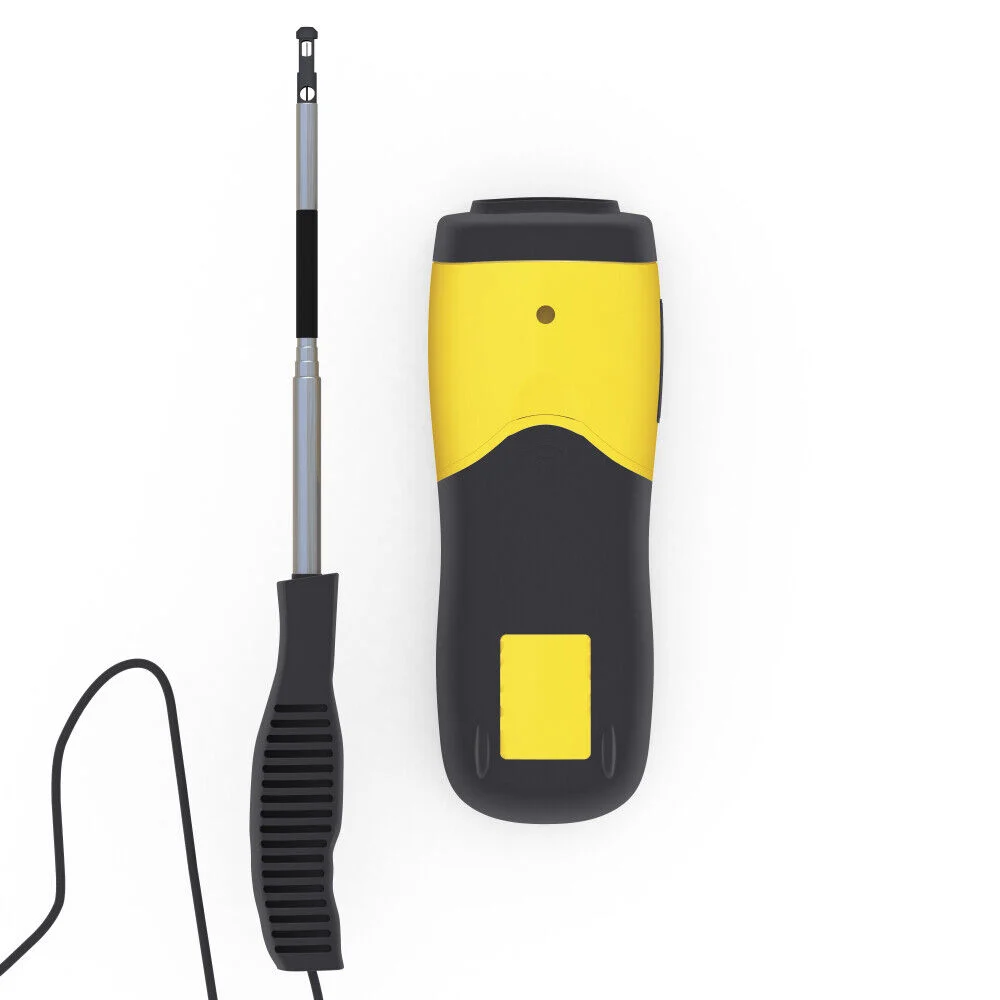

Trotec TA300 adalah anemometer kabel panas profesional untuk penentuan kecepatan udara, suhu udara, dan aliran udara volumetrik secara tepat.Untuk pengukuran di saluran atau lokasi terpencil, probe genggam dari TA300 dapat diperluas secara bertahap hingga panjang efektif satu meter.

Kombinasi sensor hot-wire presisi yang kuat dan mikroprosesor canggih dengan pemrosesan sinyal memastikan hasil pengukuran yang cepat dan tepat untuk setiap aplikasi dengan hasil yang ditunjukkan bahkan di lingkungan dengan pencahayaan buruk pada layar LCD indikasi ganda yang menyala pada TA300.

Fitur-fitur

Pengujian sistem pemanas, ventilasi atau pendingin udara
komisioning
tugas pemeliharaan
Pengukuran kecepatan dan suhu udara pada saluran keluar udara dan celah ventilasi
Sertifikasi lingkungan kritis
pengukuran saluran
Tes kebocoran pada jendela atau pintu

Spesifikasi

Air flow rate [m/s]
	Min. measuring range \| Air flow rate [m/s]	0.1
	Max. measuring range \| Air flow rate [m/s]	25
	Accuracy \| Air flow rate [%]	5
	Accuracy ± \| Air flow rate [m/s]	1
	Resolution \| Air flow rate [m/s]	0.01
	Measuring principle \| Air flow rate	Hot-wire
Air flow rate [mph]
	Min. measuring range \| Air flow rate [mph]	0.2
	Max. measuring range \| Air flow rate [mph]	55.8
	Accuracy \| Air flow rate [%]	5
	Accuracy ± \| Air flow rate [mph]	1
	Resolution \| Air flow rate [mph]	0.1
Air flow rate [km/h]
	Min. measuring range \| Air flow rate [km/h]	0.3
	Max. measuring range \| Air flow rate [km/h]	90
	Accuracy \| Air flow rate [%]	5
	Accuracy ± \| Air flow rate [km/h]	1
	Resolution \| Air flow rate [km/h]	0.1
Air flow rate [kn]
	Min. measuring range \| Air flow rate [kn]	0.2
	Max. measuring range \| Air flow rate [kn]	48.5
	Accuracy \| Air flow rate [%]	5
	Accuracy ± \| Air flow rate [kn]	1
	Resolution \| Air flow rate [kn]	0.1
Air flow rate [ft/min]
	Min. measuring range \| Air flow rate [ft/min]	20
	Max. measuring range \| Air flow rate [ft/min]	4,925
	Accuracy \| Air flow rate [%]	5
	Accuracy ± \| Air flow rate [ft/min]	1
	Resolution \| Air flow rate [ft/min]	1
Air volume flow [m³/min]
	Min. measuring range \| Air volume flow [m³/min]	0.001
	Max. measuring range \| Air volume flow [m³/min]	99,999
	Resolution [m³/min] \| Air volume flow	0.001 – 100
Air volume flow [ft³/min]
	Min. measuring range \| Air volume flow [ft³/min]	0.001
	Max. measuring range \| Air volume flow [ft³/min]	99,999
	Resolution [ft³/min] \| Air volume flow	0.001 – 100
Air temperature [°C]
	Min. measuring range \| Air temperature [°C]	0
	Max. measuring range \| Air temperature [°C]	50
	Accuracy ± \| Air temperature [°C]	1
	Resolution [°C]	0.1
Display
	LCD
Interfaces
	USB
Housing design
	Plastics
	Ø probe tip/base	10 mm/ 12 mm
Power supply
	Internal (battery)
	External (USB)
	Battery type	1 x 9V battery
Ambient conditions
	Operation – min. temperature [°C]	0
	Operation – max. temperature [°C]	50
Dimensions
	Length (packaging excluded) [mm]	210
	Width (packaging excluded) [mm]	75
	Height (packaging excluded) [mm]	50
Weight
	(packaging excluded) [kg]	0.28
